Egenskaber

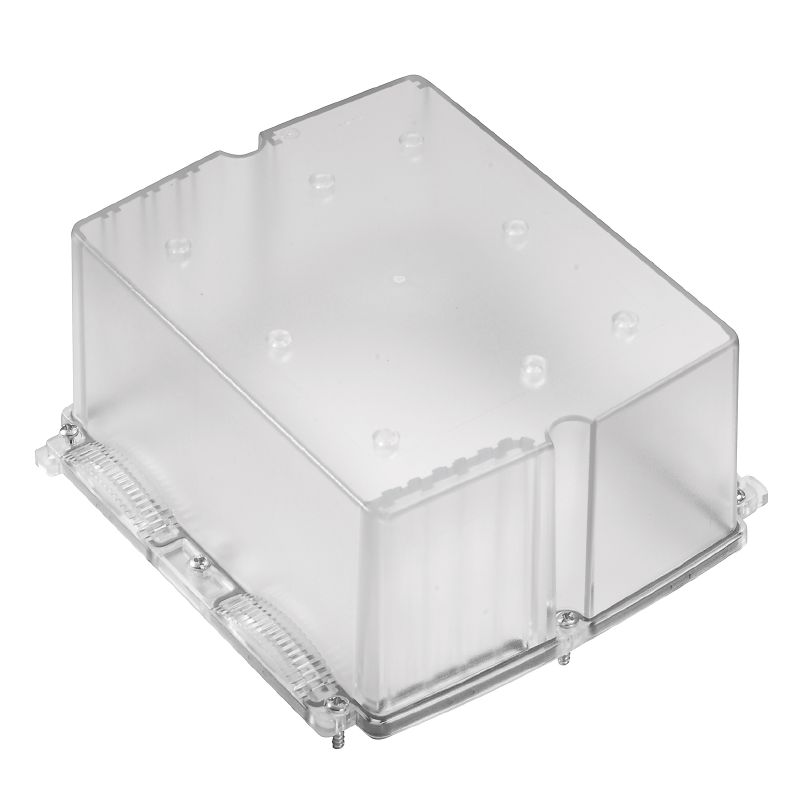

| Version | FieldPower® enclosures, 181 mm, 192 mm, 87 mm, IP65, in complete state, Polycarbonate, Transparent |
| Order No. | 2486990000 |
| Type | BG GHDE 10P HO GK PT6 |
| GTIN (EAN) | 4050118497595 |
| Qty. | 5 Styk |
| Depth | 87 mm |
| Depth (inches) | 3,425 inch |
| Height | 181 mm |
| Height (inches) | 7,126 inch |
| Width | 192 mm |
| Width (inches) | 7,559 inch |
| Net weight | 366,99 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Polycarbonate |
| Enclosure material | Polycarbonate |
| Silicone | No |
| Colour | Transparent |
| Protection degree |
IP65
in complete state |
| UL 94 flammability rating | V-0 |
| Torque for lid screws | 2 Nm |
| Lid attachment | TX20 screws |
| Installation advice | Lid screws included |
| Approval/Certificate/Document of Conformity |
[UL Certificate FieldPower® size 1 and 2 (10P) lid and base variants](https://mdcop.weidmueller.com/mediadelivery/asset/900_253033)
[Manufacturer's Declaration FieldPower® Enclosure parts](https://mdcop.weidmueller.com/mediadelivery/asset/900_263559) |
| Product Change Notification | [Technical change to FieldPower® (GHDE)](https://mdcop.weidmueller.com/mediadelivery/asset/900_298869) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate No. (UL) | E256877 |
