CC-DT 15/49 K MC NE BL
CC-DT 15/49 K MC NE BL

CC-DT 15/49 K MC NE BL

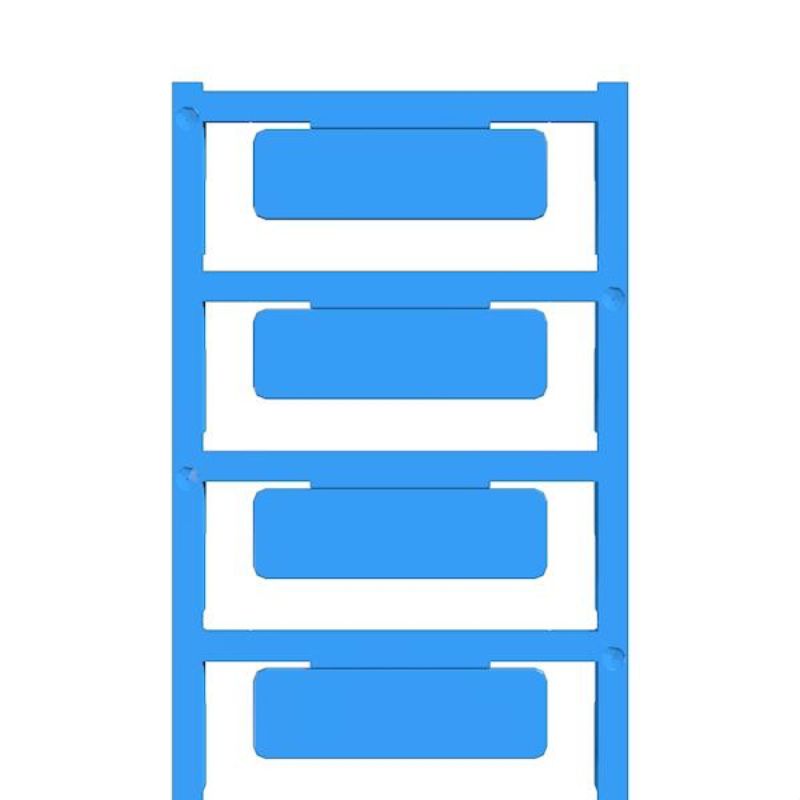

ClipCard, Device markers, 15 x 49 mm, blue

Produkt ID 3008650000
Download datablad Product Downloads
Tilbehør 1 Anvendte produkter 2
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Device markers Classifications

General ordering data

Versione
ClipCard, Device markers, 15 x 49 mm, blue
Référence
3008650000
Type
CC-DT 15/49 K MC NE BL
GTIN (EAN)
4099986910997
Qty.
40 Styk

Dimensions and weights

깊이
1,2 mm
Depth (inches)
0,047 inch
Wysokość
15 mm
Height (inches)
0,591 inch
Width
49 mm
Width (inches)
1,929 inch
Net weight
2,561 g

Temperatures

Operating temperature range
-40...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.022 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
blue
Detectible in accordance with Rondotest
4.7 mm Al
Halogen
No
Operating temperature range
-40...60 °C
Operating temperature range, max.
60 °C
Operating temperature range, min.
-40 °C
Printed characters
neutral
Recommended industries
Food processing industry
UL 94 flammability rating
HB
Version
pluggable
Width
49 mm
Клей
Double-sided adhesive tape

Device markers

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
