Eigenschappen

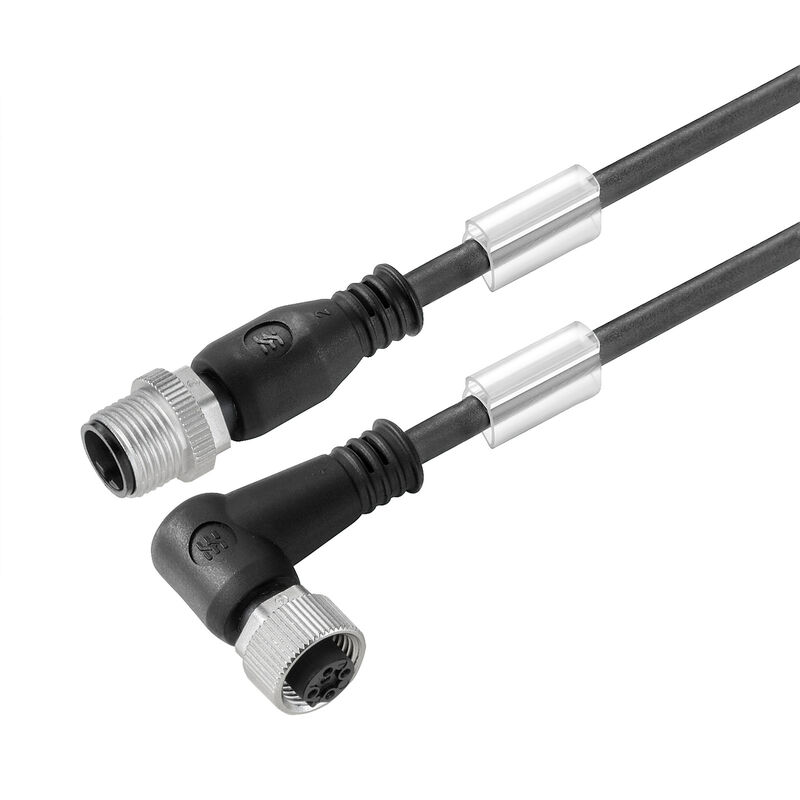

| Version | Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 2.5 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes |
| Order No. | 1925350250 |
| Type | SAIL-M12GM12W-4-2.5V |
| GTIN (EAN) | 4032248875795 |
| Qty. | 1 items |
| Net weight | 114,4 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Cable length | 2,5 m |
| Colour coding |
brown
white blue black |
| Configurable cable length | Yes |
| Core cross-section | 0,34 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Irradiation crosslinked | No |
| Number of poles | 4 |
| Outer cladding in accordance with UL AWM style | 2464 (80 °C / 300 V) |
| Outside diameter | 5.3 mm ± 0.2 mm |
| Resistant to welding beads | No |
| Sheath material | PVC |
| Sheathing colour | black |
| Shielded | No |
| Suitable for cable carriers | No |
| Temperature range, moving | -5...80 °C |
| Temperature range, stationary | -30...80 °C |
| Torsion resistance | 0 °/m |
| Welding spark resistance | No |
| Coding | A-coded |
| Connection thread | M12 / M12 |
| Contact surface | Gold-plated |
| Housing main material | PUR |
| Insulation strength | 108 Ω |
| jumpered | No |
| LED | No |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree |
IP67
IP68 when fully mounted IP65 IP66 |
| Rated current | 4 A |
| Rated voltage | 250 V |
| Shock and vibration proof according to | Section B |
| Temperature range of housing | -25…+85 °C |
| Threaded ring material | Diecast zinc |
| Tightening torque | M12: 0.8 - 1.2 Nm |
| Version | pin, straight - socket, 90° |
| Insulation strength | 108 Ω |
| Rated voltage | 250 V |
| Certificate no. (cULus) | E307231 |
| Connector standard | IEC 61076-2-101 |
| Connector standard | IEC 61076-2-101 |
| Shock and vibration proof according to | Section B |
| Plug left | M12, A-coded, IP69, male contact, straight, Plastic, unshielded |
| Plug right | M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded |
| Product Change Notification |
[DE - Technische Änderung zu M12 Gewindering mit 6-Kant](https://mdcop.weidmueller.com/mediadelivery/asset/900_88623)
[EN - Technical change to M12 nut with additional hexagonal mounting](https://mdcop.weidmueller.com/mediadelivery/asset/900_88624) [Technical change to 3 to 5-pole unshielded M12 cord sets](https://mdcop.weidmueller.com/mediadelivery/asset/900_318301) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 9.0 | EC001855 |
| ECLASS 9.0 | 27-06-03-11 |
| ECLASS 9.1 | 27-06-03-11 |
| ECLASS 10.0 | 27-06-03-11 |
| ECLASS 11.0 | 27-06-03-11 |
| ECLASS 12.0 | 27-06-03-11 |
| ECLASS 13.0 | 27-06-03-11 |
| ECLASS 14.0 | 27-06-03-11 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E307231 |
