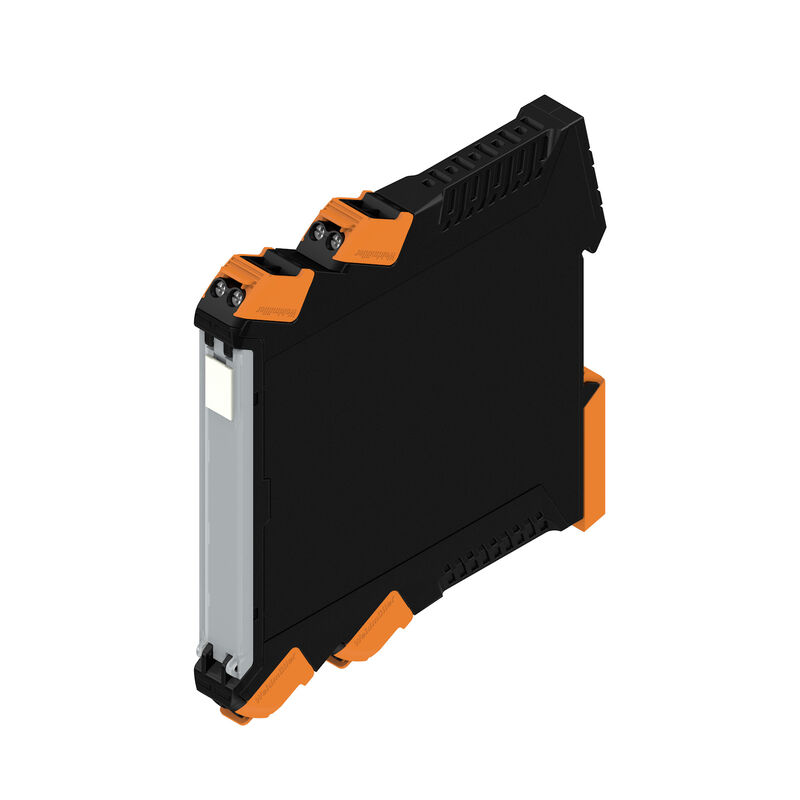

Product image
SAMPLE CH20M12 2/2 ASSEMBLED

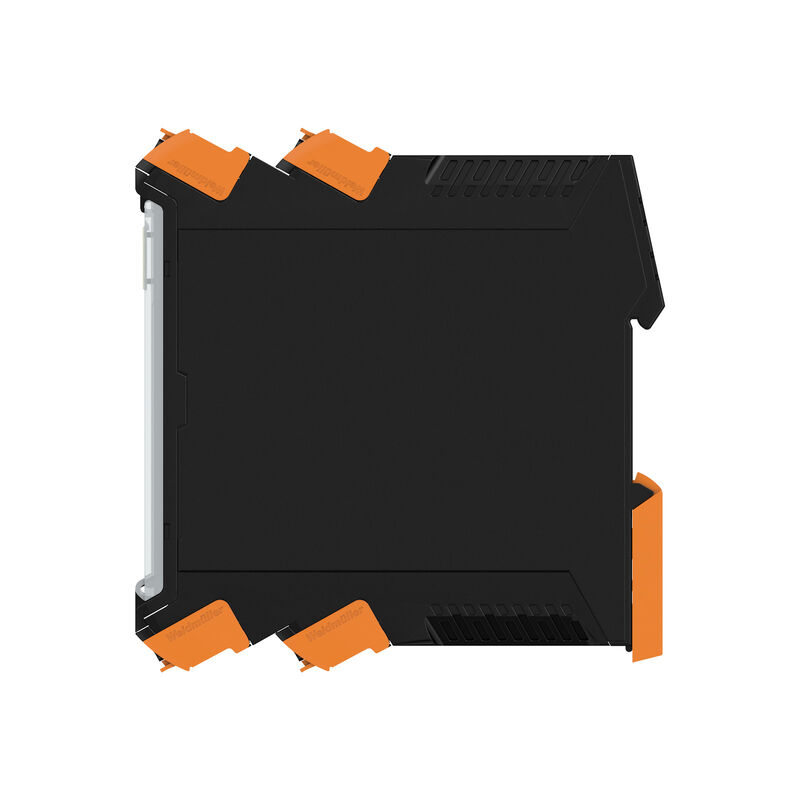

Product image
SAMPLE CH20M12 2/2 ASSEMBLED

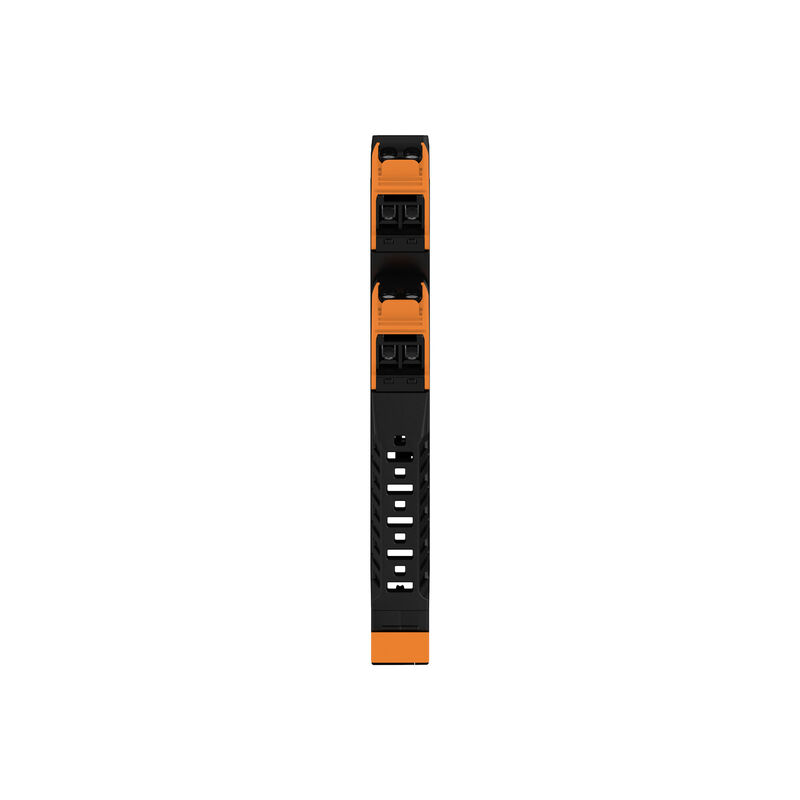

Product image
SAMPLE CH20M12 2/2 ASSEMBLED
Dimensioned drawing

SAMPLE CH20M12 2/2 ASSEMBLED

Electronics housing sample, OMNIMATE Housing - series CH20M black, Reference product CH20M12 housing, completely mounted, including 4 socket connectors, mounted, Enclosure set, Connection technology, Width: 12.5 mm

Ürün No. 1111630000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 18 Münferit parçalar 8 İlgili ürünler 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data acc. to IEC Anyagadatok Allmänna data Design - IN requirements Assembly properties Housing properties Connectable coducteurs Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Electronics housing sample, OMNIMATE Housing - series CH20M black, Reference product CH20M12 housing, completely mounted, including 4 socket connectors, mounted, Enclosure set, Connection technology, Width: 12.5 mm
Order No.
1111630000
Type
SAMPLE CH20M12 2/2 ASSEMBLED
GTIN (EAN)
4032248889945
Qty.
1 adet

Dimensions and weights

Depth
114 mm
Depth (inches)
4,488 inch
Height
117,2 mm
Height (inches)
4,614 inch
Width
12,5 mm
Width (inches)
0,492 inch
Length
0 mm
Net weight
101,3 g

Temperatures

Installation temperature
-25 °C...85 °C
Humidity
5 - 93% rel. humidity, Tu = 40°C, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Jmenovitý proud, max. počet pólů (Tu=20 °C)
10 A
Jmenovitý proud, max. počet pólů (Tu=40 °C)
9 A
Jmenovité napětí pro třídu přepětí / stupeň znečištění II/2
400 V
Jmenovité napětí pro třídu přepětí / stupeň znečištění III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/2
4 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/3
4 kV
Clearance, min.
3 mm
Creepage distance, min.
3,2 mm

Anyagadatok

Basic material
Plastica
PA 66 GF 30
Comparative Tracking Index (CTI)
400 ≤ CTI <600
Insulating material
PA 66 GF 30
Insulating material group
II
Surface finish
untreated
UL 94 flammability rating
V-0

Allmänna data

Colour
black
Colour chart (similar)
RAL 9011
Encapsulation option
No
Protection degree
IP20

Design - IN requirements

PCB thickness
1,6 mm
Tolerance for the PCB shape
±0.1 mm
Tolerance of circuit board thickness
±0.15 mm

Assembly properties

Number of connection levels
3
Number of PCBs, max.
1
Number of ventilation openings
0
Number of poles
8
Cross-connection
No
Type of contact to PCB
Solder connection, direct
Type of connection
Clamping yoke

Housing properties

Tapa abatible montable
Yes
Marker integrateable
Yes
Safety lock
sealable
Cut out as preperation for functional port integrated
No
Color of clip-on foot
orange
Cross-connection
No
Number of connection levels
3
Number of poles
8

Connectable coducteurs

Stripping length
8 mm
Blade size
0.6 x 3.5 mm
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,5 Nm
Clamping range, min.
0,13 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Stranded, max. H07V-R
2,5 mm²
dutinkou s plastovým límcem, , DIN 46228 pt 4, min.
0,25 mm²
dutinkou s plastovým límcem, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Max. clamping range
2,5 mm²

Important note

Product information
Circuit board contour, restricted zones, and other information for the design in of the circuit board can be found in the category connection technology under the corresponding male headers in the downloads.

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-03-01
ECLASS 15.0
27-19-03-01
