SL-SMT 3.50/18/180F 1.5SN BK BX

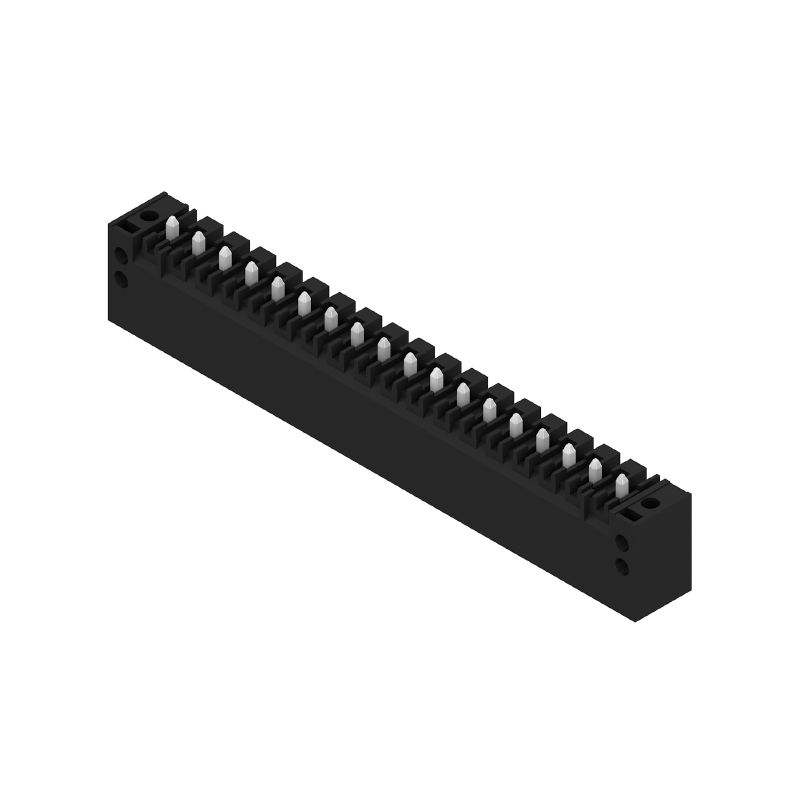

Product image
SL-SMT 3.50/18/180F 1.5SN BK BX
Product image
SL-SMT 3.50/18/180F 1.5SN BK BX
Dimensional drawing

SL-SMT 3.50/18/180F 1.5SN BK BX

PCB plug-in connector, male header, Flange, THT/THR solder connection, 3.50 mm, Number of poles: 18, 180°, Solder pin length (l): 1.5 mm, tinned, black, Box

Product ID 1761122001
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 10 Is contradeel van 11 Verwante producten 32
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
PCB plug-in connector, male header, Flange, THT/THR solder connection, 3.50 mm, Number of poles: 18, 180°, Solder pin length (l): 1.5 mm, tinned, black, Box
Order No.
1761122001
Type
SL-SMT 3.50/18/180F 1.5SN BK BX
GTIN (EAN)
4032248131693
Qty.
24 items
Product data
IEC: 320 V / 15 A
UL: 300 V / 10 A
Packaging
Box

Dimensions and weights

Depth
7,5 mm
Depth (inches)
0,295 inch
Height
12,6 mm
Height (inches)
0,496 inch
Height of lowest version
11,1 mm
Width
70 mm
Width (inches)
2,756 inch
Nettó tömeg
5 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0,062 kg CO2 eq.

System specifications

Product family
OMNIMATE Signal - series BL/SL 3.50
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
Outgoing elbow
180°
Number of poles
18
Number of solder pins per pole
1
Solder pin length (l)
1,5 mm
Solder pin length tolerance
0 / -0.3 mm
솔더핀 크기
d = 1.2 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
솔더 구멍 직경(D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
2,3 mm
Sablon nyílás átmérő
2,1 mm
L1, mm
59,5 mm
L1 in inches
2,343 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe plugged/ back-of-hand-safe unplugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP10
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging cycles
25
Plugging force/pole, max.
6 N
Pulling force/pole, max.
6 N
Tightening torque
  • Torque type:
    Mounting screw, PCB
  • Usage information:
    • Tightening torque:
      • min.:
        0,1 Nm
      • max.:
        0,15 Nm
    • Recommended screw:
      • Part number:
        1610740000

Material data

Szigetelőanyag
LCP GF
Color
black
Colour chart (similar)
RAL 9011
Isolierstoffgruppe
IIIa
Kúszóútképzési összehasonlítási szám (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Materiál kontaktu
Cu-alloy
Contact surface
tinned
Struttura a strati del collegamento a saldare
2...3 µm Ni / 5...7 µm Sn
Dugaszolható csatlakozás rétegszerkezete
2...3 µm Ni / 5...7 µm Sn
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
15 A
Rated current, max. number of poles (Tu=20°C)
12 A
Rated current, min. number of poles (Tu=40°C)
13 A
Jmenovitý proud, max. počet pólů (Tu=40 °C)
10 A
Névleges feszültség a II/2 túlfeszültség osztályhoz / szennyezés mértékéhez
320 V
Névleges feszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
160 V
Névleges feszültség a III/3 túlfeszültség osztályhoz / szennyezés mértékéhez
160 V
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia II/2
2,5 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 100 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1176845
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Rated current (Use group D / CSA)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Märkspänning (användargrupp D / UL 1059)
300 V
Märkström (användargrupp B / UL 1059)
10 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
342 mm
VPE width
135 mm
VPE height
20 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • For additional mechanical support for male connectors with screw flange (…F), we recommend an additional cable gland with fastening screws (sheet metal screw ISO 1481-ST 2.2x4.5 C or ISO 7049-ST 2.2x4.5 C – see Accessories). Cable gland only permitted before soldering.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
