Eigenschappen
| Version | TERMSERIES, Solid-state relay, Rated control voltage: 10…32 V DC , Rated switching voltage: 12...275 V AC, Continuous current: 1 A, Plug-in connection |
| Order No. | 1132290000 |
| Type | SSR 24VDC/MAX.240VAC 1A |
| GTIN (EAN) | 4050118049381 |
| Qty. | 20 items |
| Depth | 15 mm |
| Depth (inches) | 0,591 inch |
| Height | 29 mm |
| Height (inches) | 1,142 inch |
| Width | 12,7 mm |
| Width (inches) | 0,5 inch |
| Net weight | 5,2 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -20 °C...60 °C |
| MTTF | 1.150 a |
| REACH SVHC | / |
| Rated control voltage | 10…32 V DC |
| Nominal control current | 3…13 mA |
| Status indicator | No |
| Rated switching voltage | 12...275 V AC |
| Continuous current | 1 A |
| Rated switching current | 1 A |
| Inrush current | 15 A / 10 ms |
| Switch-on delay | ≤ 10 ms |
| Switch-off delay | ≤ 10 ms |
| Voltage drop at max. load | ≤ 1 V |
| Leakage current | <1.5 mA |
| Min. switching current | 50 mA |
| Protective circuit, load side | RC element |

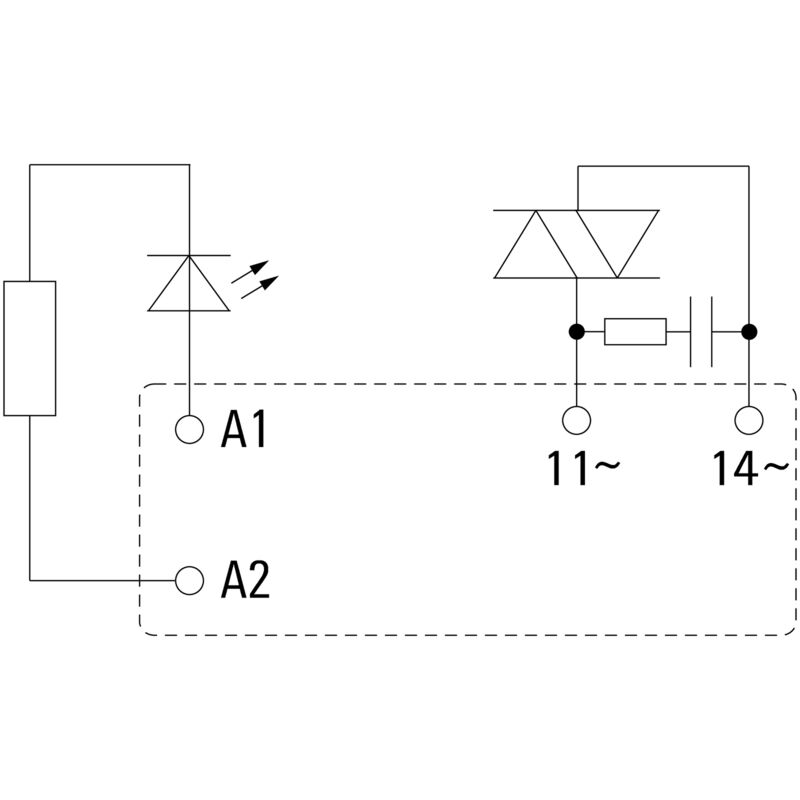

| Contact type | 1 NO contact (Triac (zero-cross switch)) |
| Output voltage frequency range | 50 / 60 Hz |
| Colour | black |
| Dielectric strength for control side - load side | 2.5 kVeff |
| Wire connection method | Plug-in connection |
| Pitch in mm (P) | 5 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60501) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1132290000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1132290000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1132290000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001504 |
| ETIM 7.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| ETIM 9.0 | EC001504 |
| ECLASS 9.0 | 27-37-16-04 |
| ECLASS 9.1 | 27-37-16-04 |
| ECLASS 10.0 | 27-37-16-04 |
| ECLASS 11.0 | 27-37-16-04 |
| ECLASS 12.0 | 27-37-16-04 |
| ECLASS 13.0 | 27-37-16-04 |
| ROHS | Conform |
