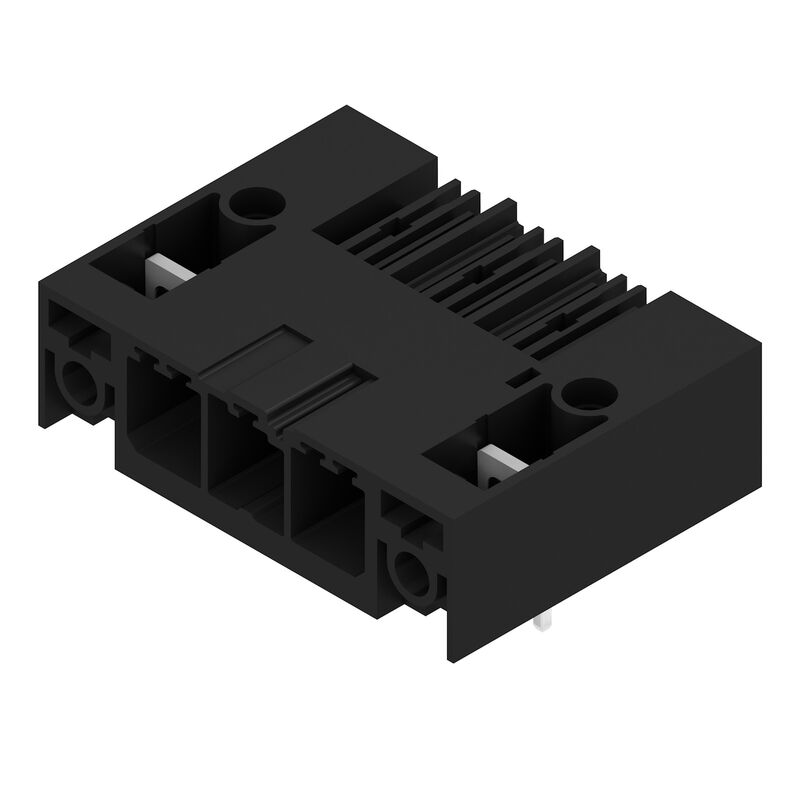

SV-SMT 7.62HP/03/90LSF 2.6SN BK BX
Product image

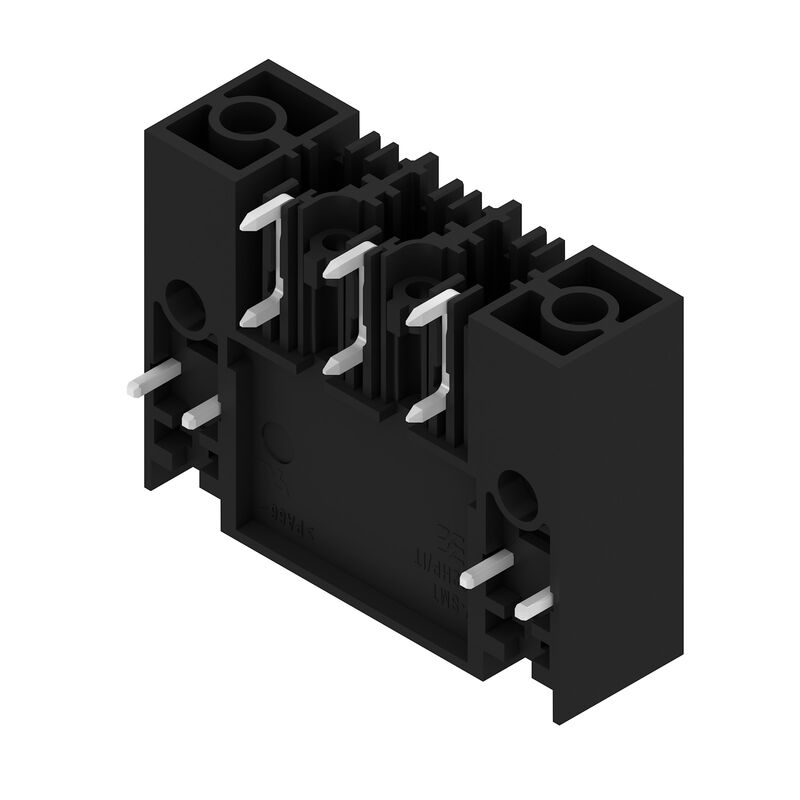

SV-SMT 7.62HP/03/90LSF 2.6SN BK BX
Dimensional drawing

SV-SMT 7.62HP/03/90LSF 2.6SN BK BX

Dette produkt er snart ikke længere tilgængeligt.

PCB plug-in connector, male header, Solder screw flange, THT/THR solder connection, 7.62 mm, Number of poles: 3, 90°, Solder pin length (l): 2.6 mm, tinned, black, Box

Produkt ID 2499690000
Download datablad Engineering-support Produktdownloads
Tilbehør 1
Godkännanden General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to UL 1059 Packing Important note Classifications

Godkännanden

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, Solder screw flange, THT/THR solder connection, 7.62 mm, Number of poles: 3, 90°, Solder pin length (l): 2.6 mm, tinned, black, Box
Order No.
2499690000
Type
SV-SMT 7.62HP/03/90LSF 2.6SN BK BX
GTIN (EAN)
4050118513103
VPE
48 Styk
Product data
IEC: 1000 V / 41 A
UL: 300 V / 40.5 A
Packaging
Box
Delivery status
This article will no longer be available in the future.
Última fecha de pedido
/Date(1806444000000)/

Dimensions and weights

Depth
28,3 mm
Tiefe (inch)
1,114 inch
Height
14 mm
Height (inches)
0,551 inch
Height of lowest version
11,4 mm
Width
38,1 mm
Width (inches)
1,5 inch
Net weight
6,6 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Power - series BV/SV 7.62HP
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
7,62 mm
Paso en pulgadas (P)
0,3 "
Angulo de salida
90°
Number of poles
3
Number of solder pins per pole
2
Solder pin length (l)
2,6 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Solder pin dimensions
0.8 x 1.0 mm
Forrasztószem lyukátmérő (D)
1,5 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1, mm
15,24 mm
L1 in inches
0,6 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
safe to back of hand above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
IP20
when fully mounted
Volume resistance
2.00 mΩ
Can be coded
Yes
Tightening torque for screw flange, min.
0,2 Nm
Tightening torque for screw flange, max.
0,3 Nm
Plugging cycles
25
Plugging force/pole, max.
12 N
Pulling force/pole, max.
7 N

Material data

Insulating material
PA 9T
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
I
Índice de resistencia al encaminamiento eléctrico (CTI)
≥ 600
Odpor izolace
≥ 10⁸ Ω
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 4...6 µm Sn matt
Dugaszolható csatlakozás rétegszerkezete
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

Rated data acc. to IEC

przetestowane zgodnie z normą
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
41 A
Rated current, max. number of poles (Tu=20°C)
41 A
Rated current, min. number of poles (Tu=40°C)
41 A
Rated current, max. number of poles (Tu=40°C)
41 A
Tensión nominal con categoría de sobretensión/grado de polución II/2
1.000 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
630 V
Rated voltage for surge voltage class / pollution degree III/3
630 V
Névleges lökőfeszültség a II/2 túlfeszültség osztályhoz / szennyezés mértékéhez
6 kV
Névleges lökőfeszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s with 420 A
Clearance, min.
6,9 mm
Creepage distance, min.
9,6 mm

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Tension nominale (groupe d'utilisation D / UL 1059)
300 V
Rated voltage (Use group F / UL 1059)
744 V
Névleges áram (B felhasználási csoport/ UL 1059)
40,5 A
Rated current (Use group C / UL 1059)
40,5 A
Rated current (Use group D / UL 1059)
10 A
Rated current (Use group F / UL 1059)
40,5 A
Clearance distance, min.
6,9 mm
Creepage distance, min.
9,6 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
338 mm
VPE width
130 mm
VPE height
33 mm
Surface resistance
Rs = 109 - 1012 Ω

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
