Ominaisuudet

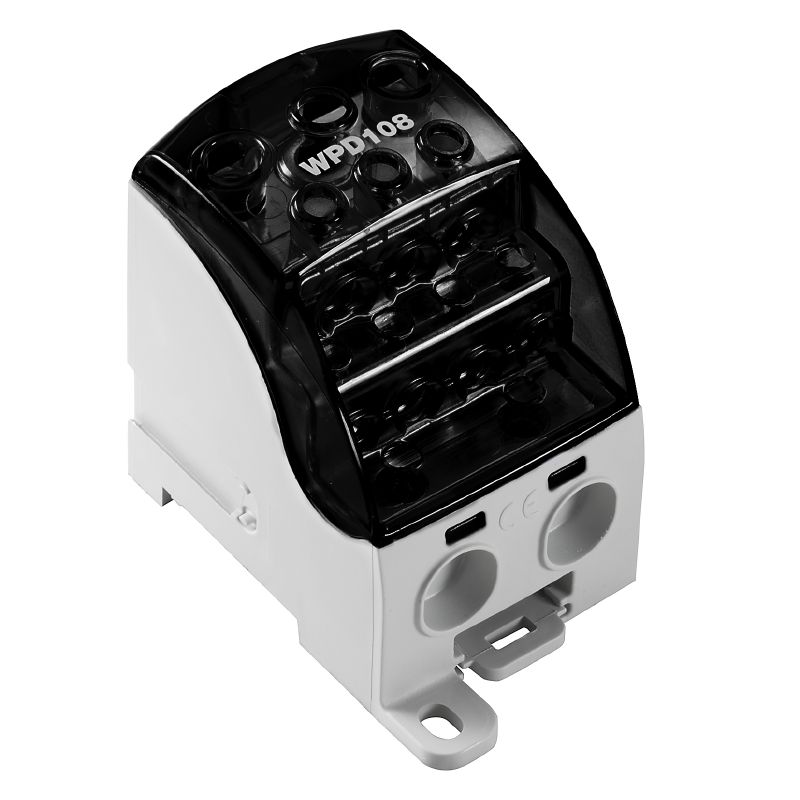

| Version | Potential distributor terminal, Screw connection, black, 120 mm², 400 A, 1000 V, Number of connections: 10, Number of levels: 1 |
| Order No. | 2725380000 |
| Type | WPD 108 1X120/2X35+3X25+4X16 BK |
| GTIN (EAN) | 4050118796506 |
| Qty. | 1 items |
| Depth | 77 mm |
| Depth (inches) | 3,031 inch |
| 95 mm | |
| Height (inches) | 3,74 inch |
| Width | 51,1 mm |
| Width (inches) | 2,012 inch |
| Net weight | 480 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e1c310ef-6b67-4efa-80a6-d307472f4de9 |
| Material | Wemid |
| Colour | black |
| UL 94 flammability rating | V-0 |
| Certificate No. (ATEX) | CNEX16ATEX0005U |
| Certificate No. (IECEX) | IECEXCNEX16.0005U |
| Max. voltage (ATEX) | 1100 V |
| Current (ATEX) | 250 A |
| Wire cross section max. (ATEX) | 120 mm² |
| Max. voltage (IECEX) | 1100 V |
| Current (IECEX) | 250 A |
| Version | Screw connection |
| End cover plate required | No |
| Number of potentials | 1 |
| Number of levels | 1 |
| Number of clamping points per level | 2 |
| Number of potentials per tier | 1 |
| Levels cross-connected internally | Yes |
| Rail |
Mounting plate
TS 35 |
| N-function | Yes |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Open sides | closed |
| Type of mounting | Snap-on |
| Connection type, additional connection | Screw connection |
| Clamping range, max. | 120 mm² |
| Clamping range, min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 120 mm² |
| Connection direction | on side |
| Number of connections | 10 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | kcmil 250 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 0 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 95 mm² |
| Wire connection cross-section, solid core, max. | 120 mm² |
| Certificate number (cCSAus) | 70128467 |
| Number of poles | 1 |
| Rail |
Mounting plate
TS 35 |
| Standards |
IEC 60947-7-1
UL 1059 |
| Wire connection cross section AWG, max. | kcmil 250 |
| Wire connection cross section AWG, min. | AWG 16 |
| Rated cross-section | 120 mm² |
| Rated voltage | 1 000 V |
| Rated AC voltage | 1 000 V |
| Rated DC voltage | 1 500 V |
| Rated current | 400 A |
| Current at maximum wires | 400 A |
| Standards |
IEC 60947-7-1
UL 1059 |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Certificate No. (cURus) | E60693 |
| Product information | The socket complies with flammability class V-2 according to UL94. |
| Approval/Certificate/Document of Conformity |
[Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_105798)
[UKCA Ex Attestation of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_253936) [CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89230) [UKCA Ex Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_253013) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165218) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_249784) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2725380000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2725380000) |
| User Documentation |
[DATA SHEET WPD 108](https://mdcop.weidmueller.com/mediadelivery/asset/900_89313)
[Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919) [Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| ECLASS 14.0 | 27-25-01-19 |
| Approvals |       |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate No. (cURus) | E60693 |
