Ominaisuudet

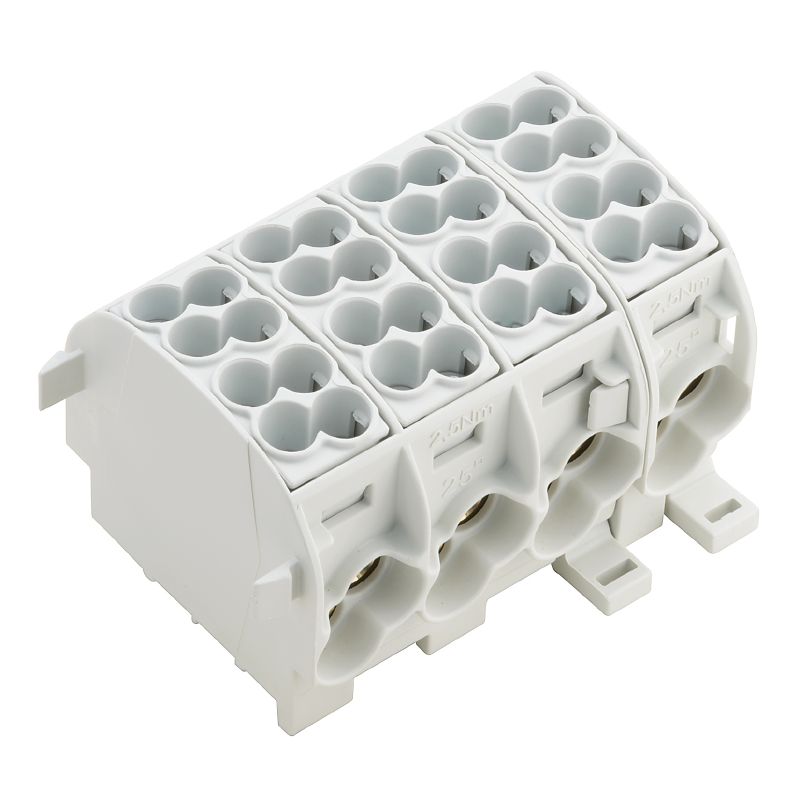

| Version | Potential distributor terminal, Screw connection, Light Grey, 25 mm², 152 A, 1000 V, Number of connections: 8, Number of levels: 1 |
| Order No. | 1561800000 |
| Type | WPD 401 2X25/2X16 4XGY |
| GTIN (EAN) | 4050118366549 |
| Qty. | 1 items |
| Depth | 49,3 mm |
| Depth (inches) | 1,941 inch |
| Height | 55,7 mm |
| Height (inches) | 2,193 inch |
| Width | 81,5 mm |
| Width (inches) | 3,209 inch |
| Net weight | 271 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | −50 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9b5f0838-1f0b-4c14-9fc7-3f5e6ee75be2 |
| Material | Wemid |
| Colour | Light Grey |
| UL 94 flammability rating | V-0 |
| Version | Screw connection |
| End cover plate required | No |
| Number of potentials | 4 |
| Number of levels | 1 |
| Number of clamping points per level | 8 |
| Number of potentials per tier | 4 |
| Levels cross-connected internally | No |
| PE connection | No |
| Rail | TS 35 |
| N-function | No |
| PE function | No |
| PEN function | No |
| Explosion-tested version | Yes |
| Installation advice | Terminal rail / mounting plate |
| Open sides | closed |
| Snap-on | Yes |
| Type of mounting | Snap-on |
| With snap-in pegs | Yes |
| Connection type, additional connection | Screw connection |
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 1,5 mm² |
| Connection cross-section, stranded, max. | 25 mm² |
| Connection direction | on side |
| Number of connections | 8 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 0 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, solid core, max. | 25 mm² |
| Installation advice | Terminal rail / mounting plate |
| Number of poles | 4 |
| Rail | TS 35 |
| Standards |
IEC 60947-7-1
IEC 61238-1 VDE 0603-2 |
| Wire connection cross section AWG, max. | AWG 4 |
| Wire connection cross section AWG, min. | AWG 16 |
| Rated cross-section | 25 mm² |
| Rated voltage | 1 000 V |
| Rated AC voltage | 1 000 V |
| Rated DC voltage | 1 000 V |
| Rated current | 152 A |
| Current at maximum wires | 152 A |
| Standards |
IEC 60947-7-1
IEC 61238-1 VDE 0603-2 |
| Approval/Certificate/Document of Conformity |
[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_89228)
[VDE Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_153696) [VDE Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_198903) [DNV Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_320351) [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_37475) [UKCA declaration of conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_284527) [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39527) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1561800000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1561800000) |
| User Documentation |
[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
[Manual - How to connect aluminum wires in WPD-Terminal blocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_317919) [Torque_Conductor_Connection_Data_WPD_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_319361) [Drehmoment_Leiteranschlussdaten_WPD_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_319362) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000897 |
| ETIM 7.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| ECLASS 9.0 | 27-14-11-20 |
| ECLASS 9.1 | 27-14-11-20 |
| ECLASS 10.0 | 27-14-11-20 |
| ECLASS 11.0 | 27-14-11-20 |
| ECLASS 12.0 | 27-14-11-20 |
| ECLASS 13.0 | 27-25-01-19 |
| ECLASS 14.0 | 27-25-01-19 |
| Approvals |    |
| ROHS | Conform |
