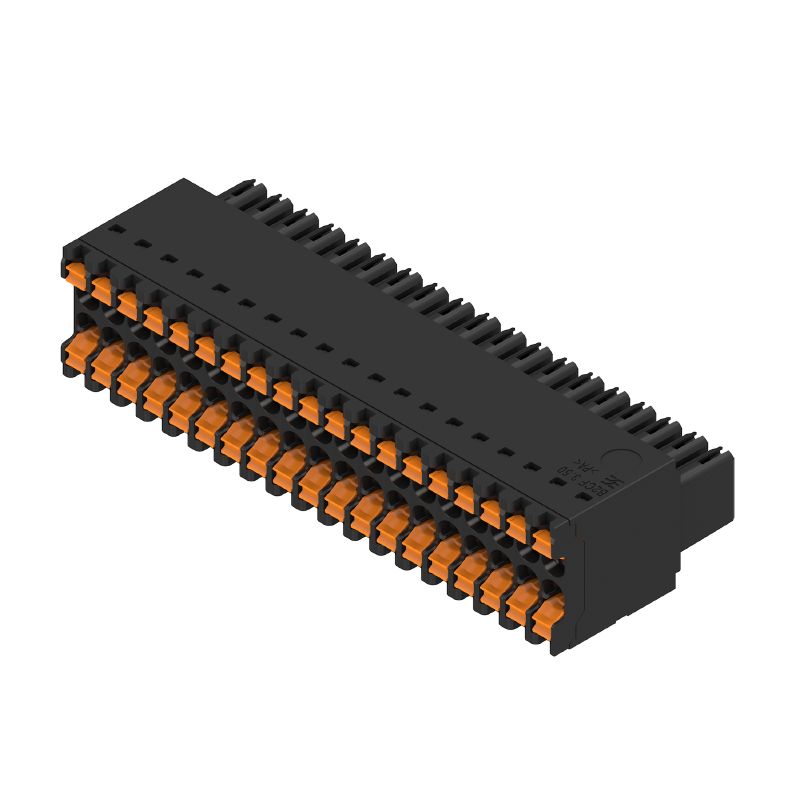

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 38, 180°, PUSH IN with push button, Clamping range, max. : 1.5 mm², Box

Tuotteen tunnus 2558460000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 2 Samankaltaiset tuotteet 45
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

ROHS
Conform

General ordering data

버전
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 38, 180°, PUSH IN with push button, Clamping range, max. : 1.5 mm², Box
주문 번호
2558460000
유형
B2CF 3.50/38/180 SN BK BX
GTIN(EAN)
4050118681208
Qty.
24 items
Product data
IEC: 320 V / 13.4 A / 0.14 - 1.5 mm²
UL: 300 V / 9.5 A / AWG 30 - AWG 16
Packaging
Box

Dimensions and weights

깊이
25.25 mm
Depth (inches)
0.994 inch
높이
15.2 mm
Height (inches)
0.598 inch
너비
66.5 mm
Width (inches)
2.618 inch
순중량
25.609 g

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

제품군
OMNIMATE Signal - series B2C/S2C 3.50 - 2-row
결선 유형
Field connection
와이어 결선 방식
PUSH IN with push button
피치(mm)(P)
3.5 mm
피치(인치)(P)
0.138 "
도체 아웃렛 방향
180°
극 수
38
L1(mm)
63 mm
L1(인치)
2.484 "
행 수
1
핀 시리즈 수량
2
정격 단면적
15 mm²
DIN VDE 57 106에 따른 터치 안전 보호
Safe from finger touch
DIN VDE 0470에 따른 터치 안전 보호
IP20 plugged
Protection degree
IP20
when fully mounted
코딩 가능
Yes
Stripping length
10 mm
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
3.5 N
Pulling force/pole, max.
3.5 N

Material data

Insulating material
PA 66 GF 30
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 600
절연 저항
≥ 108 Ω
UL 94 flammability rating
V-0
Materiał styków
Copper alloy
Contact surface
tinned
Layer structure of plug contact
2...5 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-40 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

클램프 범위, 최소
0.14 mm²
클램프 범위, 최대
1.5 mm²
Wire connection cross section AWG, min.
AWG 30
결선 단면규격 AWG, 최대
AWG 16
Solid, min. H05(07) V-U
0.14 mm²
Solid, max. H05(07) V-U
1.5 mm²
Flexible, min. H05(07) V-K
0.14 mm²
Flexible, max. H05(07) V-K
1.5 mm²
플라스틱 소매 페럴 포함, DIN 46228 pt 4, 최소
0.14 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.14 mm²
med ändhylsa enligt DIN 46 228/1, max.
1.5 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.14 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9028240000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025780000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025790000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028270000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • nominal:
      0.75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028290000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • nominal:
      1
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028320000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • nominal:
      1.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
13.4 A
Rated current, max. number of poles (Tu=20°C)
10 A
Märkström, min. antal poler (Tu=40°C)
12 A
Rated current, max. number of poles (Tu=40°C)
9 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2.5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2.5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2.5 kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

정격 전압(사용 그룹 B / CSA)
300 V
정격 전압(사용 그룹 C / CSA)
50 V
정격 전압(사용 그룹 D / CSA)
300 V
정격 전류(사용 그룹 B / CSA)
9.5 A
정격 전류(사용 그룹 C / CSA)
9.5 A
정격 전류(사용 그룹 D / CSA)
9.5 A
와이어 단면적, AWG, 최소
AWG 30
와이어 단면적, AWG, 최대
AWG 16

Rated data acc. to UL 1059

정격 전압(사용 그룹 B / UL 1059)
300 V
정격 전압(사용 그룹 C / UL 1059)
50 V
정격 전압(사용 그룹 D / UL 1059)
300 V
정격 전류(사용 그룹 B / UL 1059)
9.5 A
정격 전류(사용 그룹 C / UL 1059)
9.5 A
정격 전류(사용 그룹 D / UL 1059)
9.5 A
Wire cross-section, AWG, min.
AWG 30
와이어 단면적, AWG, 최대
AWG 16

Packing

패키징
Box
VPE 길이
338 mm
VPE 폭
130 mm
VPE 높이
33 mm

Type tests

테스트: 표시 내구성
  • Standard:
    IEC 61984 section 6.2 and 7.3.2 / 10.11 taking pattern from IEC 60068-2-70 / 12.95
  • Test:
    mark of origin, type identification, pitch, type of material, date clock, approval marking UL, approval marking cULus
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
테스트: 접속 오류(비호환성)
  • Standard:
    IEC 61984 section 6.3 and 6.9.1 / 10.11, IEC 60512-13-5 / 02.06
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
테스트: 클램프 사용 가능한 단면
  • Standard:
    IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
컨덕터의 손상 및 의도치 않은 느슨해짐 테스트
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
풀아웃 테스트
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC 준수
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
참고 사항
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Max. outer diameter of the conductor 2.6 mm
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
