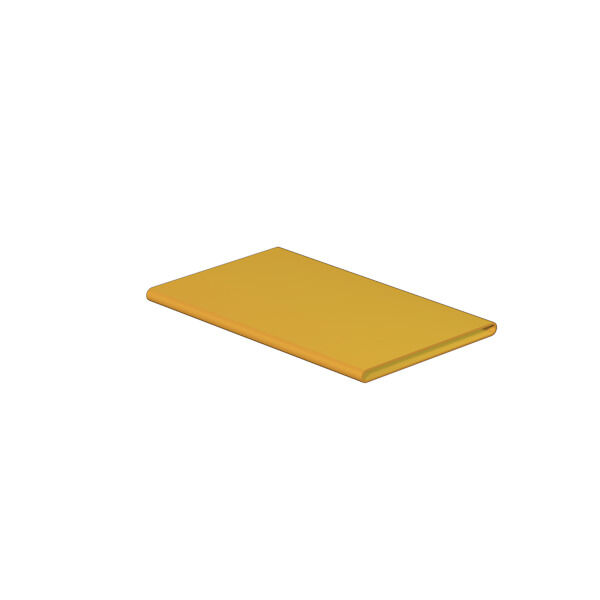

HSS-HF 9.5-19.1 EL Y30M
HSS-HF 9.5-19.1 EL Y30M

HSS-HF 9.5-19.1 EL Y30M

Conductor and cable markers, 9.5 - 19.1 mm, yellow

Product ID 1513220000
Gegevensblad downloaden Productdownloads Engineeringondersteuning
Toebehoren 5 Verwante producten 39
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Important note Classifications

Approvals

ROHS
Conform

General ordering data

Versione
Conductor and cable markers, 9.5 - 19.1 mm, yellow
N. d’ordine
1513220000
Tipo
HSS-HF 9.5-19.1 EL Y30M
GTIN(EAN)
4050118321029
Qty.
1 items

Dimensions and weights

Profondità
1,5 mm
Depth (inches)
0,059 inch
Larghezza
30,9 mm
Width (inches)
1,217 inch
Lunghezza
30.000 mm
Length (inches)
1.181,1 inch
Net weight
1.040,16 g

Temperatures

작동 온도 범위
-55...105 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyolefine
Colour
yellow
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
No
Length
30.000 mm
Number per roll
1
Operating temperature range
-55...105 °C
Operating temperature range, max.
105 °C
Operating temperature range, min.
-55 °C
Printed characters
without
Type of printing
neutral
Width
30,9 mm

Conductor and cable markers

Conductor O.D.
9.5 - 19.1 mm
Conductor O.D., min.
9,5 mm
Cross-section for connected wire
16 - 70 mm²
Ledarytterdiameter, max.
19,1 mm
Przekrój przyłącza przewodu, maks.
70 mm²
Rate of shrinkage
2:1
Recommended shrinking temperature
90 °C
Галогены
No
Поперечное сечение соединительного провода, мин.
16 mm²

Important note

제품 정보
External roll holder 1302920000 necessary

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
