IE-BS-V04P-SCRJ2SC-MM-C
IE-BS-V04P-SCRJ2SC-MM-C
Installation cut-out
Mounting cut-out: 1. With central screw connection / 2. For mounting with four M3 screws

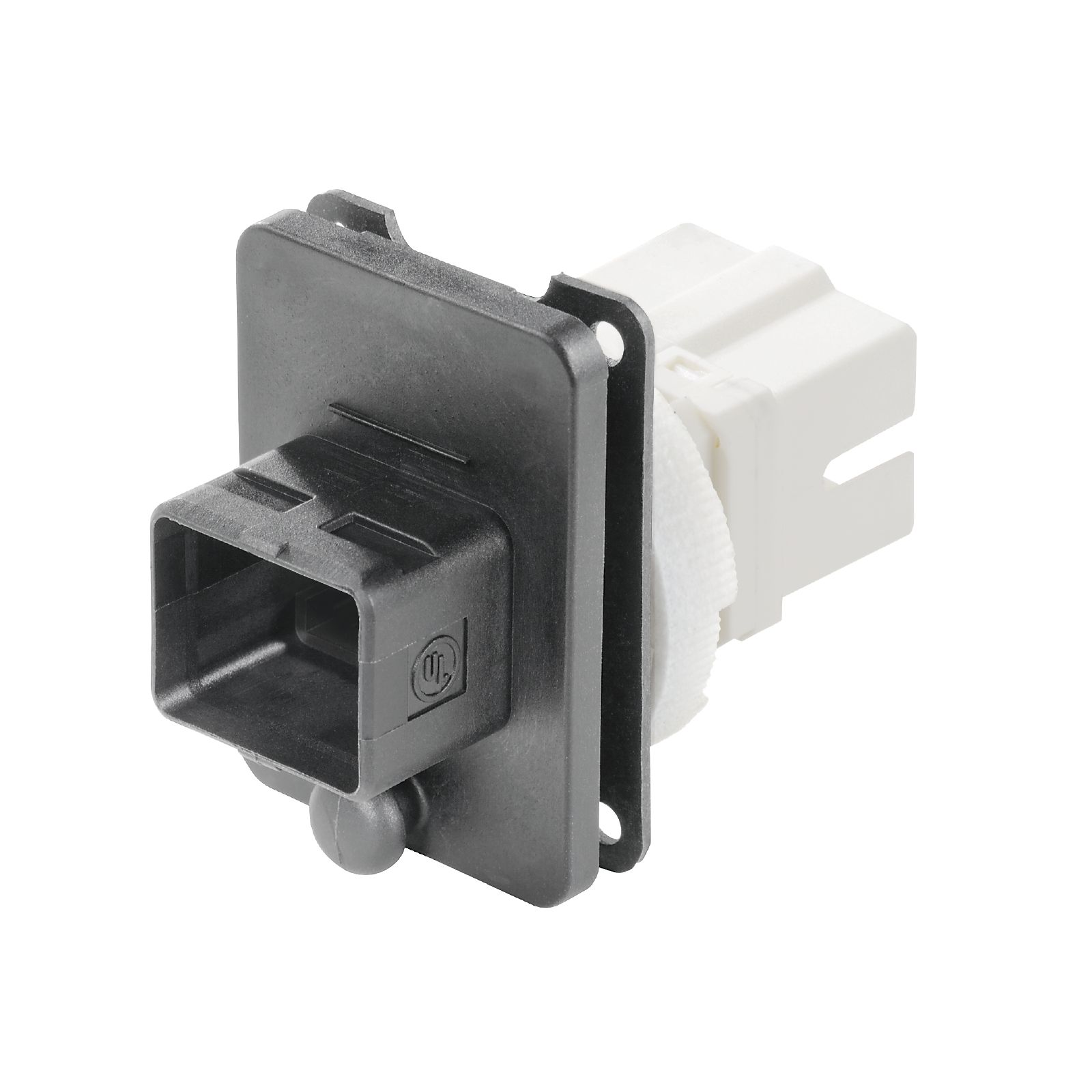

IE-BS-V04P-SCRJ2SC-MM-C

Flange FO, IP67, Version 4, coupling from SCRJ on 2*SC, Multimode, POF

Product ID 1964470000
Gegevensblad downloaden Engineering-support Produktdownloads
Toebehoren 2 Verwante producten 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data General standards Classifications

Approvals

ROHS
Conform

General ordering data

Version
Flange FO, IP67, Version 4, coupling from SCRJ on 2*SC, Multimode, POF
Order No.
1964470000
Type
IE-BS-V04P-SCRJ2SC-MM-C
GTIN (EAN)
4032248649075
Qty.
10 items

Dimensions and weights

Depth
48,3 mm
Depth (inches)
1,902 inch
Height
38 mm
Height (inches)
1,496 inch
Width
27 mm
Width (inches)
1,063 inch
Net weight
3,25 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

IP67
Barwny
Miscellaneous
Connection 1
SC
Connection 2
SCRJ
Fibre type
Multimode
POF
Insertion loss
≤ 0.4 dB
Plugging cycles
500
Return loss (attenuation)
≥ 30 dB
Описание артикула
Version 4, coupling from SCRJ on 2*SC
Основной материал корпуса
PA UL 94 V0

General standards

Connector standard
IEC 61076-3-106 Var. 4
IEC 61754-4
IEC 61754-24

Classifications

ETIM 8.0
EC000752
ETIM 9.0
EC000752
ETIM 10.0
EC000752
ECLASS 14.0
19-17-01-16
ECLASS 15.0
19-17-01-16
