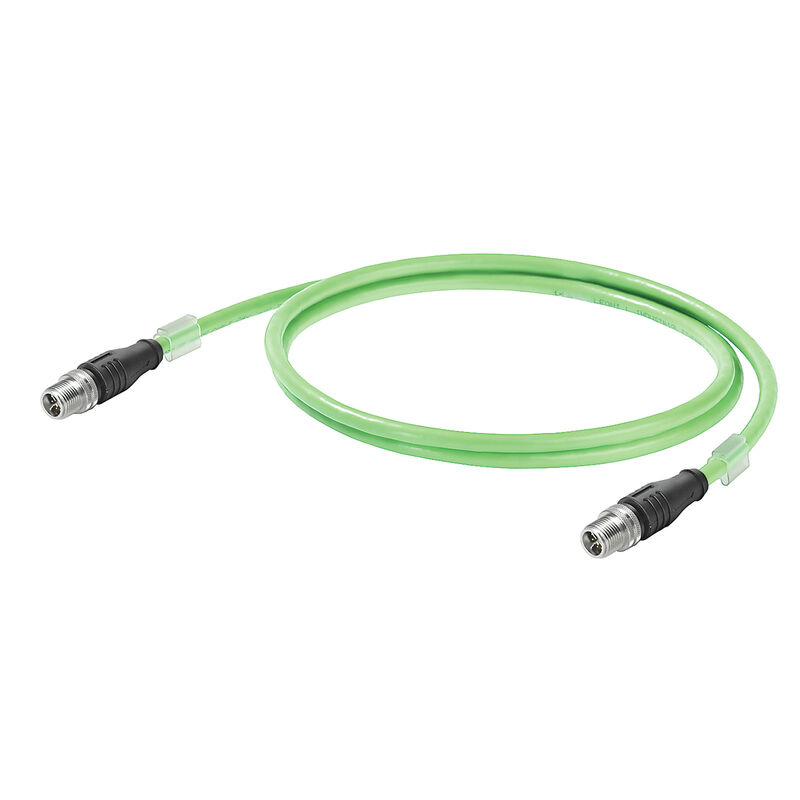

System cable, M12 X-type IP 67 straight male, M12 X-type IP 67 straight male, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 10 m

Produkt ID 1463640100
Download datablad Product Downloads
Tilbehør 2 Anvendte produkter 16
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, M12 X-type IP 67 straight male, M12 X-type IP 67 straight male, Cat.6A / Class EA (ISO/IEC 11801 2010), PUR, 10 m
Order No.
1463640100
Type
IE-C6EL8UG0100XCSXCS-E
GTIN (EAN)
4050118270839
Qty.
1 Styk

Dimensions and weights

Length
10 m
Length (inches)
393,701 inch
Net weight
360 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...80 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Impervious to smoke
According to IEC 61034
Standard, assembly
UL Style 20963

Standards

Norm Aufbau
UL Style 20963
Rauchdichte
According to IEC 61034

Cable structure

Anordnung Adern
Twisted pair
Anzahl der Adern
8
Beschaltung
EIA/TIA T568 B
Farbsequenz Adern - Adernpaare
white - blue, white - orange, white - green, white - brown
Gesamtschirm
Shielding braid made from copper wiring
Isolation
PE
Isolationsdurchmesser
0,98 mm
Kupferdurchmesser
0,48 µm
Leitermaterial
Stranded tin-plated copper wire
Litzen
7
Manteldurchmesser, max.
6,7 mm
Manteldurchmesser, min.
6,1 mm
Mantelfarbe
green (RAL 6018)
Normbezeichnungen
S/FTP
LIO2YSC11Y 4x2x0.15 PIMF FRNC GN
Querschnitt
4*2*AWG 26/7 - 4*2*0.128 mm²
Schirmung
S/FTP
Schirmung Adernpaar
Aluminium foil
Stärke Schirmgeflecht
0,1 mm
Werkstoff Mantel
PUR

Electrical properties of cable

Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 5 Ω at 100MHz
Loop resistance
290 Ω/km
Signal propagation time
5,2 ns/m
Test voltage: wire-wire-shield
700 Vrms, 50 Hz, 1 min
Transfer impedance
15 mΩ/m at 1 MHz
10 mΩ/m at 10 MHz
30 mΩ/m at 30 MHz
Vitesse de transmission
10 Gbit/s

Mechanical and material properties of cable

Abrasion resistance
very good
Halogen
halogen-free, according to IEC 60754-1
Impervious to smoke
According to IEC 61034
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
10 x cable diameter
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1-2

Plug, left

Plug left
M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
M12, X-coded, IP67, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
