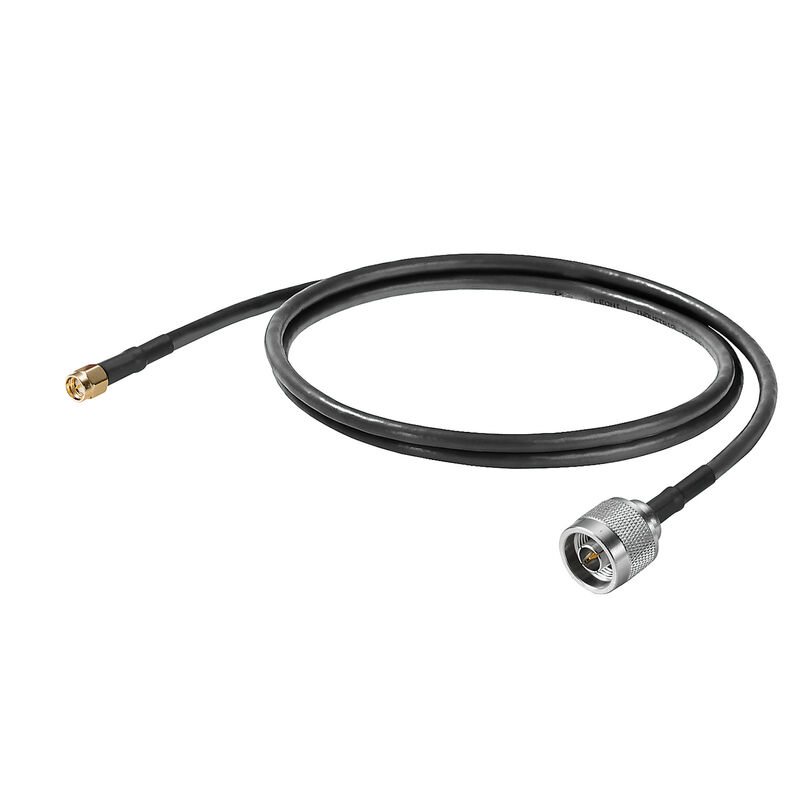

IE-CC-NM-SMAM-2M
Product image
Similar to illustration
IE-CC-NM-SMAM-2M
Product image
Connection 1: SMA male
IE-CC-NM-SMAM-2M
Product image
Connection 2: N-type male

IE-CC-NM-SMAM-2M

Antenna cable, Connection 1:, N male, Connection 2:, SMA male, Length: 2 m

Produkt ID 1491180000
Download datablad Produktdownloads
Er tilbehør til 2 Anvendte produkter 25
Approvals General ordering data Mått och vikter Temperaturen Umweltanforderungen Electrical properties of cable Mechanical and material properties of cable Technical data Environmental conditions Besorolások

Approvals

ROHS
Zgodny

General ordering data

Version
Antenna cable, Connection 1:, N male, Connection 2:, SMA male, Length: 2 m
Order No.
1491180000
Type
IE-CC-NM-SMAM-2M
GTIN (EAN)
4050118300741
Qty.
1 Styk

Mått och vikter

Length
2 m
Length (inches)
78,74 inch
Net weight
120 g

Temperaturen

Storage temperature
-70 °C...85 °C
Operating temperature
-40 °C...85

Umweltanforderungen

RoHS Compliance Status
Konform
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Electrical properties of cable

Attenuation at 2000 MHz
approx. 0.5 dB/m
Attenuation at 800 MHz
approx. 0.31 dB/m
Characteristic impedance
50 Ω

Mechanical and material properties of cable

Material sheath
Polyethylene
Min. bending radius, once only
12,7 mm
Min. bending radius, repetitive
50,8 mm
Sheath diameter
4,95 mm
UV-resistant
Yes

Technical data

Type of connection
Connection 1:
N male
Connection 2:
SMA male

Environmental conditions

Operating temperature, max.
85
Operating temperature, min.
-40 °C
Storage temperature, max.
85 °C
Storage temperature, min.
-70 °C

Besorolások

ETIM 8.0
EC001682
ETIM 9.0
EC001682
ETIM 10.0
EC001682
ECLASS 14.0
27-06-03-10
ECLASS 15.0
27-06-03-10
