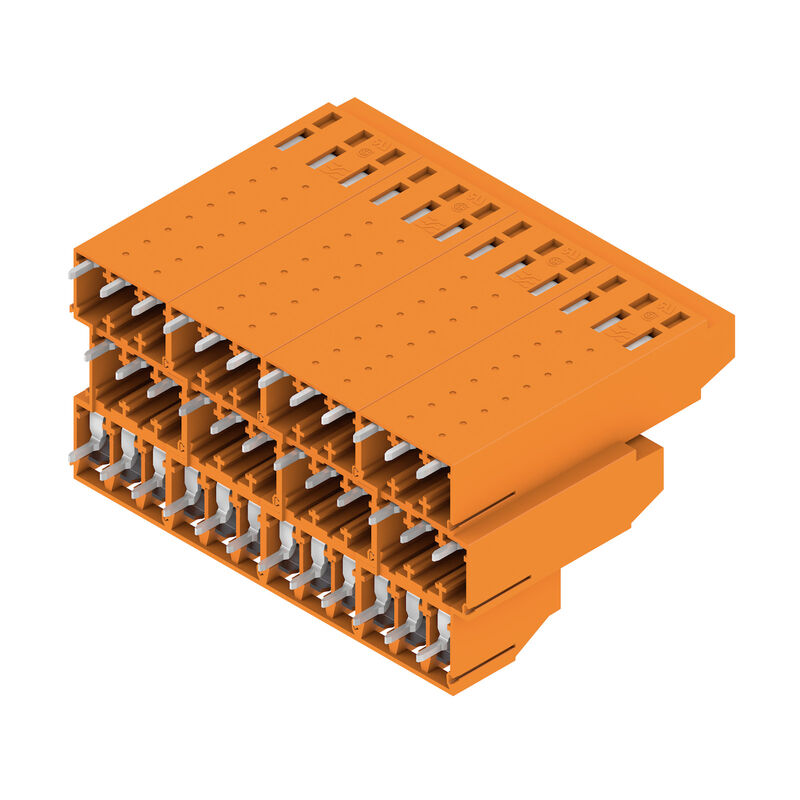

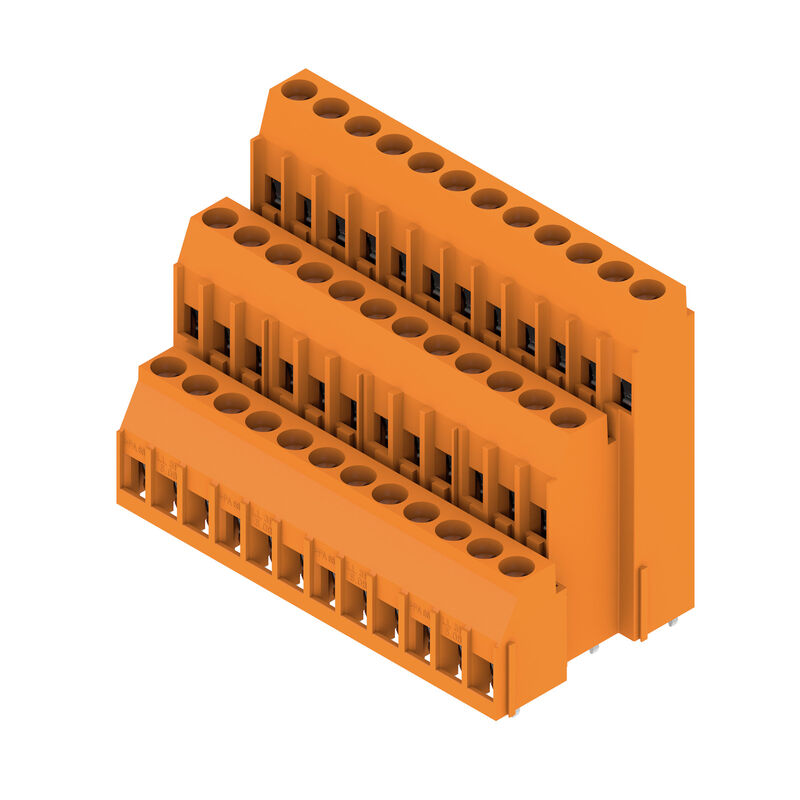

LL3R 5.00/36/90 3.2SN OR BX
Product image
LL3R 5.00/36/90 3.2SN OR BX
Product image
LL3R 5.00/36/90 3.2SN OR BX
Dimensional drawing
LL3R 5.00/36/90 3.2SN OR BX
Graph

LL3R 5.00/36/90 3.2SN OR BX

Printed circuit board terminals, 5.00 mm, Number of poles: 36, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box

Produkt ID 1978930000
Download datablad Engineering Support Product Downloads
Anvendte produkter 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (UR)
E60693

General ordering data

Version
Printed circuit board terminals, 5.00 mm, Number of poles: 36, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 6 mm², Box
Order No.
1978930000
Type
LL3R 5.00/36/90 3.2SN OR BX
GTIN (EAN)
4032248673971
VPE
10 Styk
Product data
IEC: 500 V / 32.5 A / 0.5 - 6 mm²
UL: 300 V / 20 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Depth
32 mm
Depth (inches)
1,26 inch
Height
48,47 mm
Height (inches)
1,908 inch
Height of lowest version
45,27 mm
Width
63,15 mm
Width (inches)
2,486 inch
Net weight
83,3 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Signal - series LL
Wire connection method
Clamping yoke connection
Property, clamping point
WireReady
Mounting onto the PCB
THT solder connection
Conductor outlet direction
90°
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Number of poles
36
Pin series quantity
3
Fitted by customer
Yes
Number of rows
3
Max. adjacent poles per row
24
Solder pin length (l)
3,2 mm
Solder pin dimensions
0.75 x 0.9 mm
Solder eyelet hole diameter (D)
1,3 mm
Допуск на диаметр отверстия припойного ушка (D)
+ 0,1 mm
Количество контактных штырьков на полюс
1
końcówka wkrętaka
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,6 Nm
Clamping screw
M 3
Stripping length
6 mm
L1 in mm
55 mm
L1 in inches
2,461 "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20

Material data

Matériau isolant
Wemid (PA)
Color
orange
Farbtabelle (ähnlich)
RAL 2000
Grupo de materiales aislantes
I
Kriechstromfestigkeit (CTI)
≥ 600
UL 94 flammability rating
V-0
Kontaktmaterial
Copper alloy
Contact surface
tinned
Ytbehandling
4-6 μm SN
Type étamé
matt
Schichtaufbau - Lötanschluss
4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Klemmbereich, min.
0,08 mm²
Clamping range, max.
6 mm²
Leiteranschlussquerschnitt AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12
eindrähtig, min. H05(07) V-U
0,5 mm²
단선, 최대 H05(07) V-U
6 mm²
Flexible, mín. H05(07) V-K
0,5 mm²
Flexible, máx. H05(07) V-K
4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
érvéghüvellyel, DIN 46228 1. pont, min.
0,5 mm²
mit Aderendhülse nach DIN 46 228/1, max.
2,5 mm²
Jauge à bouchon selon EN 60999 a x b ; ø
2.8 mm x 2.4 mm; 3.0 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409600000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409700000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 60947-7-4
Rated current, min. number of poles (Tu=20°C)
32,5 A
Corriente nominal, número de polos máx. (Tu=20 °C)
26 A
Bemessungsstrom, min. Polzahl (Tu=40°C)
27,5 A
Corriente nominal, número de polos máx. (Tu=40 °C)
22 A
Tensión nominal con categoría de sobretensión/grado de polución II/2
500 V
Tensión nominal con categoría de sobretensión/grado de polución III/2
320 V
Tensione nominale con classe di sovratensione/grado di lordura III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Tension de choc nominale pour classe de surtension/Degré de pollution III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1202191
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
160 mm
VPE width
130 mm
VPE height
70 mm

Important note

IPC shoda
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
