SAIL-M8GM8GR-3-3.0V
SAIL-M8GM8GR-3-3.0V
Dimensioned drawing
Male, straight
SAIL-M8GM8GR-3-3.0V
Dimensioned drawing
Straight socket
SAIL-M8GM8GR-3-3.0V
Pole scheme
Male
SAIL-M8GM8GR-3-3.0V
Pole scheme
Socket
SAIL-M8GM8GR-3-3.0V
Wiring diagram
Schaltbild

SAIL-M8GM8GR-3-3.0V

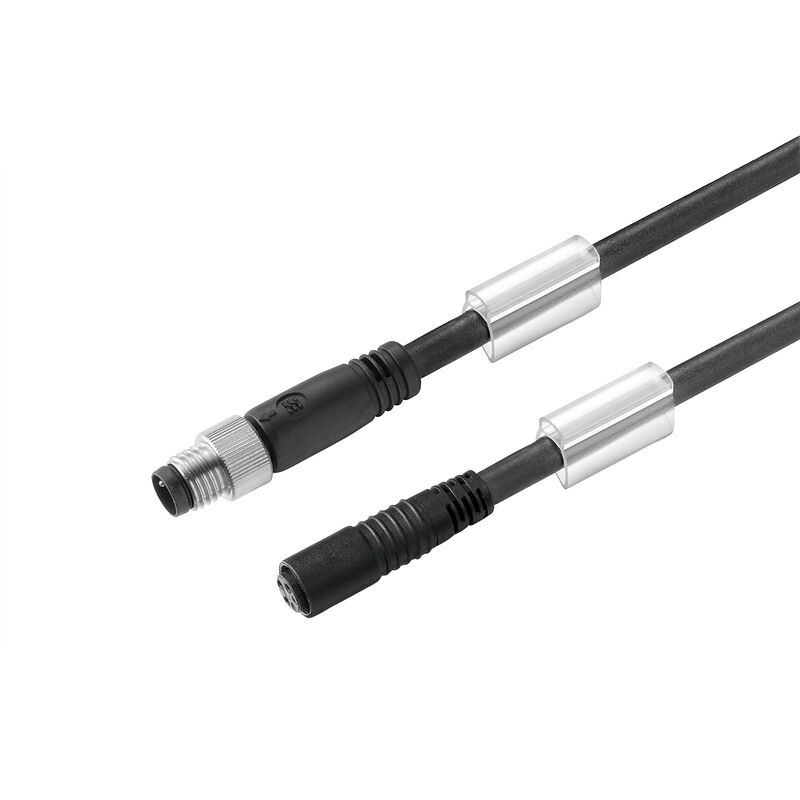

Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 3 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Ürün No. 1948650300
Veri sayfasını indir Download dei prodotti Supporto ingegneristico
Aksesuarlar 6 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Homologaciones
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cULus)
E307231

General ordering data

Versión
Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 3 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Référence
1948650300
Tipo
SAIL-M8GM8GR-3-3.0V
GTIN (EAN)
4032248625727
Qty.
1 adet

Dimensions and weights

Net weight
96 g

Environmental Product Compliance

Statut de conformité RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Cable length
3 m
Colour coding
brown
blue
black
Configurable cable length
No
Core cross-section
0,25 mm²
Halogen
Yes
Insulation
PVC
Irradiation crosslinked
No
Number of poles
3
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Outside diameter
4.5 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PVC
Sheathing colour
black
Shielded
No
Suitable for cable carriers
No
Temperature range, moving
-5...80 °C
Temperature range, stationary
-30...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No

General technical data

Cykle wpinania
≥ 100
Filetage du raccordement
M8 / M8
Insulation resistance
108 Ω
Kódolás
A-coded
LED
No
Materiał pierścienia gwintowanego
Brass, nickel-plated
Moment dokręcający
M8: 0.5 - 0.6 Nm
Nominal current
4 A
Stopień ochrony
IP65
when screwed in
Stopień zanieczyszczenia
3
Superficie dei contatti
Gold-plated
Zakres temperatury obudowy
-25…+85 °C
zmostkowany
No
공칭 전압
60 V
버전
pin, straight - socket, straight
하우징 기본 재질
PUR

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-104

Plug, left

Wtyk po lewej
M8, IP69, male contact, straight, Plastic, unshielded

Plug, right

Wtyk po prawej
M8, IP69, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
