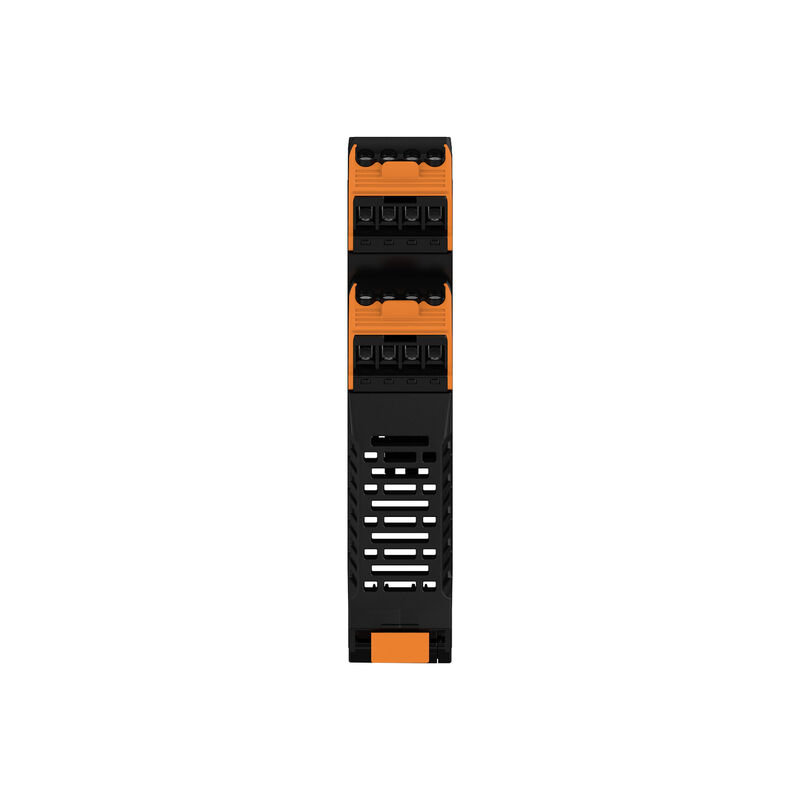

Product image
SAMPLE CH20M22 2/2

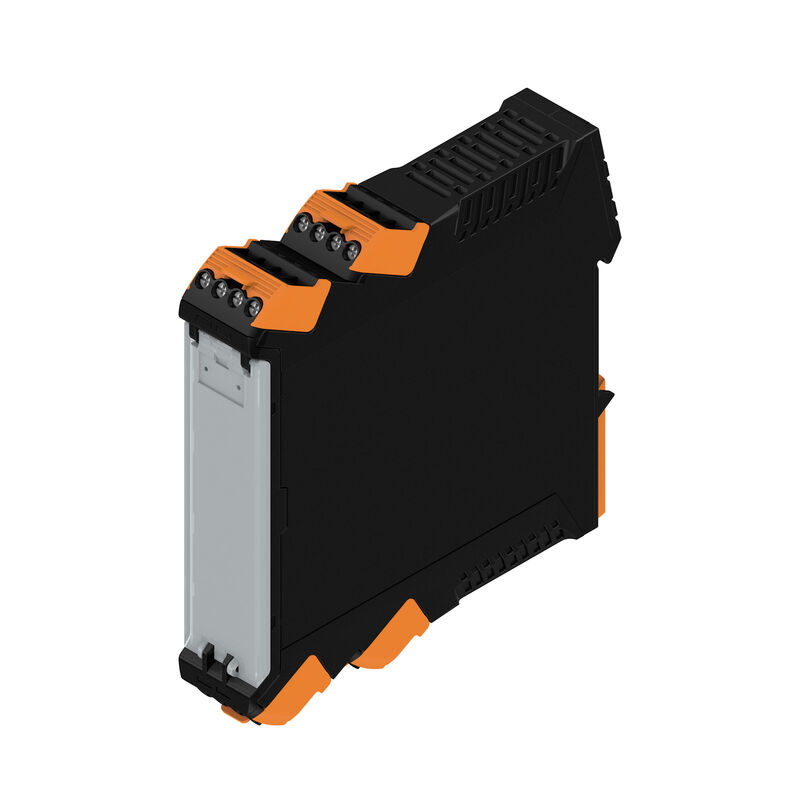

Product image
SAMPLE CH20M22 2/2

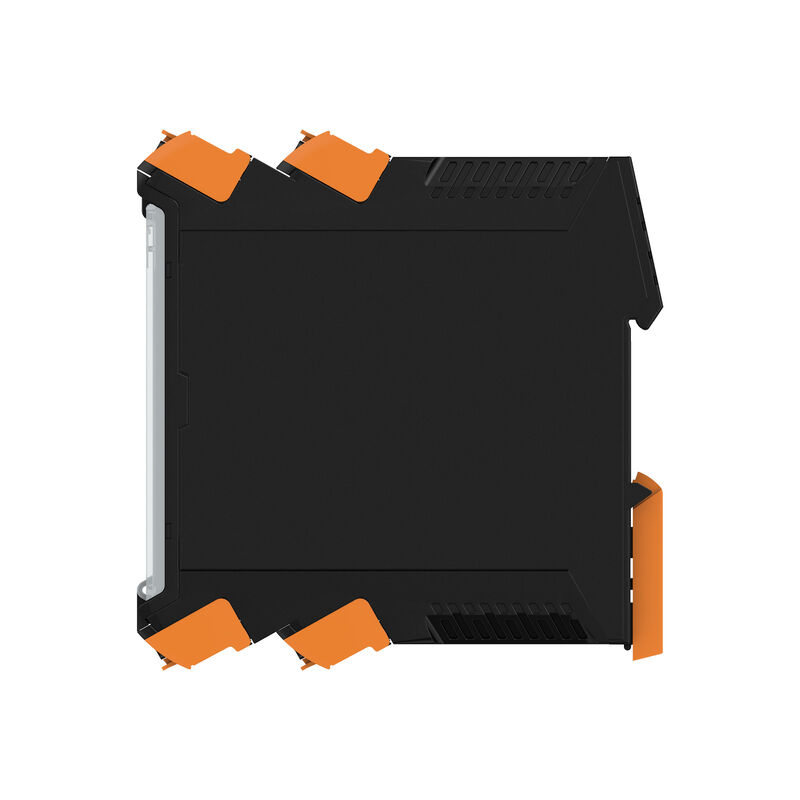

Product image
SAMPLE CH20M22 2/2
Product image
SAMPLE CH20M22 2/2
Dimensioned drawing

SAMPLE CH20M22 2/2

Electronics housing sample, OMNIMATE Housing - series CH20M black, Sample kit for developers, consisting of individual parts incl. female plug, Complete enclosure, Connection technology, Width: 22.5 mm

Product ID 1519330000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 30 Afzonderlijke onderdelen 7 Verwante producten 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data acc. to IEC Material data Общие данные Design - IN requirements Assembly properties Housing properties Connectable coducteurs Classifications

Approvals

ROHS
Conform

General ordering data

Version
Electronics housing sample, OMNIMATE Housing - series CH20M black, Sample kit for developers, consisting of individual parts incl. female plug, Complete enclosure, Connection technology, Width: 22.5 mm
Order No.
1519330000
Type
SAMPLE CH20M22 2/2
GTIN (EAN)
4050118326789
Qty.
1 items

Dimensions and weights

Depth
113,6 mm
Depth (inches)
4,472 inch
Height
117,2 mm
Height (inches)
4,614 inch
Width
22,5 mm
Width (inches)
0,886 inch
Length
0 mm
Net weight
108,55 g

Temperatures

Installation temperature
-25 °C...85 °C
Humidity
5 - 93% rel. humidity, Tu = 40°C, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data acc. to IEC

Rated current, max. number of poles (Tu=20°C)
10 A
Corrente di dimensionamento, numero massimo di poli (Tu = 40°C)
9 A
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
400 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
320 V
Tensione nominale con classe di sovratensione/grado di lordura III/3
250 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
250 kV
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
4 kV
Sovratensione nominale con classe di sovratensione/grado di lordura III/3
4 kV

Material data

Insulating material group
II
Izolační materiál
PA 66 GF 30
Kriechstromfestigkeit (CTI)
400 ≤ CTI <600
Surface finish
untreated
UL 94 flammability rating
V-0
Werkstoff
Plastic

Общие данные

Capacidad de sellado
Nej
Carril de montaje
TS 35
Carta de colores (similar)
RAL 9011
Farbe
black
Schutzart
IP20 in installed state

Design - IN requirements

PCB thickness
1,6 mm
Tolerance for the PCB shape
±0.1 mm
Tolerance of circuit board thickness
±0.15 mm

Assembly properties

Number of connection levels
2
Number of ventilation openings
2
Number of poles
4
Połączenie poprzeczne
No
Type of contact to PCB
Solder connection, direct
Type of connection
pluggable

Housing properties

Flip cover mountable
Yes
Marker integrateable
Yes
Cut out as preperation for functional port integrated
No
Color of clip-on foot
orange
Collegamento trasversale
No
Number of connection levels
2
Number of poles
4

Connectable coducteurs

Wire connection method
Clamping yoke connection
Stripping length
8 mm
Tightening torque, min.
0,4 Nm
Utahovací moment, max.
0,5 Nm
Clamping range, min.
0,13 mm²
2,5 mm²
결선 단면규격 AWG, 최소
AWG 26
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Stranded, max. H07V-R
2,5 mm²
Flessibile, min. H05(07) V-K
0,2 mm²
con terminale AEH con collare DIN 46 228/4, min.
0,25 mm²
con terminale AEH con collare DIN 46 228/4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Max. clamping range
2,5 mm²

Classifications

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-01-01
ECLASS 15.0
27-19-01-01
