CABTITE EP 24/21 GY
CABTITE EP 24/21 GY

CABTITE EP 24/21 GY

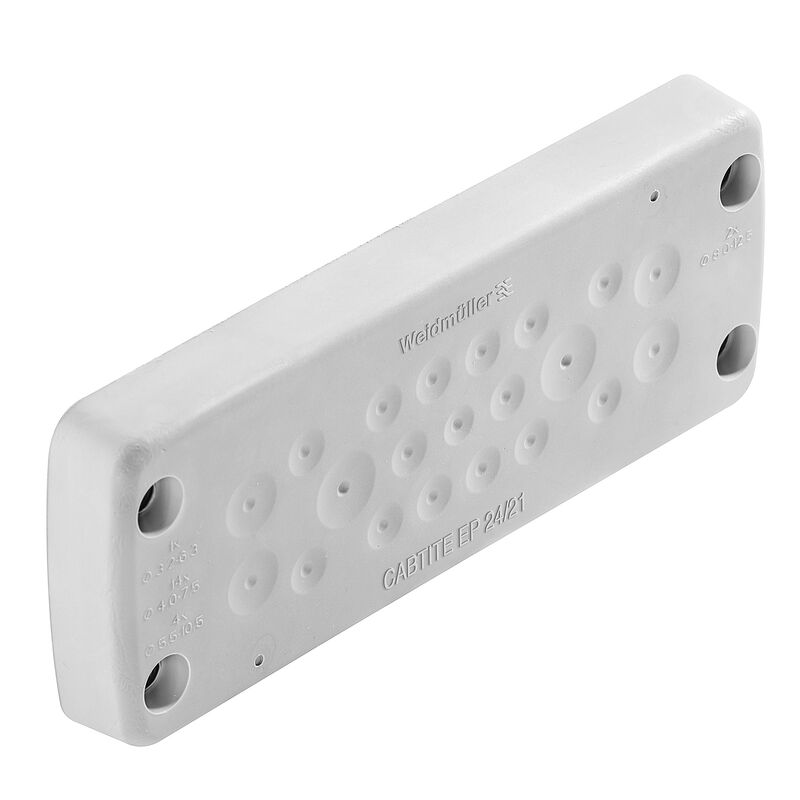

Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 58 mm, Width: 149.6 mm, Depth: 20.2 mm, -40 °C…90 °C, IP66

Ürün No. 2779370000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Number of connectable cables Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Version
Cable entry plate, Cabtite (cable entry system), TPE, grey, Height: 58 mm, Width: 149.6 mm, Depth: 20.2 mm, -40 °C…90 °C, IP66
Order No.
2779370000
Type
CABTITE EP 24/21 GY
GTIN (EAN)
4064675048947
Qty.
10 adet

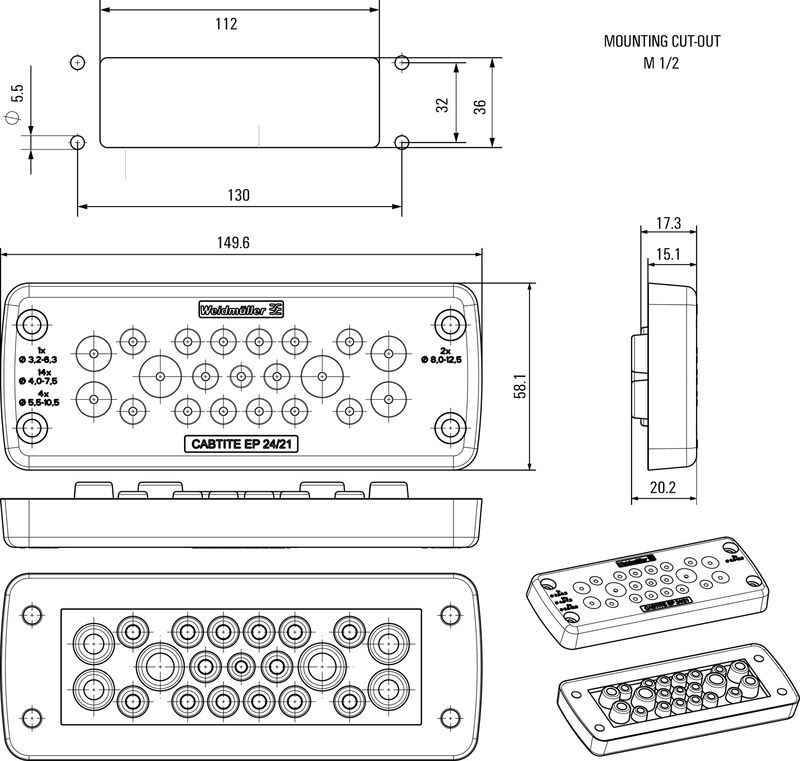

Dimensions and weights

Depth
20.2 mm
Depth (inches)
0.795 inch
Height
58 mm
Height (inches)
2.283 inch
Width
149.6 mm
Width (inches)
5.89 inch
Net weight
1.1 g

Temperatures

Operating temperature
-40 °C...90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Klasa palności wg UL 94
V-0
Materiał podstawowy
TPE
Stopień ochrony
IP66
Stopień ochrony (UL)
Type 1
Type 12
Type 4X
Tightening torque
3.5 Nm
실리콘
No

Number of connectable cables

Monteringstyp
4 screws
Number of connectable cables
21
Cable entries
  • Number:
    1
  • Cable diameter, min.:
    3.2 mm
  • Cable diameter, max.:
    6.3 mm
  • Cable type:
    Round cable
  • Number:
    14
  • Cable diameter, min.:
    4 mm
  • Cable diameter, max.:
    7.5 mm
  • Cable type:
    Round cable
  • Number:
    4
  • Cable diameter, min.:
    5.5 mm
  • Cable diameter, max.:
    10.5 mm
  • Cable type:
    Round cable
  • Number:
    2
  • Cable diameter, min.:
    8 mm
  • Cable diameter, max.:
    12.5 mm
  • Cable type:
    Round cable

Classifications

ETIM 8.0
EC002624
ETIM 9.0
EC002624
ETIM 10.0
EC002624
ECLASS 14.0
27-18-28-15
ECLASS 15.0
27-18-28-15
