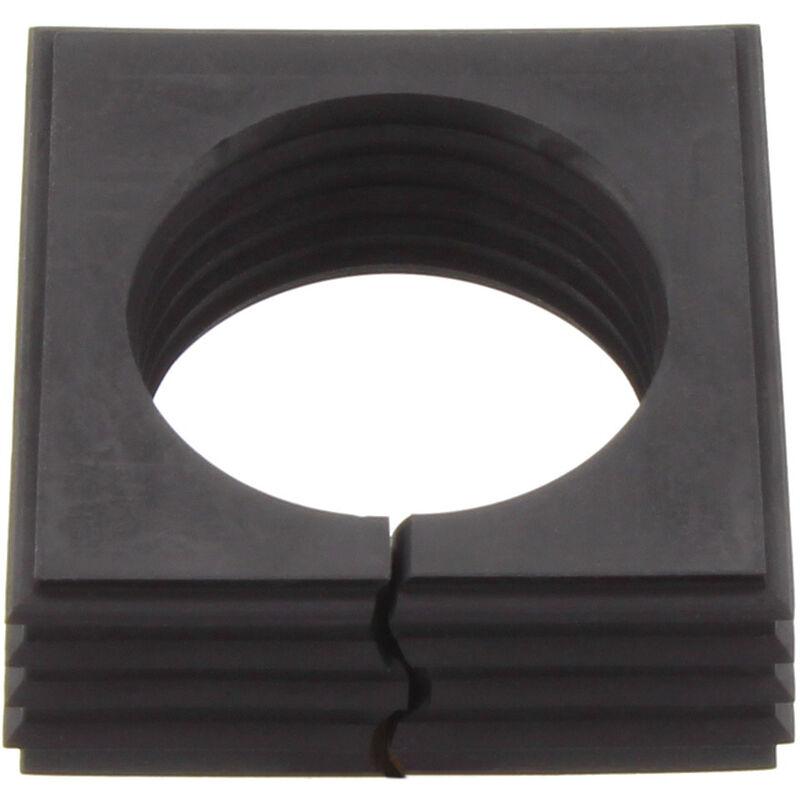

CABTITE SE 30-31 LRG BK
Similar to illustration

CABTITE SE 30-31 LRG BK

Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 42.8 mm, Width: 42.8 mm, Depth: 17.7 mm, -40 °C…120 °C, IP66

Tuotteen tunnus 2583650000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 23
General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications Approvals

General ordering data

Version
Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 42.8 mm, Width: 42.8 mm, Depth: 17.7 mm, -40 °C…120 °C, IP66
Order No.
2583650000
Type
CABTITE SE 30-31 LRG BK
GTIN (EAN)
4050118617108
Qty.
10  items

Dimensions and weights

Depth
17,7  mm
Depth (inches)
0,697  inch
Height
42,8  mm
Height (inches)
1,685  inch
Width
42,8  mm
Width (inches)
1,685  inch
Net weight
18,975  g

Temperatures

Operating temperature
-40 °C...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Halogen
No
Material
TPE
Outer cable diameter, max.
31  mm
Outer cable diameter, min.
30  mm
Protection degree
IP66
Sealing element
1 large sealing element
Silicone
No
UL 94 flammability rating
HB

Classifications

ETIM 6.0
EC000879
ETIM 7.0
EC000879
ETIM 8.0
EC000879
ETIM 9.0
EC000879
ETIM 10.0
EC000879
ECLASS 9.0
27-14-44-21
ECLASS 9.1
27-14-44-21
ECLASS 10.0
27-14-44-21
ECLASS 11.0
27-14-44-21
ECLASS 12.0
27-14-08-07
ECLASS 13.0
27-14-08-07
ECLASS 14.0
27-14-08-07
ECLASS 15.0
27-14-08-07

Approvals

Approvals
![CE](/picture/CE.gif) ![CURUS](/picture/CURUS.gif)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801
