HDC-C-HD-BM0.5AG
HDC-C-HD-BM0.5AG
HDC-C-HD-BM0.5AG

HDC-C-HD-BM0.5AG

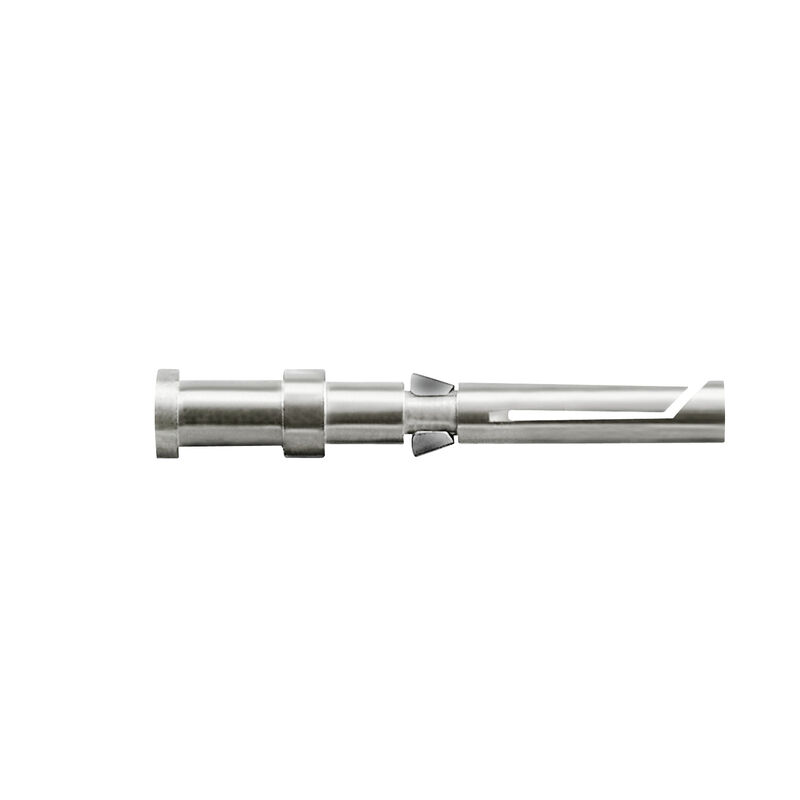

Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Female, Conductor cross-section, max.: 0.5, turned, Copper alloy

Item No. 1651580000
Download data sheet Engineering Support Product Downloads
Accessories 5 Is accessory of 37 Related products 20
Approvals General ordering data Dimensions and weights Environmental Product Compliance 일반 데이터 Classifications

Approvals

Omologazioni
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Versione
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Female, Conductor cross-section, max.: 0.5, turned, Copper alloy
N. d’ordine
1651580000
유형
HDC-C-HD-BM0.5AG
GTIN (EAN)
4008190400255
Qty.
100 items

Dimensions and weights

Diameter
3.5 mm
Net weight
0.64 g

Environmental Product Compliance

Stato conformità RoHS
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
6c
REACH SVHC
Lead 7439-92-1
SCIP
6eabd5ae-2d6b-409e-8bdf-87c27ee10e40

일반 데이터

Ciclos de enchufado
≥ 500
Contact diameter, male Ø
1.6 mm
Contactos
turned
Délka odizolování, jmenovité připojení
8 mm
Leiteranschlussquerschnitt, max.
0.5 mm²
Material básico
Copper alloy
Sección de conexión del conductor, min.
0.5 mm²
Section de raccordement de conducteur
0.5 - 0.5 mm²
Serie
HD
Superficie
silver
Tipo
Female
Typ připojení
Crimp connection
Verze – vložka
HD
HDD
HQ
MixMate
Volume resistance
≤4 mΩ
Érintkező anyaga
Copper alloy

Classifications

ETIM 8.0
EC000796
ETIM 9.0
EC000796
ETIM 10.0
EC000796
ECLASS 14.0
27-44-02-04
ECLASS 15.0
27-44-02-04
