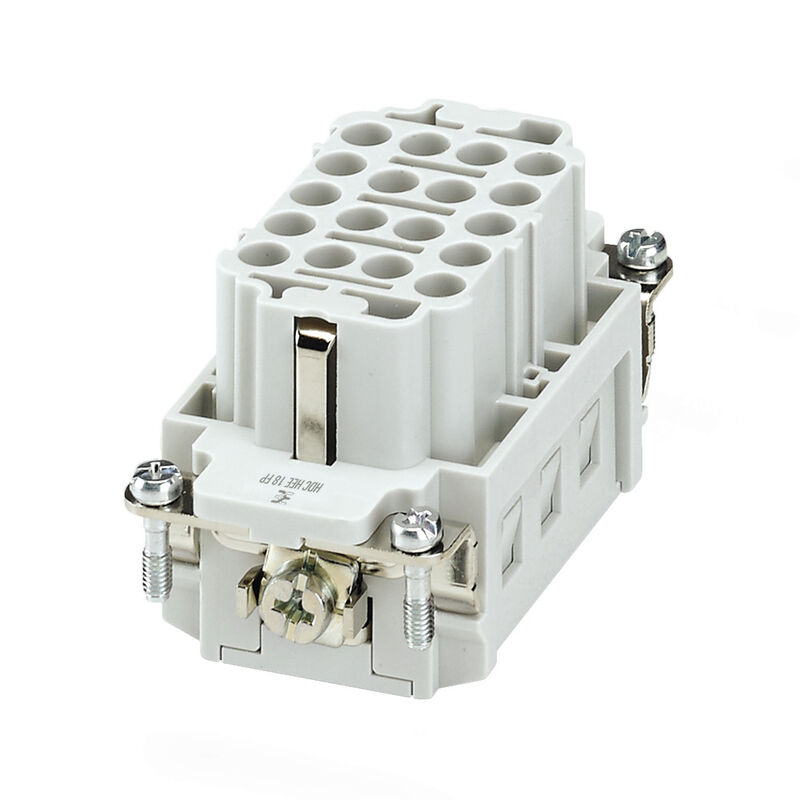

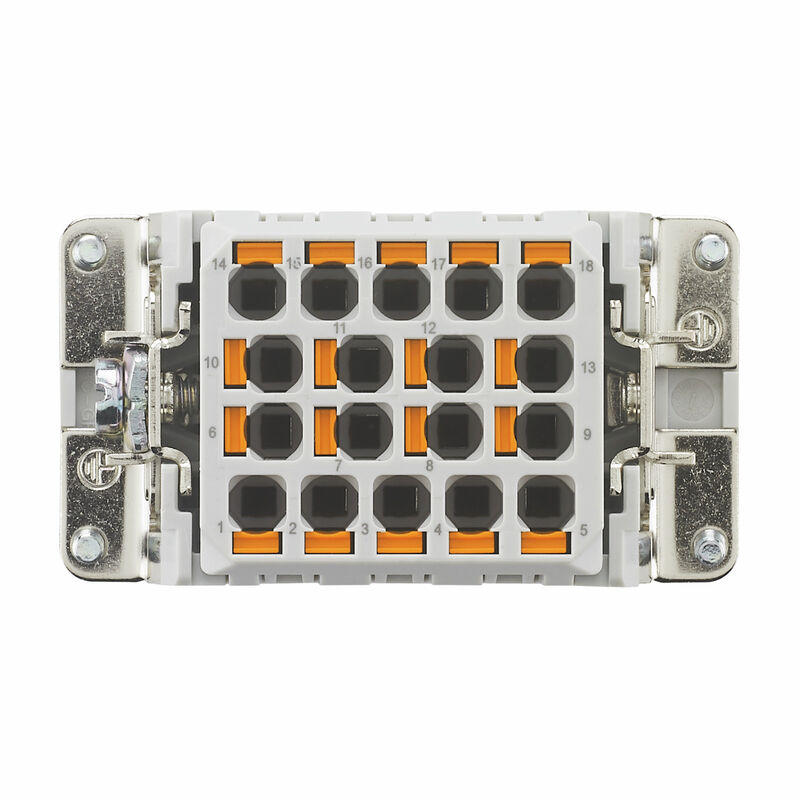

HDC insert, Female, 500 V, 16 A, Number of poles: 18, PUSH IN with actuator, Installation size: 4

Ürün No. 3023940000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 3 aksesuarıdır 2 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Power contact Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E310075

General ordering data

Version
HDC insert, Female, 500 V, 16 A, Number of poles: 18, PUSH IN with actuator, Installation size: 4
Order No.
3023940000
Type
HDC HEE 18 FP
GTIN (EAN)
4099986946521
Qty.
1 adet

Dimensions and weights

Depth
64 mm
Depth (inches)
2,52 inch
Height
33,2 mm
Height (inches)
1,307 inch
Width
34 mm
Width (inches)
1,339 inch
Length
64 mm
Length (inches)
2,52 inch
Net weight
80 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

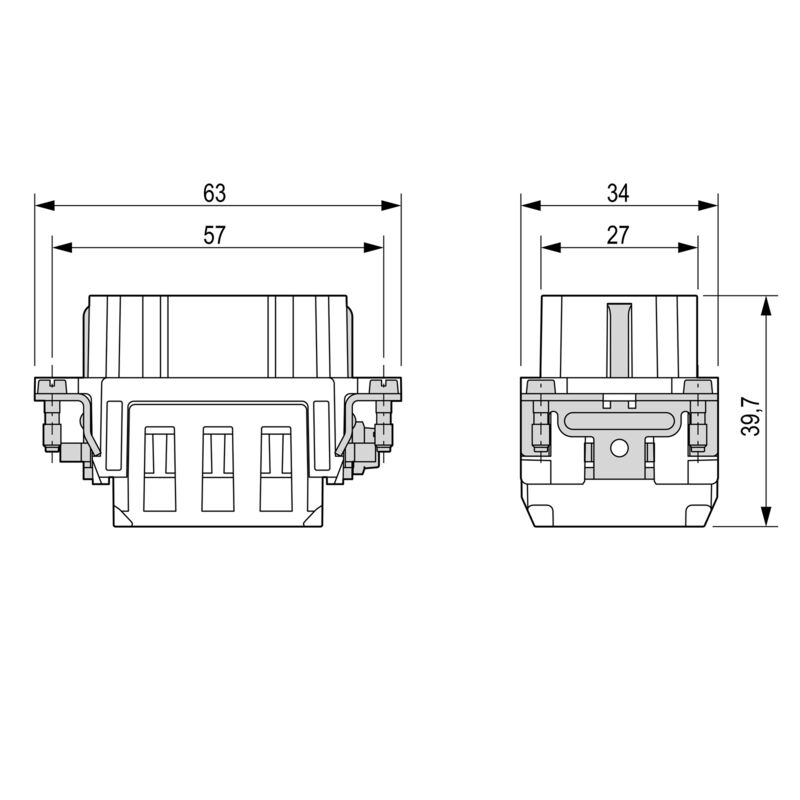

Dimensions

Height of socket
36 mm
Width
34 mm

General data

Basic material
Copper alloy
BG
4
Colour
beige
Conductor cross-section
2,5 mm²
Cycles d'enfichage Ag
≥ 500
Dugaszolási ciklusok, arany
≥ 500
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Klasa palności wg UL 94
V-0
Low smoke acc. DIN EN 45545-2
Yes
Number of power contacts
18
Number of signal contacts
0
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
500 V
Rated voltage according to UL/CSA
600 V AC/DC
Rated voltage conductor-PE (III/3)
500 V
Series
HEE
Surge voltage category
III
Tightening torque, max. PE connection
1,2 Nm
Tightening torque, min. PE connection
0,8 Nm
Type
Female
Volume resistance
≤2 mΩ
결선 유형
PUSH IN with actuator
극 수
18
설치 사이즈
4

Connection data PE

Blade size, slotted (PE connection)
SD 0.8 x 4.0
Connection type PE
Screw connection
Fixing screw
M 4
Rated cross-section
2,5 mm²
Stripping length PE connection
10 mm
Tightening torque, max. PE connection
1,2 Nm
Tightening torque, min. PE connection
0,8 Nm

Power contact

Rated current (DIN EN 61984), power contact
16 A

Version

Basic material
Copper alloy
BG
4
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
4
Type of connection
PUSH IN with actuator
Volume resistance
≤2 mΩ
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 20

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
