SAIL-M12GM12W-2/4L5.0U
SAIL-M12GM12W-2/4L5.0U
Dimensioned drawing
Male, straight
SAIL-M12GM12W-2/4L5.0U
Dimensioned drawing
Angled socket
SAIL-M12GM12W-2/4L5.0U
Pole scheme
Male
SAIL-M12GM12W-2/4L5.0U
Pole scheme
Socket
SAIL-M12GM12W-2/4L5.0U
Wiring diagram

SAIL-M12GM12W-2/4L5.0U

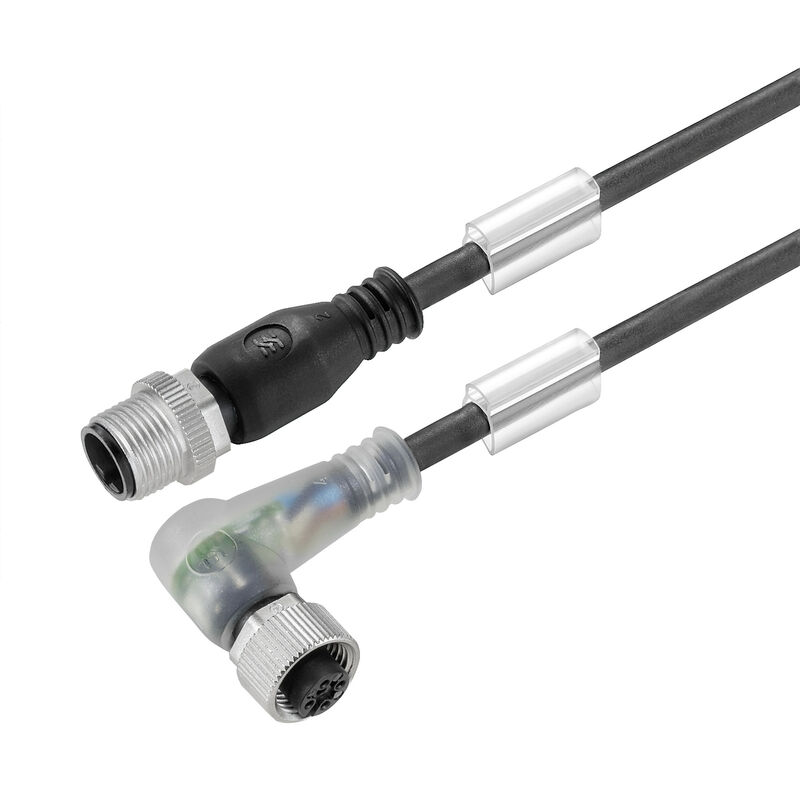

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 5 m, pin, straight - socket, 90°, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No

Tuotteen tunnus 9457750500
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 6 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 5 m, pin, straight - socket, 90°, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No
Order No.
9457750500
Type
SAIL-M12GM12W-2/4L5.0U
GTIN (EAN)
4032248228690
Qty.
1 items

Dimensions and weights

Diameter
3,8 mm
Net weight
123,2 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Colour coding
brown
blue
black
Configurable cable length
No
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1 m
Number of poles
3
Odporność na olej
Yes
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
3.8 mm ± 0.15 mm
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheath material hygroscopic
Yes
Sheathing colour
black
Skärmad
No
Speed
3,33 m/s
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No
Возможно использование с троссом для протяжки
Yes
Поперечное сечение жилы
0,34 mm²
케이블 길이
5 m

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
2/4
LED
Yes
Nominal current
4 A
Nominal voltage
24 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when screwed in
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
24 V

General standards

Connettori a norma
IEC 61076-2-101
Tanúsítvány száma (UL)
E307231

Standards

Norme de connecteur
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, angled 90°, Plastic, LED, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
