SAIL-VSB-5.0U
SAIL-VSB-5.0U
Dimensioned drawing
SAIL-VSB-5.0U
Pole scheme
SAIL-VSB-5.0U
Wiring diagram

SAIL-VSB-5.0U

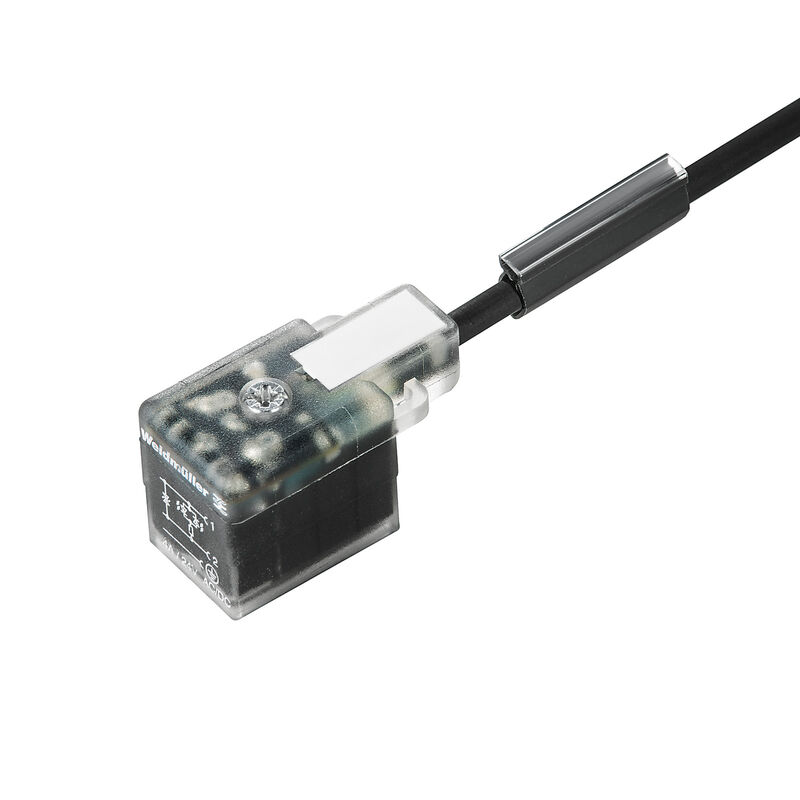

Valve cable (assembled), One end without connector - valve plug, Industrial design B (11 mm), Cable length: 5 m, PUR, black

Produkt ID 9457930500
Download datablad Engineering Support Product Downloads
Anvendte produkter 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Valve cable (assembled), One end without connector - valve plug, Industrial design B (11 mm), Cable length: 5 m, PUR, black
Order No.
9457930500
Type
SAIL-VSB-5.0U
GTIN (EAN)
4032248229550
Qty.
1 Styk

Dimensions and weights

Net weight
165 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical specifications for cable

Barevné kódování
brown
blue
Green/yellow
Cable length
5 m
Cykly ohybu
2 Mio
Halogen
Nem
Izolace
PP
Materiál pláště
PUR
Number of poles
3
Odolnost proti zkrutu
0 °/m
Odolnost vůči jiskrám ze sváření
No
Outside diameter
4.6 mm ± 0.2 mm
Poloměr ohybu, min., pohyblivý
10 x cable diameter
Poloměr ohybu, min., stacionární
5 x cable diameter
Průřez jádra
0,5 mm²
Resistant to welding beads
No
Rychlost
200 m/s
Sheathing colour
black
Stíněný
No
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-50...80 °C
Zrychlení
5 m/s²

General technical data

All valve plugs are fitted with protective circuits
Zener diode
Coding
Industrial design B (11 mm)
Connection thread
Miscellaneous
Contact material
CuZn
Contact surface
tinned
LED
예
Nominal current
4 A
Nominal voltage
24 V
Protection degree
IP67
when screwed in
Temperature range of housing
-25…+80 °C
Tightening torque
Mounting screw M3: 0.4 Nm
Version
One end without connector - valve plug

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-12
ECLASS 15.0
27-06-03-12
