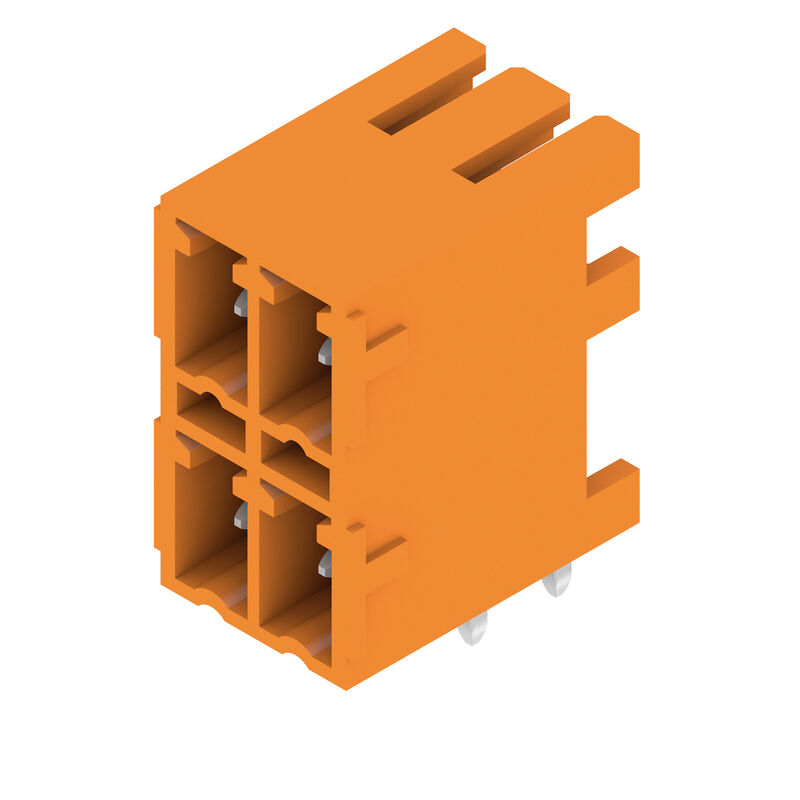

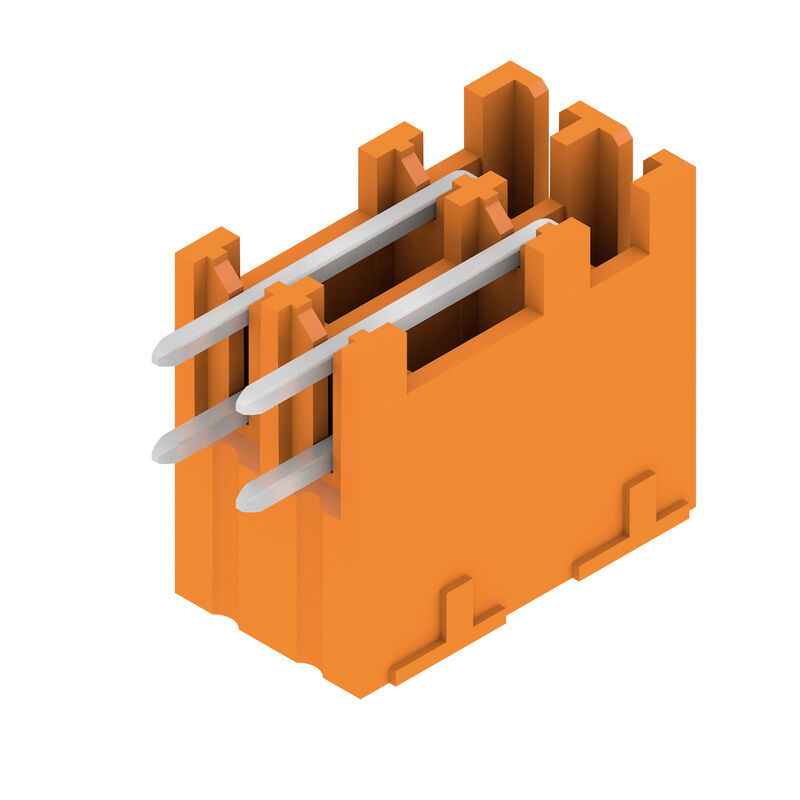

PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 4, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box

Ürün No. 1040410000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Şunun karşı parçasıdır 1 İlgili ürünler 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 4, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box
Order No.
1040410000
Type
SCDN 3.81/04/90G 3.2SN OR BX
GTIN (EAN)
4032248769070
Qty.
50 adet
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box

Dimensions and weights

Depth
13,3 mm
Depth (inches)
0,524 inch
Height
18,4 mm
Height (inches)
0,724 inch
Height of lowest version
15,2 mm
Width
9,01 mm
Width (inches)
0,355 inch
Net weight
2,04 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BC/SC 3.81
Type of connection
Board connection
Montage sur le circuit imprimé
THT solder connection
Raszter mm-ben (P)
3,81 mm
피치(인치)(P)
0,15 "
외향 엘보
90°
Number of poles
4
폴당 용접 핀 수
1
Длина штифта для припайки (l)
3,2 mm
Tolerancia de longitud del pin de soldadura
+0,02 / -0.2 mm
Solder pin dimensions
d = 1.0 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Solder eyelet hole diameter (D)
1,2 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
3,81 mm
L1 en pulgadas
0,15 "
Number of rows
2
Nombre de pôles
2
Protezione da contatto accidentale DIN VDE 57 106
sicurezza per le dita a connettore non innestato/per il dorso della mano a connettore innestato
Protezione da contatto accidentale secondo DIN VDE 0470
IP 20 innestato / IP 10 non innestato
Resistenza di passaggio
≤5 mΩ
Codificabile
Sì

Material data

Insulating material
PA GF
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 550
UL 94 flammability rating
V-0
Contact material
Copper alloy
Contact surface
tinned
Temperatura di magazzinaggio, min.
-40 °C
Temperatura di magazzinaggio, max.
70 °C
Temperatura d'esercizio , min.
-50 °C
Temperatura d'esercizio , max.
120 °C
Campo della temperatura di montaggio, min.
-25 °C
Campo della temperatura di montaggio, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
13,2 A
Rated current, min. number of poles (Tu=40°C)
17 A
Rated current, max. number of poles (Tu=40°C)
12,2 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 76 A

Rated data acc. to CSA

Tensión nominal (Use Group B / CSA)
300 V
정격 전압(사용 그룹 D / CSA)
300 V
정격 전류(사용 그룹 B / CSA)
11 A
정격 전류(사용 그룹 D / CSA)
10 A

Rated data acc. to UL 1059

Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
11 A
Rated current (Use group D / UL 1059)
10 A

Packing

Emballage
Box
Longueur VPE
208 mm
Anchura VPE
129 mm
VPE magasság
27 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
