VT SFX 14/23 MC NE RT V0
VT SFX 14/23 MC NE RT V0

VT SFX 14/23 MC NE RT V0

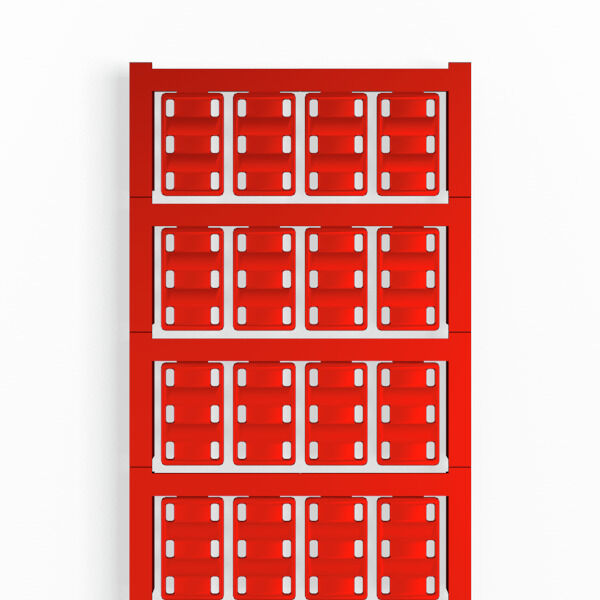

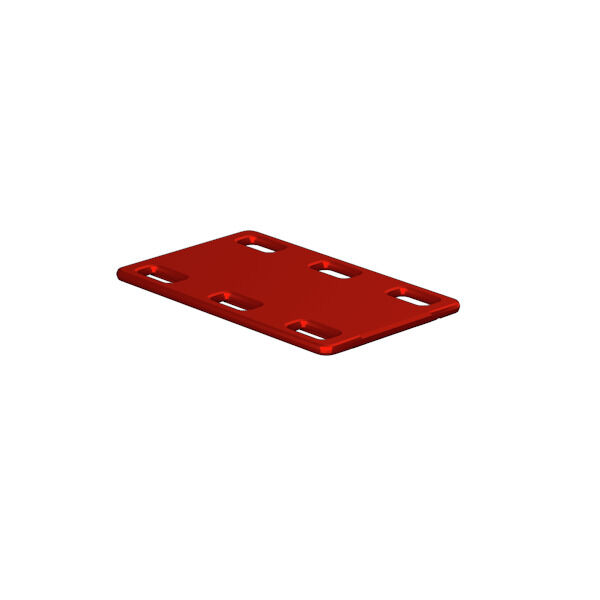

SlimFix X, Conductor and cable markers, 7 - 40 mm, 23 x 14 mm, red

Produkt ID 1689490003
Download datablad Engineering-support Produktdownloads
Anvendte produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
SlimFix X, Conductor and cable markers, 7 - 40 mm, 23 x 14 mm, red
Order No.
1689490003
Type
VT SFX 14/23 MC NE RT V0
GTIN (EAN)
4008190872649
Qty.
320 Styk

Dimensions and weights

Profondeur
0,5 mm
Depth (inches)
0,02 inch
Hauteur
23 mm
Height (inches)
0,906 inch
Largeur
14 mm
Width (inches)
0,551 inch
Net weight
0,555 g

Temperatures

plage de température d'utilisation
-50...120 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.008 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
red
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Materialfärg enligt motståndskod
2
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-50...120 °C
Operating temperature range, max.
120 °C
Operating temperature range, min.
−50 °C
Recommended industries
Transportation
Machinery
Size of labelling field
23 x 8 mm
Type of printing
neutral
UL 94 flammability rating
V-0
Version
Installation with cable ties
Width
14 mm

Conductor and cable markers

Conductor O.D., min.
7 mm
Halogén
No
Przekrój przyłącza przewodu
16 - 500 mm²
Section de raccordement du conducteur, max.
500 mm²
Наружный диаметр провода
7 - 40 mm
전선 굵기, 최소
16 mm²
컨덕터 O.D., 최대
40 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
