BZT PRV16 SW 35X7.5

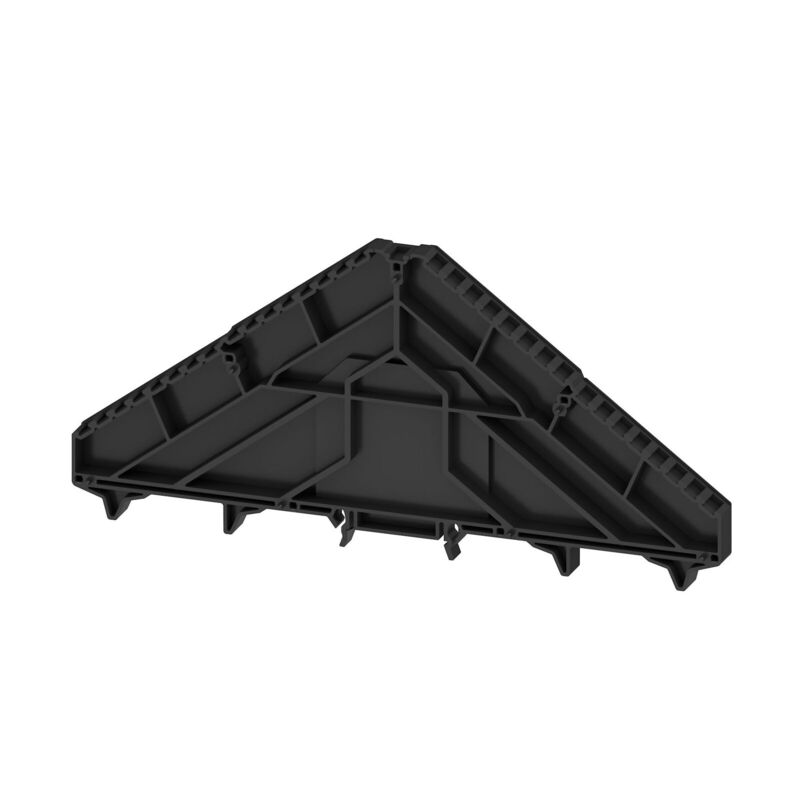

Product image

BZT PRV16 SW 35X7.5

P-series, Marker holder, black, Number of levels: 16, TS 35 x 7.5

Art.-Nr. 1173550000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 4 Verwante producten 72
Zulassungen General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Conductors for clamping (rated connection) General Classifications

Zulassungen

ROHS
Konform

General ordering data

Version
P-series, Marker holder, black, Number of levels: 16, TS 35 x 7.5
Order No.
1173550000
Type
BZT PRV16 SW 35X7.5
GTIN (EAN)
4032248966219
수량
20 items

Dimensions and weights

Depth
105,9 mm
Hloubka (v palcích)
4,169 inch
Height
225 mm
Height (inches)
8,858 inch
Width
10,2 mm
Anchura (pulgadas)
0,402 inch
Масса нетто
50,72 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Temperatura permanete de trabajo, min.
-50 °C
Température d'utilisation permanente, max.
125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

Material data

Basic material
Polycarbonate
Colour
negro
Classe d'infiammabilità UL 94
V-0

System specifications

Version
For the mounting rails
Número de pisos
16
Número de puntos de embornado por piso
2
Szyna montażowa
TS 35 x 7.5

Conductors for clamping (rated connection)

Number of connections
32

General

Mounting rail
TS 35 x 7.5

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-14-11-92
ECLASS 15.0
27-14-11-92
