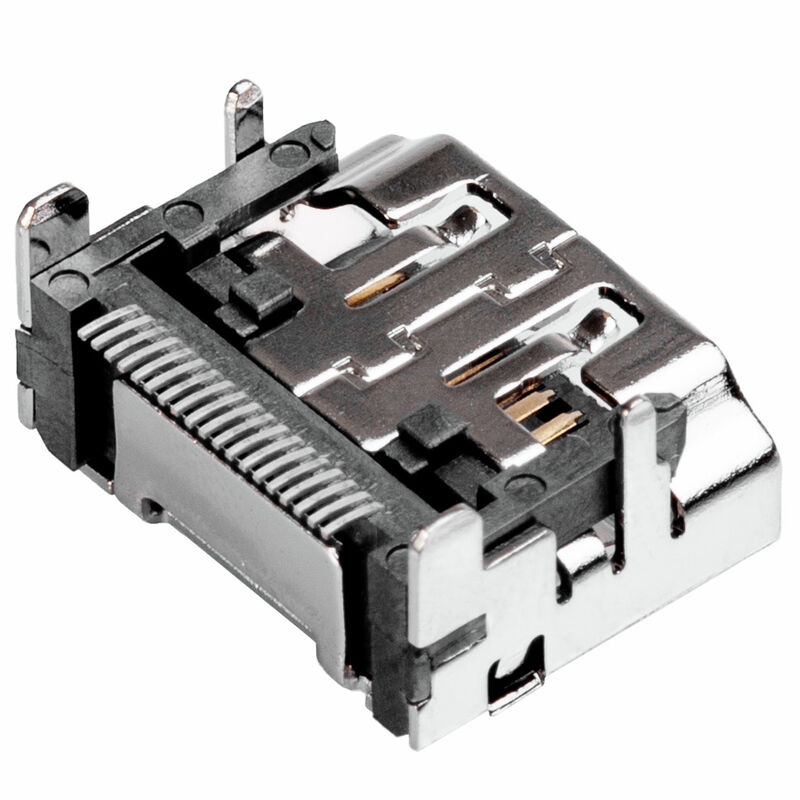

HDMI A S1H 2.0N1 RL
HDMI A S1H 2.0N1 RL
HDMI A S1H 2.0N1 RL

HDMI A S1H 2.0N1 RL

, female header, Solder flange, SMD solder connection, 0.50 mm, Number of poles: 19, 90°, Gold over nickel, black, Reel

Tuotteen tunnus 3107650000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 2
General ordering data Dimensions and weights Environmental Product Compliance System specifications Electrical properties Material data Packing Classifications Approvals

General ordering data

Version
, female header, Solder flange, SMD solder connection, 0.50 mm, Number of poles: 19, 90°, Gold over nickel, black, Reel
Order No.
3107650000
Type
HDMI A S1H 2.0N1 RL
GTIN (EAN)
4099987174541
Qty.
3 000  items
Packaging
Reel

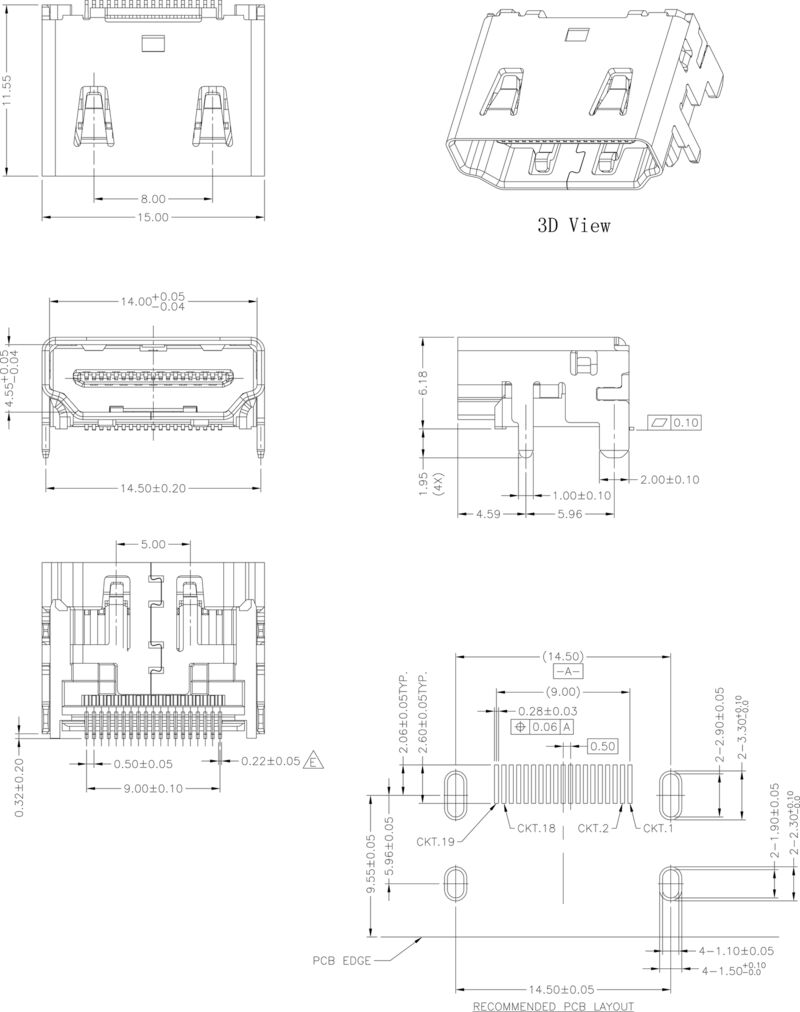

Dimensions and weights

Depth
11,55  mm
Depth (inches)
0,455  inch
Height
6,18  mm
Height (inches)
0,243  inch
Width
15  mm
Width (inches)
0,591  inch
Net weight
0,003  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

LED
No
Mounting onto the PCB
SMD solder connection
Number of poles
19
Number of solder pins per pole
1
Outgoing elbow
90°
Pitch in inches (P)
0,02  "
Pitch in mm (P)
0,5  mm
Plugging cycles
≥ 10000
Protection degree
IP20
Shield surface
nickel-plated
Shield tabs
none
Shielding
Yes
Shielding material
Copper alloy
Side termination, characteristic
Solder flange
Soldering process
Reflow soldering
Manual soldering
Type of connection
Socket connector

Electrical properties

Dielectric strength, contact / contact
500 V AC / 1 min
Insulation strength
≥ 100 MΩ
Rated voltage
0,5  V

Material data

Insulating material
LCP
Colour
black
Colour chart (similar)
RAL 9011
Insulation strength
≥ 100 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Copper alloy
Contact material
Copper alloy
Contact surface
Gold over nickel
Storage temperature, min.
−20  °C
Storage temperature, max.
65  °C
Operating temperature, min.
−20  °C
Operating temperature, max.
65  °C

Packing

Packaging
Reel
VPE length
0  mm
VPE width
0  mm
VPE height
0  mm

Classifications

ETIM 6.0
EC002637
ETIM 7.0
EC002637
ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 9.1
27-44-04-02
ECLASS 10.0
27-44-04-02
ECLASS 11.0
27-46-02-01
ECLASS 12.0
27-46-02-01
ECLASS 13.0
27-46-02-01
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01

Approvals

ROHS
Conform
