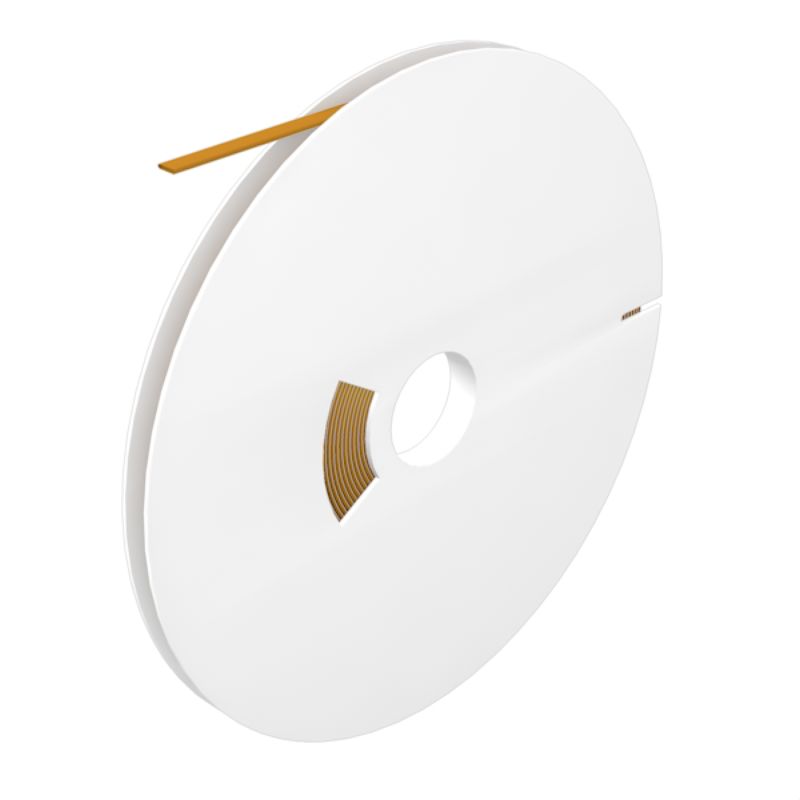

TwinMark, Conductor and cable markers, 2.4 - 4.8 mm, yellow

Produkt ID 1562670000
Download datablad Produktdownloads Engineering-support
Tilbehør 5 Anvendte produkter 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Общие данные Conductor and cable markers Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
TwinMark, Conductor and cable markers, 2.4 - 4.8 mm, yellow
Order No.
1562670000
Type
HSS-HF 2.4-4.8 EL Y75M
GTIN (EAN)
4050118367270
Qty.
1 Styk

Dimensions and weights

Depth
0,77 mm
Depth (inches)
0,03 inch
Width
7,6 mm
Width (inches)
0,299 inch
Length
75.000 mm
Length (inches)
2.952,75 inch
Net weight
732 g

Temperatures

Operating temperature range
-55...105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Общие данные

Barevný
желтый
Campo delle temperature di impiego
-55...105 °C
Caractères imprimés
utan
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogene
No
Länge
75.000 mm
Material básico
Polyolefine
Number of markers per combination
1 Shrink sleeve reel = Conductor and cable markers
Number per roll
1
Operating temperature range, max.
105 °C
Operating temperature range, min.
-55 °C
Type of printing
neutral
Width
7,6 mm
패키지 단위당 조합 개수
  • Form of supply:
    Shrink sleeve reel

Conductor and cable markers

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0,75 mm²
Conductor O.D., max.
4,8 mm
Conductor O.D., min.
2,4 mm
Cross-section for connected wire
0.75 - 4 mm²
Halogen
No
Rate of shrinkage
2:1
Recommended shrinking temperature
90 °C
Zewnętrzna średnica przewodu
2.4 - 4.8 mm

Important note

Product information
External roll holder 1302920000 necessary

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
