IE-FM5Z2VO0002MSD0SD0X

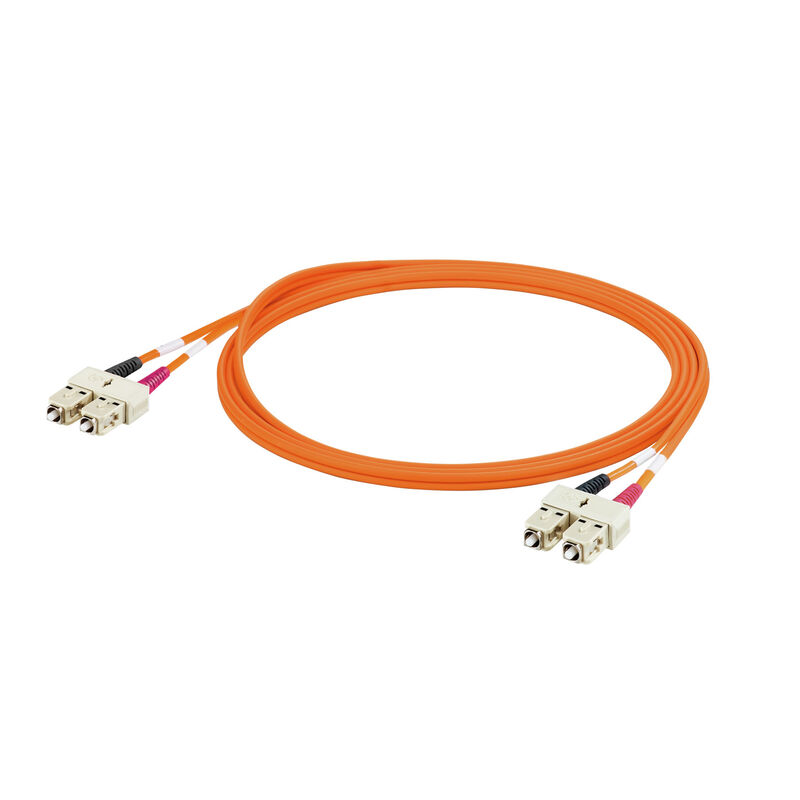

Pre-assembled patch cable, crossover, SC duplex IP 20, SC duplex IP 20, 50 µm, PVC, 2 m

Ürün No. 8813310000
Veri sayfasını indir Ürün İndirmleri
İlgili ürünler 13
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General standards Standards Fibre-optic Cable structure Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Pre-assembled patch cable, crossover, SC duplex IP 20, SC duplex IP 20, 50 µm, PVC, 2 m
Order No.
8813310000
Type
IE-FM5Z2VO0002MSD0SD0X
GTIN (EAN)
4032248513161
Qty.
1 adet

Dimensions and weights

Length
2 m
Length (inches)
78,74 inch
Net weight
50 g

Temperatures

Storage temperature
-25 °C...75 °C
Operating temperature
-5 °C...75 °C
Installation temperature
-5 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

General standards

Connettori a norma
IEC 61754-4

Standards

커넥터 표준
IEC 61754-4

Fibre-optic

Attenuation
≤ 2.7 dB/km at 850 nm
≤ 0.7 dB/km at 1300 nm
Bandwidth
≥ 600 MHz*km at 850 nm
≥ 1200 MHz*km at 1300 nm
Fibre type
GOF
Multimode
OM2

Cable structure

Cable layout
ZIPCORD
Core diameter
50 µm
Material sheath
PVC
Normbeteckningar
I-V(ZN)Y
Primary coating
245 µm
Sheath diameter
3*6 mm
Цвет оболочки
orange

Mechanical and material properties of cable

Halogen
yes (PVC cable)
Min. bending radius, once only
30 mm
Min. bending radius, repetitive
60 mm
Resistance to spread of flame
No

Plug

Plug left
SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded
Plug right
SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Plug, left

Plug left
SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Plug, right

Plug right
SC-Duplex, IP20, male contact, straight, plug, Plastic, unshielded

Classifications

ETIM 8.0
EC002607
ETIM 9.0
EC002607
ETIM 10.0
EC002607
ECLASS 14.0
27-06-10-03
ECLASS 15.0
27-06-10-03
