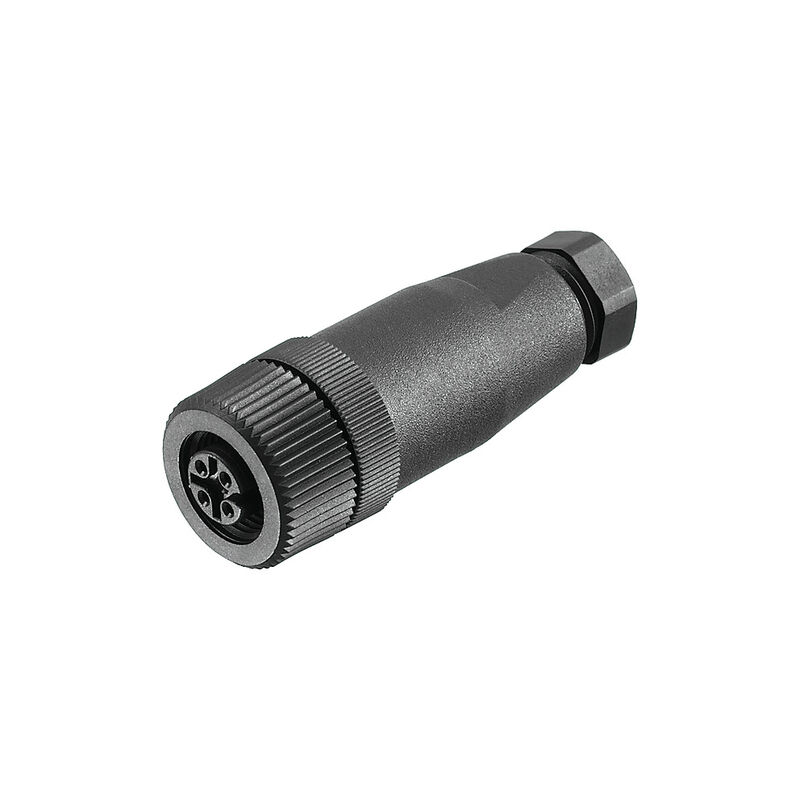

SAIBGS-K-4A-4/6-M12
SAIBGS-K-4A-4/6-M12
Pole scheme
M12 = A-coded

SAIBGS-K-4A-4/6-M12

Conector acoplable en campo, M12

Produkt ID 1921080000
Download datablad Engineering-support Produktdownloads
Anvendte produkter 56
Approvals Datos generales para pedido Méretek és tömegek Conformidad medioambiental del producto Technical data customisable plug-in connectors General Info Standardy Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[Site Web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (cURus)
E307231

Datos generales para pedido

Version
Conector acoplable en campo, M12
Order No.
1921080000
Type
SAIBGS-K-4A-4/6-M12
GTIN (EAN)
4032248562640
Qté.
1 Pièce

Méretek és tömegek

Nettó tömeg
12,831 g

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme con exención
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
Imidazolidine-2-thione 96-45-7
SCIP
bcee35cf-c0f5-43d2-8daf-65ab0d08641a

Technical data customisable plug-in connectors

Cable diameter, max.
6 mm
Cable diameter, min.
4 mm
Coding
A-coded
Conductor cross-section, max.
0,75 mm²
Conductor cross-section, min.
0,14 mm²
Contact surface
CuSnZn
Gender of contact
Female
Housing main material
PA
Insulation resistance
108 Ω
Nominal current
4 A
Nominal voltage
250 V
Number of poles
4
Plugging cycles
≥ 50
Pollution severity
3
Protection degree
IP67
Shield connection
No
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Plastic
Type of connection
Screw connection

General Info

Number of poles
4
Connection 1
M12
Connection 2
Screw
Housing main material
PA
Filettatura del collegamento
M12
접점 표면
CuSnZn
Protection degree
IP67
Stickcykler
≥ 50

Standardy

Connector standard
IEC 61076-2-101

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
