VPU PV II 3 R 600

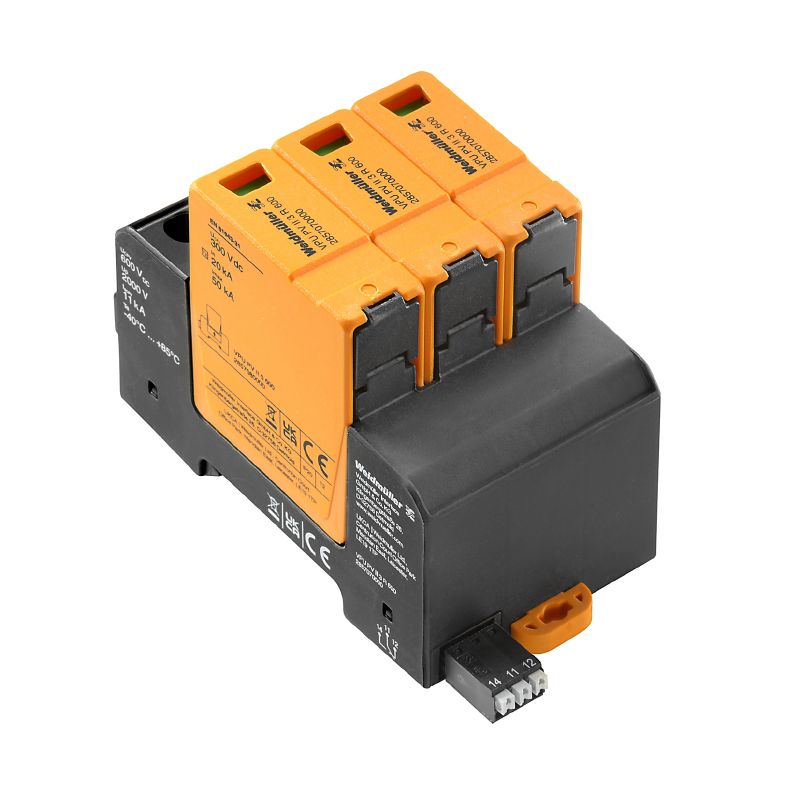

Product image
VPU PV II 3 R 600
Electric symbol
Circuit diagram

VPU PV II 3 R 600

Product ID 2857070000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 4 Onderdelen 3 Verwante producten 2
Сертификаты General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data, remote alert General data Insulation coordination acc. to EN 50178 Photovoltaic technical data Rated data IEC / EN Connection data Electrical data General data Záruka Classifications

Сертификаты

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

주문 번호
2857070000
유형
VPU PV II 3 R 600
GTIN(EAN)
4064675537434
Množství
1 items

Dimensions and weights

Profundidad
75 mm
Depth (inches)
2,953 inch
높이
110 mm
Height (inches)
4,331 inch
Largeur
54 mm
Width (inches)
2,126 inch
Mounting dimension - height
75 mm
Net weight
353 g

Temperatures

보관 온도
-40 °C...85 °C
작동 온도
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data, remote alert

Connection type
PUSH IN
Cross-section for connected wire, solid core, max.
1,5 mm²
Cross-section for connected wire, solid core, min.
0,14 mm²
Stripping length
8 mm

General data

IP20
Colour
black
orange
Design
Installation housing; 3TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
UL 94 flammability rating
V-0
Version
with remote contact

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Photovoltaic technical data

Discharge current In (8/20 µs)
20 kA
Operating height in the grounded PV system
≤ 2000 m
Operating height in ungrounded PV system
≤ 4000 m
Protection level Up (+/- , -/PE , +/PE)
≤ 2 kV
PV system voltage, max. Ucpv
600 V
Requirements class
Type II
Short-circuit curent ISCPV
11.000 A
Standards
EN 61643-31
EN 50539-11
Total discharge current Itotal ( 8/20µs)
50 kA

Rated data IEC / EN

Discharge current Imax (8/20µs) wire-PE
50 kA
Integrated back-up fuse
No
Leakage current at Un
30 µA
Number of poles
3
Rated voltage (DC)
600 V
Requirements class, acc. to EN 61643-11
T2
Response time / fallback time
≤ 25 ns
Signalling contact
250 V 1A 1CO
SPD type
T2
Standards
EN 61643-31
EN 50539-11
Voltage type
DC

Connection data

Stripping length
18 mm
Type of connection
Screw connection
탈피 길이, 정격 결선
18 mm
조임 토크, 최소
3 Nm
Tightening torque, max.
4,5 Nm
Clamping range, rated connection
6 mm²
Clamping range, min.
1,5 mm²
Clamping range, max.
35 mm²
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
25 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Voltage type
DC

General data

Number of poles
3
IP20
Colour
black
orange

Záruka

Time interval
5 years

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-14-02
ECLASS 15.0
27-17-14-02
