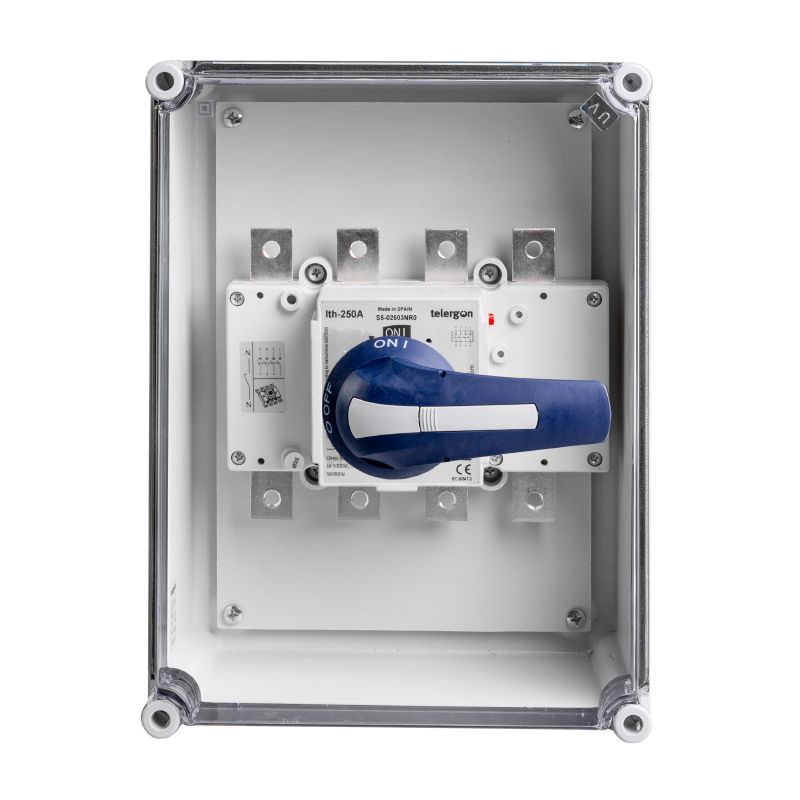

Fotovoltaico, Seccionador bajo carga, Interruptor separador, 600 V AC, 250 A, 4 polos, Interruptor manual

N.º de artículo 3103200000
Descargar hoja de datos Descargas de productos
Productos relacionados 7
Homologaciones Datos generales para pedido Dimensiones y pesos Temperaturas Conformidad medioambiental del producto Гарантия General data Load break switch Connection Control element Electrical characteristics Caja Kapcsoló leírása Clasificaciones Bases de licitación

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conformidad

Datos generales para pedido

Version
Fotovoltaico, Seccionador bajo carga, Interruptor separador, 600 V AC, 250 A, 4 polos, Interruptor manual
Order No.
3103200000
Type
AC SB M 250A 4POL CG 06KV
GTIN (EAN)
4099987148405
Cantidad
1 Pieza

Dimensiones y pesos

Depth
215 mm
Profundidad (pulgadas)
8,465 inch
Height
360 mm
Altura (pulgadas)
14,173 inch
Width
270 mm
Anchura (pulgadas)
10,63 inch
Peso neto
4.130 g

Temperaturas

Ambient temperature
-25 °C…55 °C

Conformidad medioambiental del producto

RoHS Compliance Status
Conforme sin exención
REACH SVHC
Sin SVHC por encima del 0,1 % en peso

Гарантия

Time interval
5 años

General data

Installation location
Geschützter Außenbereich (> 1 km vom Meer)
Protection degree
IP65
Standards
IEC 60947-3
IEC 61439-2

Load break switch

Connection type
Conexión brida-tornillo
Mechanical endurance class
M2 (5000)
Nominal current
250 A
Nominal voltage
400 V
Number of contacts as NC contact
0
Number of contacts as NO contact
4
Rated mainly active load-breaking current
250 A
Rated peak withstand current
12 kA
Rated short-circuit making current
20 kA
Voltage type
AC

Connection

Design as main switch
Ja
Device with pre-assembled cabling
No

Control element

Motor drive integrated
No
Motor drive optional
No
Type of actuator element
Mango rotatorio corto
Voltage release optional
No

Electrical characteristics

Conditioned rated short-circuit current Iq
12 kA
Rated operation power at AC-23, 400 V
138 kW
Rated permanent current at AC-21, 400 V
250 A
Rated permanent current at AC-23, 400 V
250 A
Switching power at 400 V, max.
173 kW

Caja

Construction type of device
Terepi eszköz
Suitable for distribution board installation
No
Suitable for front mounting 4-hole
Nem
Suitable for front mounting centre
아니오
Suitable for intermediate mounting
Nie

Kapcsoló leírása

Design as emergency stop installation
No
Design as maintenance- / service switch
Yes
Design as reversing switch
No
Design as safety switch
No
lockable
Oui
Neutral conductor with leading switching
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of switches
1
Počet pomocných kontaktů jako přepínací kontakt
0

Clasificaciones

ETIM 8.0
EC000216
ETIM 9.0
EC000216
ETIM 10.0
EC000216
ECLASS 14.0
27-37-14-03
ECLASS 15.0
27-37-14-03

Bases de licitación

Especificación larga

Load break Switch in polyester housing.
Suitable for disconnection on the AC side.
Number of poles: 4
Rated operational current (Ie) (Ie):
- according to IEC (AC-21): 250 A
Rated operational voltage (Ue):
- according to IEC: 690 V

Suitability for use:
Emergency Stop Switch: No
Main Switch: Yes

Number of contacts normally open: 4
Number of contacts normally closed: 0
Number of switching positions: 2
Lockable: Yes
The switch is mounted using 4 screws.
Protection class (IP): 65
Dimensions HxWxD: 360x270x215 mm.

Approved according to Low-voltage Switchgear and Controlgear: IEC 60947-3, DIN VDE 0660 Part 107 (EN 60947-3)
