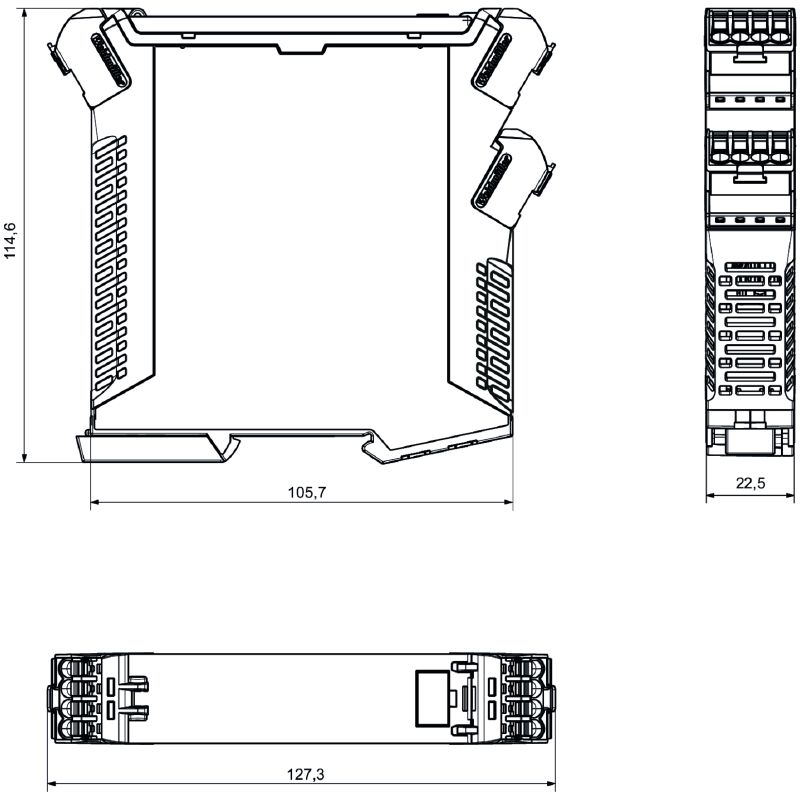

Dimensioned drawing
ACT20X-SAI-HAO-P
Derating curve
Removable terminals with coding

ACT20X-SAI-HAO-P

EX signal isolating converter, HART® transparency, 1-channel, Safe-input: 4-20mA, Ex output: 4 - 20 mA

Ürün No. 2456160000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Software Support Product Downloads
Aksesuarlar 3 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Assembling Input Output Output (Status) General specifications Insulation coordination Data for Ex applications (ATEX) Connection data Guarantee Part description Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E337701

General ordering data

Version
EX signal isolating converter, HART® transparency, 1-channel, Safe-input: 4-20mA, Ex output: 4 - 20 mA
Order No.
2456160000
Type
ACT20X-SAI-HAO-P
GTIN (EAN)
4050118471564
Qty.
1 adet

Dimensions and weights

Depth
114,6 mm
Depth (inches)
4,512 inch
Height
127,3 mm
Height (inches)
5,012 inch
Width
22,5 mm
Width (inches)
0,886 inch
Net weight
189 g

Temperatures

Storage temperature
-20 °C...85 °C
Operating temperature
-20 °C...60 °C
Humidity
0...95 % (no condensation)

Probability of failure

SIL PAPER
[SIL certificate](PDF/Cert_Weidmueller_070902_P0002_C007_V2R1.pdf)
SIL in compliance with IEC 61508
2
MTBF
135 a

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Assembling

Вид монтажа
TS 35
Монтажное положение
horizontal or vertical
Укомплектованная монтажная рейка
TS 35

Input

Input current
4…20mA
Number inputs
1
Voltage drop
<2 V

Output

Influence of load resistance
≤ 0.01% of span / 100 Ω
Load impedance current
≤ 725 Ω
Number of outputs, Ex
1
Output current
4…20 mA (max. 23 mA)
Output signal limit
<28 mA
Type
intrinsically safe circuit

Output (Status)

Alarm function
Device error
No supply voltage
Activation relay within set range, between 3,8 - 20,5 mA
Hysteresis
0.1 mA (switching threshold)
Number of alarm outputs
1
Névleges kapcsolási feszültség
≤ 125 V AC / 110 V DC (safe area)
≤ 32 V AC / 32 V DC (zone 2)
Power rating
≤ 62.5 VA / 32 W (safe area)
≤ 16 VA / 32 W (Zone 2)
Type
Status relay
1 NC (voltage-free)
연속 전류
≤ 0,5 A AC / 1 A DC (zone 2)

General specifications

Configuration
With FDT/DTM software
Requires configuration adapter 8978580000 CBX200 USB
dokładność
<0.1% span
HART® transparency supported
Yes
Matningsspänning
19.2…31.2 V DC
Operating altitude
≤ 2000 m
Step response time
≤ 5 ms
Temperature coefficient
<0.01% of span/°C (TU)
Type of connection
PUSH IN
Type of signal forwarding according to HART®
unchanged
Вид защиты
IP20
Влажность
0...95 % (no condensation)

Insulation coordination

EMC standards
EN 61326-1
Insulation voltage
2.6 kV (input / output)
Rated voltage
300 V
Standards
EN 61010-1

Data for Ex applications (ATEX)

ATEX - identificación de polvo
II (1) D [Ex ia Da] IIIC
I (M1) [Ex ia Ma] I
ATEX - označování plynu
II (1) G [Ex ia Ga] IIC/IIB/IIA
IECEx - gas labelling
Ex ec nC IIC T4 Gc
[Ex ia Ga] IIC/IIB/IIA
Potenza P0
<650 mW
Strom I0
93 mA
Voltage U0
28 V DC
설치 위치
Device installed in safe area, zone 2

Connection data

Type of connection
PUSH IN
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,2 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,2 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²

Guarantee

Time interval
3 years

Part description

Product description
The ACT20X-SAI-HAO-S is a HART-protocol, transparent current output isolator. A DC current input signal from the safe area will be galvanically separated and drives controlled field devices in Ex zone 0. The device is available as single-channel or dual-channel version.

Classifications

ETIM 8.0
EC002653
ETIM 9.0
EC002653
ETIM 10.0
EC002653
ECLASS 14.0
27-21-01-20
ECLASS 15.0
27-21-01-20
