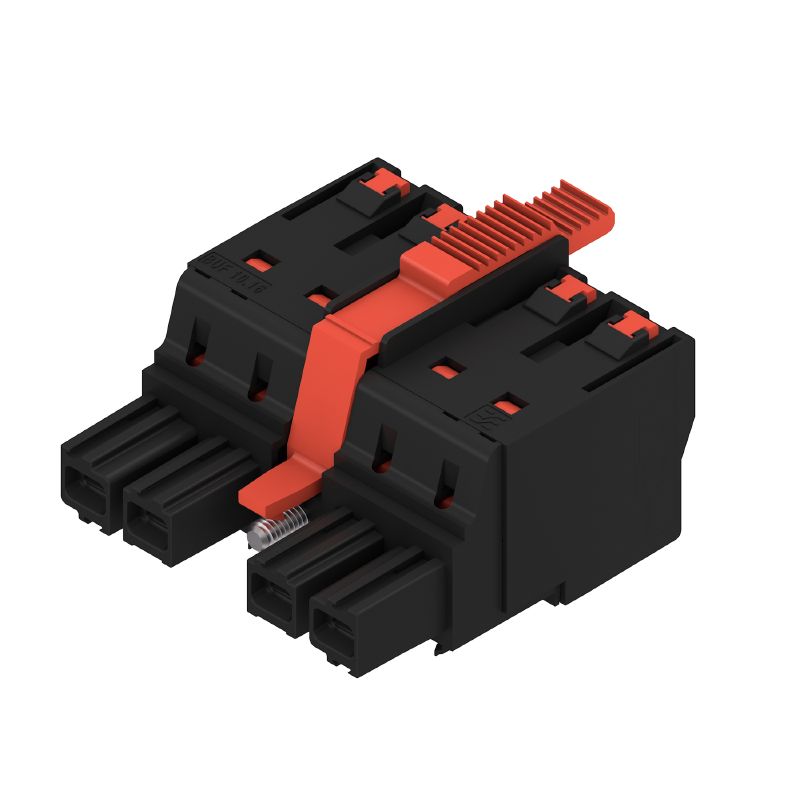

BUF 10.16IT/04/180MSF3 AG BK BX
PCB plug-in connector, female plug, 10.16 mm, Number of poles: 4, 180°, PUSH IN with actuator, Clamping range, max. : 16 mm², Box
Ürün No.
2493270000
Özellikler
| Version | PCB plug-in connector, female plug, 10.16 mm, Number of poles: 4, 180°, PUSH IN with actuator, Clamping range, max. : 16 mm², Box |
| Order No. | 2493270000 |
| Type | BUF 10.16IT/04/180MSF3 AG BK BX |
| GTIN (EAN) | 4050118503050 |
| Qty. | 24 adet |
| Product data |
IEC: 1000 V / 76 A / 2.5 - 16 mm² UL: 600 V / 51 A / AWG 12 - AWG 6 |
| Packaging | Box |
| Depth | 39,5 mm |
| Depth (inches) | 1,555 inch |
| Height | 33,3 mm |
| Height (inches) | 1,311 inch |
| Width | 50,8 mm |
| Width (inches) | 2 inch |
| Net weight | 14 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6aI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | a9fcc928-8cc3-4126-aede-eb294a2dd7f6 |
| Product family | OMNIMATE Power - series BU/SU 10.16 |
| Type of connection | Field connection |
| Wire connection method | PUSH IN with actuator |
| Pitch in mm (P) | 10,16 mm |
| Pitch in inches (P) | 0,4 " |
| Conductor outlet direction | 180° |
| Number of poles | 4 |
| L1 in mm | 40,64 mm |
| L1 in inches | 1,6 " |
| Number of rows | 1 |
| Pin series quantity | 1 |
| Rated cross-section | 16 mm² |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from finger touch |
| Touch-safe protection acc. to DIN VDE 0470 | IP 20 |
| Protection degree | IP20 |
| Can be coded | Yes |
| Stripping length | 18 mm |
| Tightening torque for screw flange, min. | 0,3 Nm |
| Tightening torque for screw flange, max. | 0,4 Nm |
| Screwdriver blade | 0.8 x 4.0 |
| Screwdriver blade standard | DIN 5264 |
| Plugging cycles | 25 |
| Plugging force/pole, max. | 15 N |
| Pulling force/pole, max. | 15 N |
| Insulating material | PA GF |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | II |
| Comparative Tracking Index (CTI) | ≥ 400 |
| Insulation strength | ≥ 10⁸ Ω |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | silver-plated |
| Layer structure of plug contact | ≥ 3 µm Ag |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Clamping range, min. | 2,5 mm² |
| Clamping range, max. | 16 mm² |
| Wire connection cross section AWG, min. | AWG 12 |
| Wire connection cross section AWG, max. | AWG 4 |
| Solid, min. H05(07) V-U | 2,5 mm² |
| Solid, max. H05(07) V-U | 10 mm² |
| Stranded, min. H07V-R | 10 mm² |
| Stranded, max. H07V-R | 16 mm² |
| Flexible, min. H05(07) V-K | 2,5 mm² |
| Flexible, max. H05(07) V-K | 16 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 2,5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 16 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 2,5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 16 mm² |
| Clampable conductor |
|
| Reference text | Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Rated current, min. number of poles (Tu=20°C) | 76 A |
| Rated current, max. number of poles (Tu=20°C) | 71 A |
| Rated current, min. number of poles (Tu=40°C) | 70 A |
| Rated current, max. number of poles (Tu=40°C) | 62 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 1.000 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 1.000 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 1.000 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 8 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 8 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 8 kV |
| Short-time withstand current resistance | 3 x 1s with 800A |
| Institute (cURus) | CURUS |
| Certificate No. (cURus) | E60693 |
| Rated voltage (Use group B / UL 1059) | 600 V |
| Rated voltage (Use group C / UL 1059) | 600 V |
| Rated current (Use group B / UL 1059) | 51 A |
| Rated current (Use group C / UL 1059) | 51 A |
| Wire cross-section, AWG, min. | AWG 12 |
| Wire cross-section, AWG, max. | AWG 6 |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Packaging | Box |
| VPE length | 342 mm |
| VPE width | 180 mm |
| VPE height | 70 mm |
| Test: Durability of markings |
|
| Test: Clampable cross section |
|
| Test for damage to and accidental loosening of conductors |
|
| Pull-out test |
|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_39757) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2493270000) |
| Product Change Notification |
[20220208 Visual change Temporarily different color for connectors and accessories](https://mdcop.weidmueller.com/mediadelivery/asset/900_251161)
[20220208 Visuelle Änderung Vorübergehend anderer Farbton für Steckverbinder und Zubehör](https://mdcop.weidmueller.com/mediadelivery/asset/900_251162) |
| User Documentation |
[Assembly instructions PUSH IN connector with actuator – BUF 10.16 IT](https://mdcop.weidmueller.com/mediadelivery/asset/900_58186)
[QR-Code product handling video](https://mdcop.weidmueller.com/mediadelivery/asset/900_78427) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002638 |
| ETIM 7.0 | EC002638 |
| ETIM 8.0 | EC002638 |
| ETIM 9.0 | EC002638 |
| ECLASS 9.0 | 27-44-03-09 |
| ECLASS 9.1 | 27-44-03-09 |
| ECLASS 10.0 | 27-44-03-09 |
| ECLASS 11.0 | 27-46-02-02 |
| ECLASS 12.0 | 27-46-02-02 |
| ECLASS 13.0 | 27-46-02-02 |
| ECLASS 14.0 | 27-46-02-02 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E60693 |
