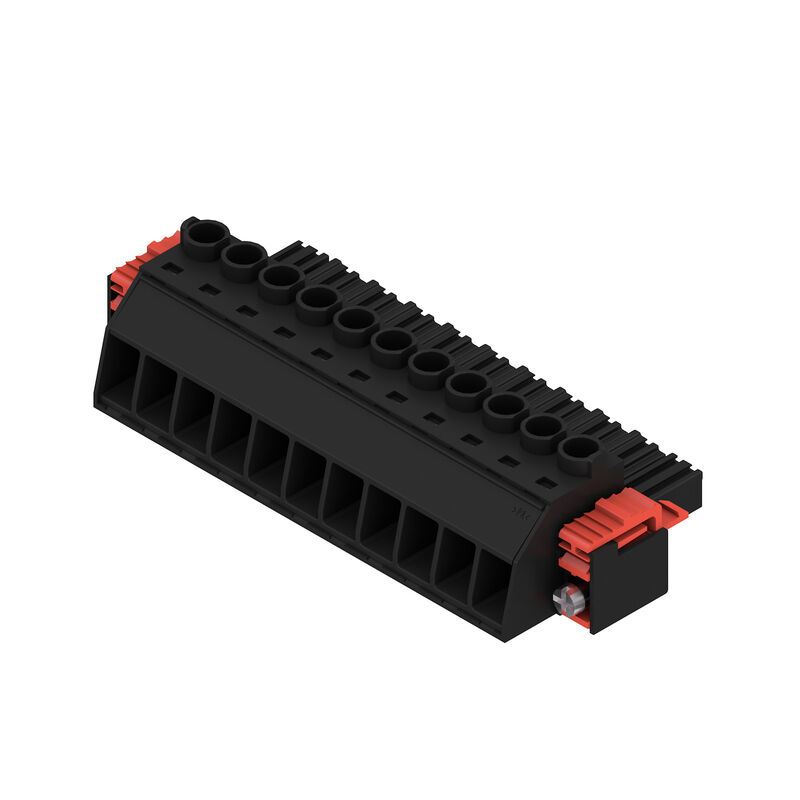

BVZ 7.62HP/11/180SF SN BK BX
Product image

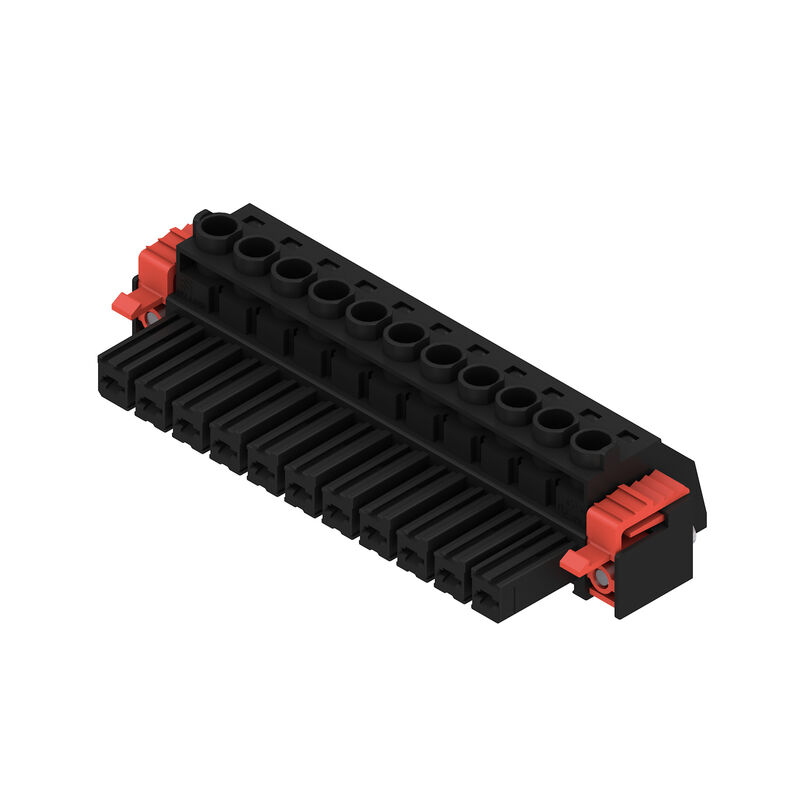

BVZ 7.62HP/11/180SF SN BK BX
Product image
BVZ 7.62HP/11/180SF SN BK BX
Dimensional drawing
BVZ 7.62HP/11/180SF SN BK BX
Graph
BVZ 7.62HP/11/180SF SN BK BX
Graph

BVZ 7.62HP/11/180SF SN BK BX

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 11, 180°, Clamping yoke connection, Clamping range, max. : 10 mm², Box

Item No. 1930250000
Download data sheet Engineering Support Product Downloads
Accessories 4 Counterparts 2 Related products 10
Сертификаты General ordering data Mått och vikter Miljööverenstämmelse för produkt System Parameters Materialdata Провода, подходящие для подключения Номинальные характеристики по IEC Märkdata enligt CSA Rated data acc. to UL 1059 Packaging Type tests Important note Classifications

Сертификаты

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 7.62 mm, Number of poles: 11, 180°, Clamping yoke connection, Clamping range, max. : 10 mm², Box
Order No.
1930250000
Type
BVZ 7.62HP/11/180SF SN BK BX
GTIN (EAN)
4032248580125
Ilość
50 items
Product data
IEC: 1000 V / 57 A / 0.2 - 10 mm²
UL: 600 V / 40.5 A / AWG 24 - AWG 8
Packaging
Box

Mått och vikter

Depth
42.1 mm
Głębokość (cale)
1.657 inch
Height
23.1 mm
Height (inches)
0.909 inch
Width
99.06 mm
Width (inches)
3.9 inch
Masa netto
59.967 g

Miljööverenstämmelse för produkt

RoHS Compliance Status
Kompatibel utan undantag
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

제품군
OMNIMATE Power - series BV/SV 7.62HP
결선 유형
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
7.62 mm
Pitch in inches (P)
0.3 "
Conductor outlet direction
180°
극 수
11
L1(mm)
76.2 mm
L1(인치)
3 "
Number of rows
1
핀 시리즈 수량
1
정격 단면적
6 mm²
DIN VDE 57 106에 따른 터치 안전 보호
Safe from finger touch
DIN VDE 0470에 따른 터치 안전 보호
IP 20
보호 등급
IP20
볼륨 저항
4.50 mΩ
코딩 가능
Yes
Długość odizolowania
12 mm
Moment dokręcania dla kołnierza śrubowego, min.
0.2 Nm
Moment dokręcania dla kołnierza śrubowego, maks.
0.3 Nm
Tightening torque, min.
0.5 Nm
Tightening torque, max.
0.6 Nm
Clamping screw
M 3
Screwdriver blade
0.6 x 3.5
Plugging cycles
25
Plugging force/pole, max.
16.5 N
Pulling force/pole, max.
11 N

Materialdata

Insulating material
PA GF
Colour
black
Colour chart (similar)
RAL 9011
grupa materiałów izolacyjnych
II
Porównywalny wskaźnik śledzenia (CTI)
≥ 500
UL 94 flammability rating
V-0
Contact base material
Copper alloy
Contact material
Copper alloy
Powierzchnia styku
tinned
Struktura warstwowa wtyku
6...8 µm Sn glossy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
125 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Провода, подходящие для подключения

Clamping range, min.
0.2 mm²
Clamping range, max.
10 mm²
przekrój przyłącza przewodu AWG, min.
AWG 24
Wire connection cross section AWG, max.
AWG 8
jednodrutowe, min. H05(07) V-U
0.2 mm²
jednodrutowe, maks. H05(07) V-U
6 mm²
cienkodrutowe, min. H05(07) V-K
0.2 mm²
cienkodrutowe, maks. H05(07) V-K
10 mm²
z AEH z kołnierzem DIN 46 228/4, min.
0.2 mm²
z AEH z kołnierzem DIN 46 228/4, maks.
6 mm²
z tulejką zaciskową, DIN 46228 pt 1, min.
0.5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
6 mm²
Sprawdzian trzpieniowy EN 60999 a x b; ø
2.8 mm x 2.0 mm; 2.4 mm
Zaciskany przewód
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      1076980000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9025930000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9019140000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9004060000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0.75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9025910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2.5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019170000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0186100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0244100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0533500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0191900000
Tekst referencyjny
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Номинальные характеристики по IEC

пройдены испытания по стандарту
IEC 60664-1
IEC 61984
Prąd znamionowy, min. liczba biegunów (Tu=20°C)
57 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
54 A
Rated current, min. number of poles (Tu=40°C)
51 A
Prąd znamionowy, maks. liczba biegunów (Tu=40°C)
41 A
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia II/2
1,000 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/2
1,000 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/3
800 V
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia II/2
6,000 V
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/3
8 kV
odporność na zwarcia
3 x 1s with 420 A
Odstęp izolacyjny po izolacji, min.
13.8 mm
Odstęp izolacyjny powietrzny, min.
10.2 mm

Märkdata enligt CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1534443
Rated voltage (Use group B / CSA)
600 V
Rated voltage (Use group C / CSA)
600 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
40.5 A
Rated current (Use group C / CSA)
40.5 A
Rated current (Use group D / CSA)
5 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 8
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

협회(cURus)
CURUS
인증 번호(cURus)
E60693
정격 전압(사용 그룹 B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
정격 전압(사용 그룹 D / UL 1059)
600 V
Rated voltage (Use group F / UL 1059)
1,000 V
정격 전류(사용 그룹 B / UL 1059)
40.5 A
정격 전류(사용 그룹 C / UL 1059)
40.5 A
정격 전류(사용 그룹 D / UL 1059)
5 A
정격 전류(사용 그룹 F / UL 1059)
40.5 A
와이어 단면적, AWG, 최소
AWG 24
와이어 단면적, AWG, 최대
AWG 8
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packaging

Packaging
Box
VPE length
347 mm
VPE width
133 mm
VPE height
140 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, pitch, type of material
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Misengagement (Non-interchangeability)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN IEC 512 part 7 section 5 / 05.94
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
    • Type of conductor and conductor cross-section:
      solid 6 mm²
    • Type of conductor and conductor cross-section:
      stranded 6 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 10/1
    • Type of conductor and conductor cross-section:
      AWG 10/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    1.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 6 mm²
    • Type of conductor and conductor cross-section:
      stranded 6 mm²
    • Type of conductor and conductor cross-section:
      AWG 10/1
    • Type of conductor and conductor cross-section:
      AWG 10/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    ≥80 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 6 mm²
    • Type of conductor and conductor cross-section:
      stranded 6 mm²
    • Type of conductor and conductor cross-section:
      AWG 10/1
    • Type of conductor and conductor cross-section:
      AWG 10/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
