Özellikler
| Version | FrontCom, Touch-safe protection, Single frame |
| Order No. | 1450820000 |
| Type | IE-FC-PWPC |
| GTIN (EAN) | 4050118255584 |
| Qty. | 1 adet |

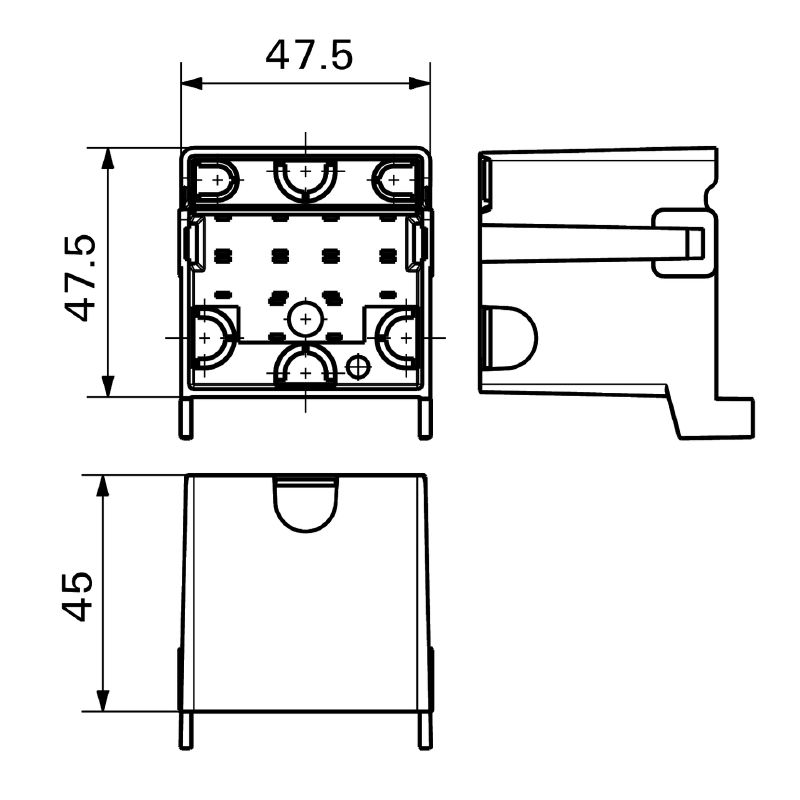

| Height | 45 mm |
| Height (inches) | 1,772 inch |
| Width | 47.5 |
| Width (inches) | 1,87 inch |
| Length | 47,5 mm |
| Length (inches) | 1,87 inch |
| Net weight | 19,18 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 8a473a8a-33d4-4318-8088-c28f019e7f77 |
| Material | PC |
| Product type |
Touch-safe protection
Single frame |
| Certificate No. (cURus) | E223801 |
| Certificate No. (DNV) | TAA000022B |
| Approval/Certificate/Document of Conformity | [GL_FrontCom](https://mdcop.weidmueller.com/mediadelivery/asset/900_58424) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_97722) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1450820000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1450820000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC002498 |
| ETIM 7.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 9.0 | EC002498 |
| ECLASS 9.0 | 27-37-92-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-37-13-92 |
| ECLASS 11.0 | 27-37-13-92 |
| ECLASS 12.0 | 27-37-13-92 |
| ECLASS 13.0 | 27-37-13-92 |
| ECLASS 14.0 | 27-37-13-92 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E223801 |
