Photovoltaics, Combiner Box, Fireman's switch, PV Next, 2 MPP's, 2 Inputs / 1 Output per MPP, Remote disconnector, MC4-Evo 2, 1100 V

Product ID 2888530000
Gegevensblad downloaden Product Downloads Engineering Support
Toebehoren 10 Is accessoire van 2 Verwante producten 25
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Guarantee Electrical characteristics Enclosure General data Inputs Outputs Remote disconnector Important note Classifications Tender specification sheets

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Combiner Box, Fireman's switch, PV Next, 2 MPP's, 2 Inputs / 1 Output per MPP, Remote disconnector, MC4-Evo 2, 1100 V
Order No.
2888530000
Type
PVN DC 2I 1O 2MPP RD EVO 11
GTIN (EAN)
4064675875574
Qty.
1  items

Dimensions and weights

Depth
135  mm
Depth (inches)
5,315  inch
Height
370  mm
Height (inches)
14,567  inch
Width
200  mm
Width (inches)
7,874  inch
Net weight
2.538  g

Temperatures

Ambient temperature
-20 °C…50 °C
Humidity
5...95 %, no condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
bdab5698-6a20-4370-8e28-8810d882d01a

Guarantee

Time interval
5 years

Electrical characteristics

Current per Maximum Power Point, max.
44  A
Rated DC voltage
1.100  V
Rated short-term current resistance
  • Rated current:
    55 A

Enclosure

Connection type string
Plug MC4-Evo 2
Enclosure attachment
Via mounting foots
Impact resistance
IK08 in accordance with IEC 62208
IK10 in accordance with IEC 62262
Insulating material
Polyester glass-fibre reinforced, Polycarbonate
Protection class
II
Type of mounting
Wall mounting

General data

Installation location
Protected outdoor area (>1 km from sea)
Protection degree
IP65

Inputs

Amount of maximum power points (MPP)
2
DC Input + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2,5 mm²
    • Wire cross-section, max.:
      16 mm²
Fuse type
Neither fuse cartridge nor holder
Max. number of DC inputs
per Maximum Power Point 2 inputs connected in parallel
Number of conduit inlets
8
Number of string inputs per MPP
≤ 2
Number of inputs
4

Outputs

DC Output + & -
  • Wire connection:
    • Type of connection:
      Stäubli MC4-Evo 2 connector
    • Compatible cable crossection:
      TÜV 2 Pfg1169/08.07
    • Wire cross-section, min.:
      2,5 mm²
    • Wire cross-section, max.:
      16 mm²
Max. number of DC outputs
per Maximum Power Point 1 output

Remote disconnector

Automatic reclosing after voltage drop
Yes
Number of operating cycles
10000
Control voltage
100 V AC - 250 V AC 50/60Hz
Remote disconnector auxiliary contact
  • Cable entry:
    • Number of cable entries:
      1
  • Wire connection:
    • Type of connection:
      Screw terminal connectors
    • Flexible, max. H05(07) V-K:
      1,5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1,5 mm²
Remote disconnector control contact
  • Cable entry:
    • Number of cable entries:
      1
  • Wire connection:
    • Type of connection:
      Screw terminal connectors
    • Flexible, max. H05(07) V-K:
      1,5 mm²
    • w. wire end ferrule, DIN 46228 pt 1, max.:
      1,5 mm²
Type of power circuit disconnection
Under voltage tripping
Turn-off time
1.5 s
Current consumption of switch
  • Type of switch:
    Fireman switch
  • Current consumption, note:
    The Peak current only arises for a short time when the capacitors of the fireman switch were previously completely discharged.
  • Current consumption peak:
    300 mA
  • Current consumption continuous:
    30 mA
Number of breaking operation cycles at rated current
300
Switch disconnector execution
Remote disconnector inside enclosure
Switching disconnector capacity
IEC 60947-3
DC-PV1

Important note

Product information
The SCIP number was assigned due to a lead content of more than 0.1 % of the net weight.

Safe use instruction according to ECHA:
The identification of the hazardous substance is sufficient to allow safe use of the article throughout its life cycle, including the service life, disassembly and waste/recycling phase

Classifications

ETIM 6.0
EC002928
ETIM 7.0
EC002928
ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 9.0
22-57-92-03
ECLASS 9.1
22-57-02-90
ECLASS 10.0
22-57-02-90
ECLASS 11.0
22-57-02-92
ECLASS 12.0
22-57-02-92
ECLASS 13.0
22-57-02-92
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92

Tender specification sheets

Long specification

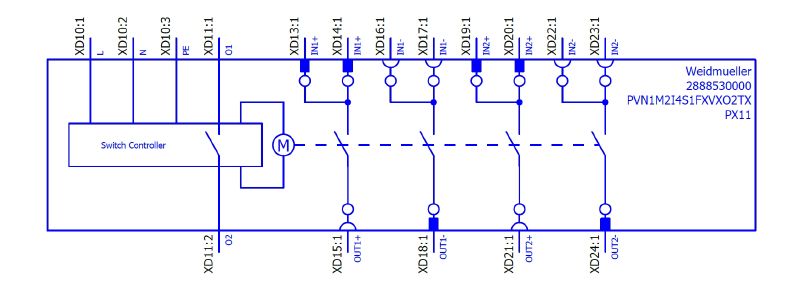

Automatic ON and OFF switching fireman switch for the connection to 2 MPP tracker in the inverter.
Suitable for remote disconnection of the DC side by the fire department.
Max. string voltage Uoc: 1100V

MPP1:
2 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063
1 output, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063

MPP2:
identical to MPP1

DC fireman switch:
Switching off by undervoltage tripping.
Automatic reconnection after the control voltage (230 V AC) is applied again.
With signal contact.

Connection of the fireman switch control line 230 VAC via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm².
Connection of the signal contact 24 VDC via cable glands (8-12mmØ) max. conductor cross-section: 1.5mm².
Protection class: IP65.

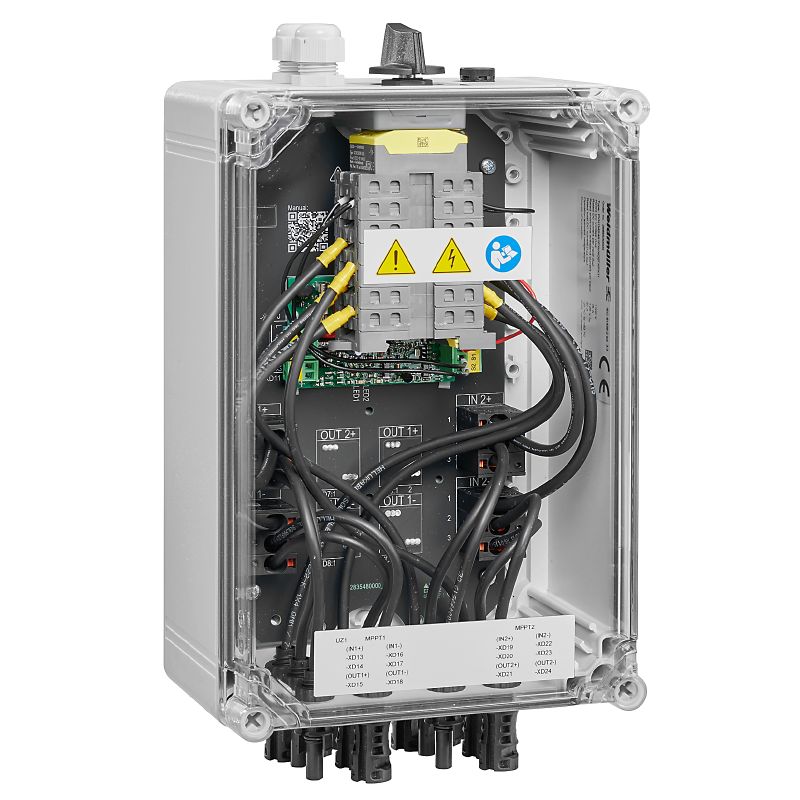

All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 370x200x135mm.

Approval according to low voltage switchgear IEC 61439-1:2011 and EN 61439-2:2011
