SAIL-M12BW-CD-5.0A
SAIL-M12BW-CD-5.0A
Dibujo acotado
Socket
SAIL-M12BW-CD-5.0A
Esquema de polos
M12 = A-coded
SAIL-M12BW-CD-5.0A
Esquema de conexiones
SAIL-M12BW-CD-5.0A
La herramienta perfecta: Screwty ® con función de par de apriete
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BW-CD-5.0A

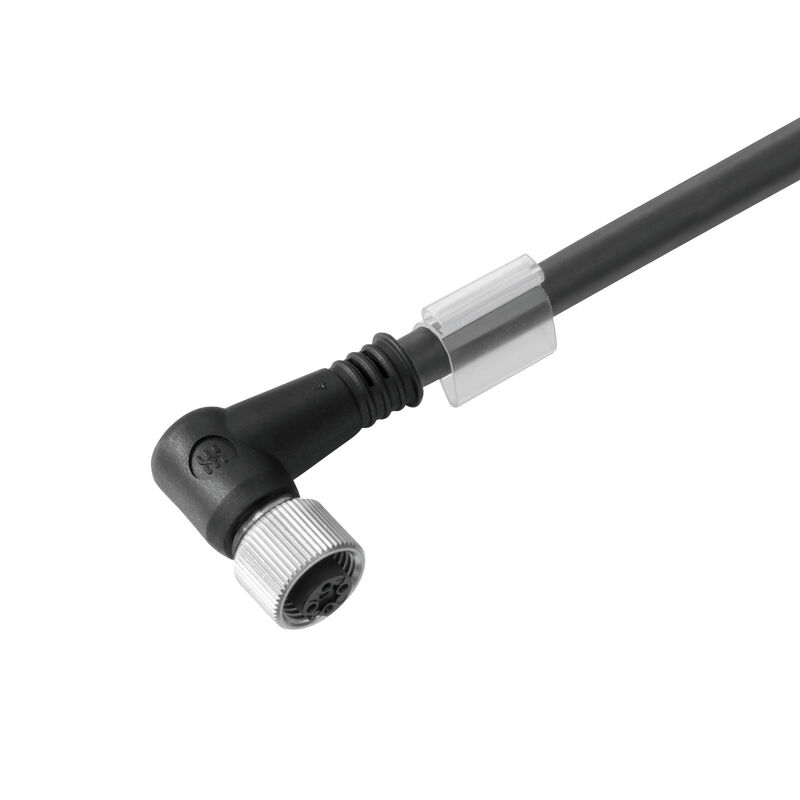

Cavo per bus, Un’estremità senza connettore, M12, Numero di poli: 5, 5 m, Connettore femmina angolato, Schermato: Sì, LED: No, Materiale della guaina: PUR, Alogeni: No

N.º de artículo 1061980500
Descargar hoja de datos Soporte técnico Descargas de productos
Productos relacionados 4
Omologazioni Dati generali per l’ordinazione 치수 및 중량 Conformità ambientale del prodotto Technical specifications for cable Caractéristiques techniques générales Propriétés électriques Normes générales Dugó, bal Dugó, jobb 분류

Omologazioni

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
준수
UL File Number Search
[UL 웹사이트](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

Dati generali per l’ordinazione

Version
Cavo per bus, Un’estremità senza connettore, M12, Numero di poli: 5, 5 m, Connettore femmina angolato, Schermato: Sì, LED: No, Materiale della guaina: PUR, Alogeni: No
Order No.
1061980500
Type
SAIL-M12BW-CD-5.0A
GTIN (EAN)
4032248811649
Qty.
1 items

치수 및 중량

Length
5 m
Length (inches)
196,85 inch
Net weight
326 g

Conformità ambientale del prodotto

RoHS Compliance Status
Conforme con esenzione
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
7 m/s²
Bending cycles
5 Mio
Bending radius, min., moving
10 x diamètre du câble
Cable length
5 m
Colour coding
Rouge
noir
blanc
bleu
Configurable cable length
Non
Core cross-section
0,34 mm²
Halogen
Non
Hybrid cable
Oui
Insulation
PE
Irradiation crosslinked
Non
Number of poles
5
Number of wires
5
Outside diameter
6.9 mm ± 0.3 mm
Resistance to oils
EN 50363-10-2
Resistance to spread of flame
in accordance with IEC 60332-1-2
Az UL1581 UL/ CUL FT1 szerint
Resistant to welding beads
Nem
Sheath material
PUR
Sheathing colour
ibolyaszín
Shielded
Igen
Speed
180 m/min
Suitable for cable carriers
Sì
Temperature range, moving
-20...80 °C
Welding spark resistance
No
Wire cross section (Print/Online)
2x 0,34 mm² + 2x 0,22 mm²

Caractéristiques techniques générales

Coding
Codage A
Connection thread
M12
Contact material
CuZn35PB2
Contact surface
doré
Housing main material
PUR
jumpered
Non
LED
Non
Nominal current
4 A
Nominal voltage
125 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Temperature range of housing
-25…+80 °C
Threaded ring material
ottone, nichelato
Tightening torque
M12: 0,8 - 1,2 Nm
Version
Connettore femmina angolato

Propriétés électriques

Nominal voltage
125 V

Normes générales

Certificate no. (cULus)
E307231
Connector standard
CEI 61076-2-101

Dugó, bal

Plug left
M12, A kódolású, Pólusok száma: 5, IP67, hüvelyes érintkező, 0°-os szög, csatlakozó, árnyékolt

Dugó, jobb

Plug right
Szabad vezetékvég

분류

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
