STB 35 IH/GN

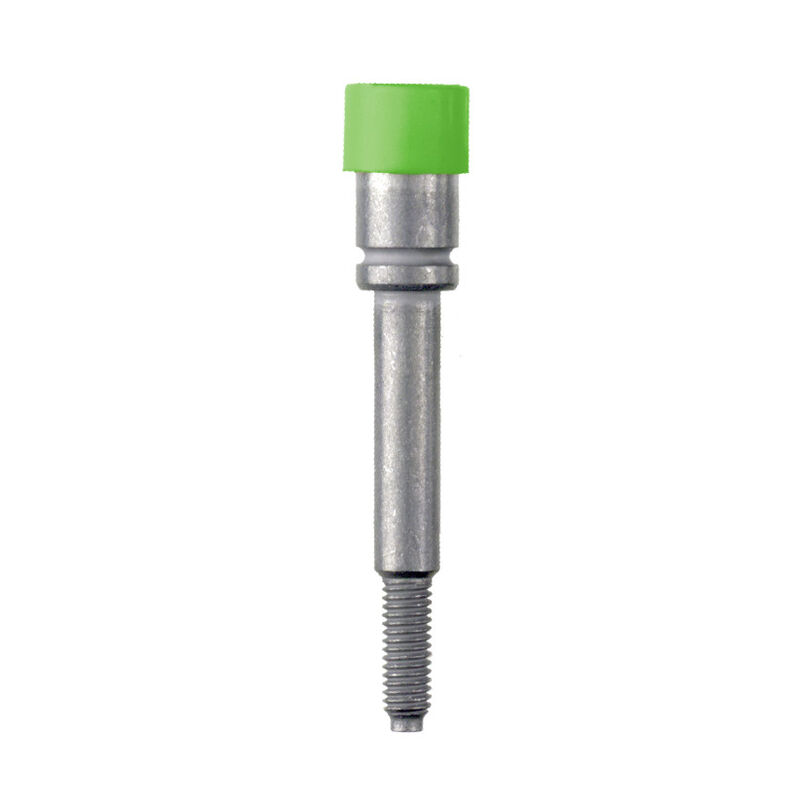

Product image

STB 35 IH/GN

Socket (terminal), Plug-in depth: 8 mm, Depth: 37.5 mm

Product ID 0388900000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Is accessoire van 2 Verwante producten 104
Approvals General ordering data Rozměry a hmotnosti Temperaturen Environmental Product Compliance Material data System specifications Additional technical data Dimensions Imágenes del producto 분류

Approvals

ROHS
Conform

General ordering data

Version
Socket (terminal), Plug-in depth: 8 mm, Depth: 37.5 mm
Order No.
0388900000
Type
STB 35 IH/GN
GTIN (EAN)
4008190010409
Qty.
50 items

Rozměry a hmotnosti

Depth
37,5 mm
Depth (inches)
1,476 inch
Width
7,2 mm
Width (inches)
0,283 inch
Net weight
2,18 g

Temperaturen

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…55 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

RoHS Compliance Status
Konform mit Ausnahme
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
dce63e23-eea1-4eaa-9071-1c98fc8fa2ea

Material data

Basic material
PA 66
Colour
green
UL 94 flammability rating
V-2

System specifications

Version
For the mounting rails

Additional technical data

Explosion-tested version
No
Type of fixing
when screwed in
Type of mounting
when screwed in

Dimensions

Plug-in depth
8 mm

Imágenes del producto

Illustration title 02
Illustration du produit
Kép alcím-02
그림과 유사

분류

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
