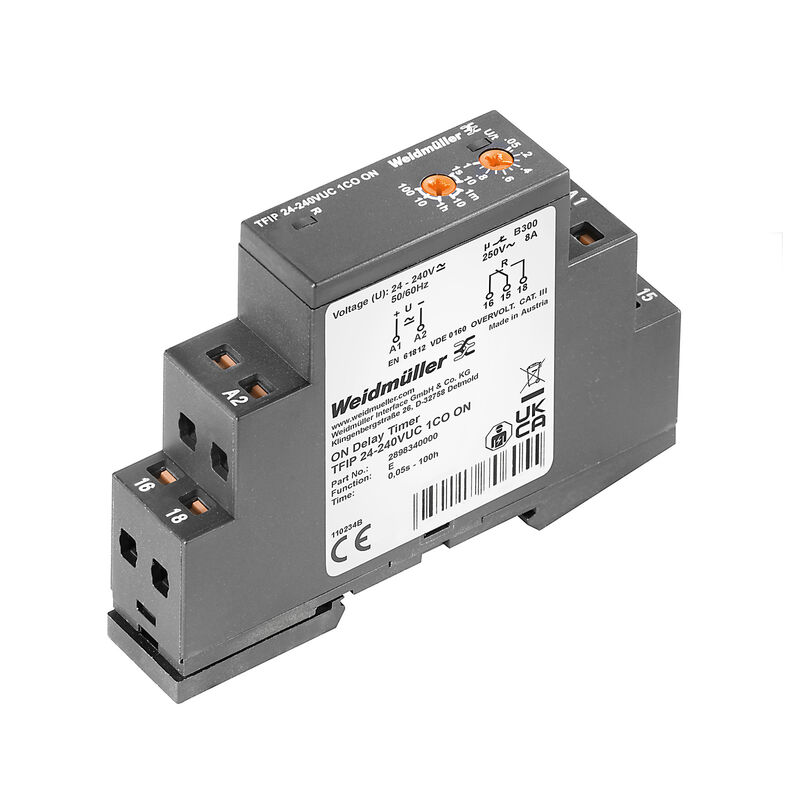

Product image
TFIP 24-240VUC 1CO ON

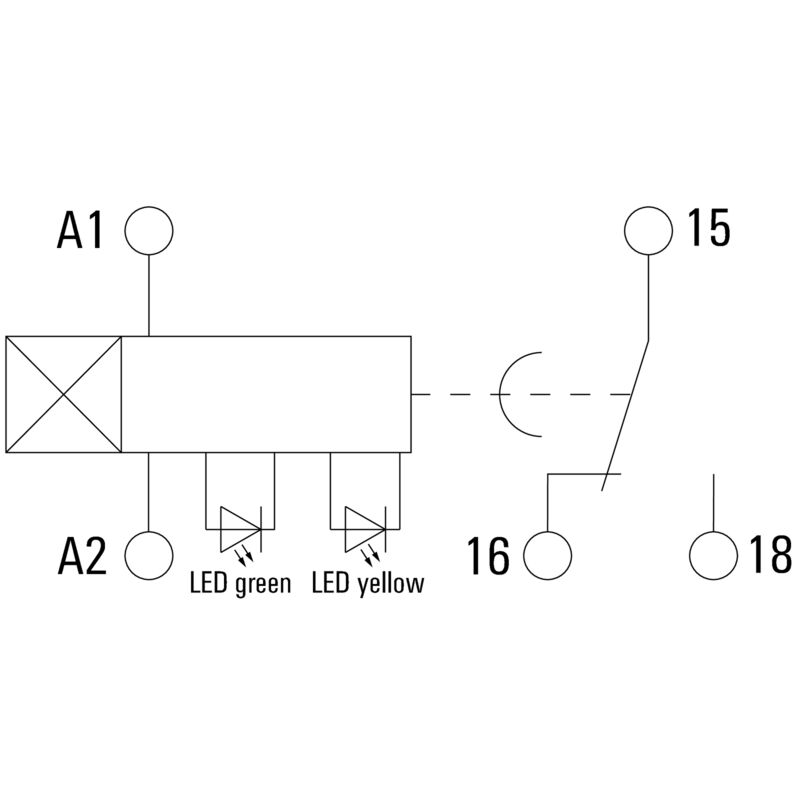

Wiring diagram
TFIP 24-240VUC 1CO ON
Dimensional drawing
TFIP 24-240VUC 1CO ON
Miscellaneous

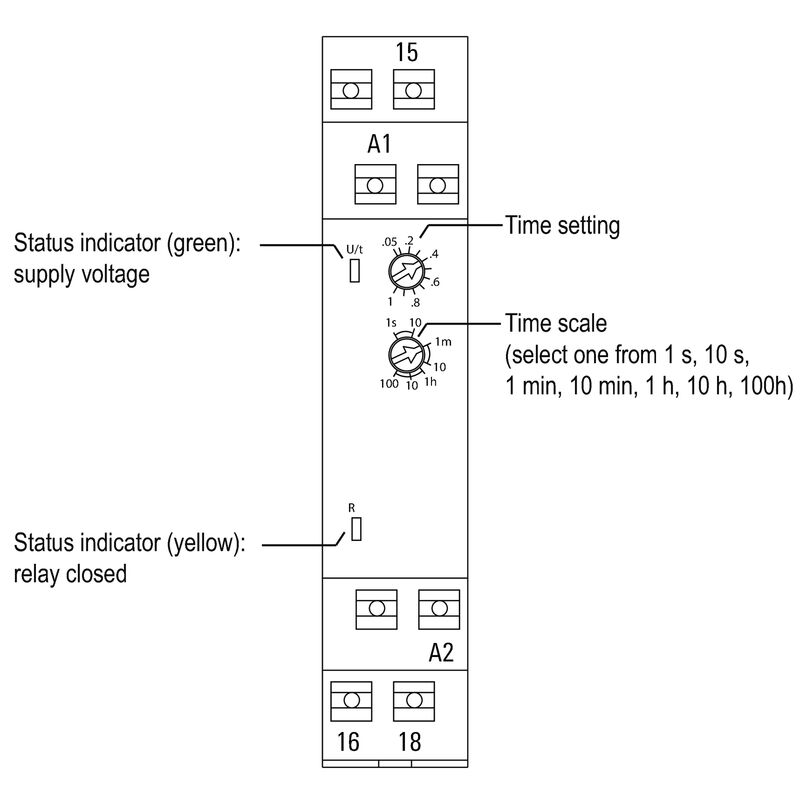

Detailed drawing
TFIP 24-240VUC 1CO ON
Graph

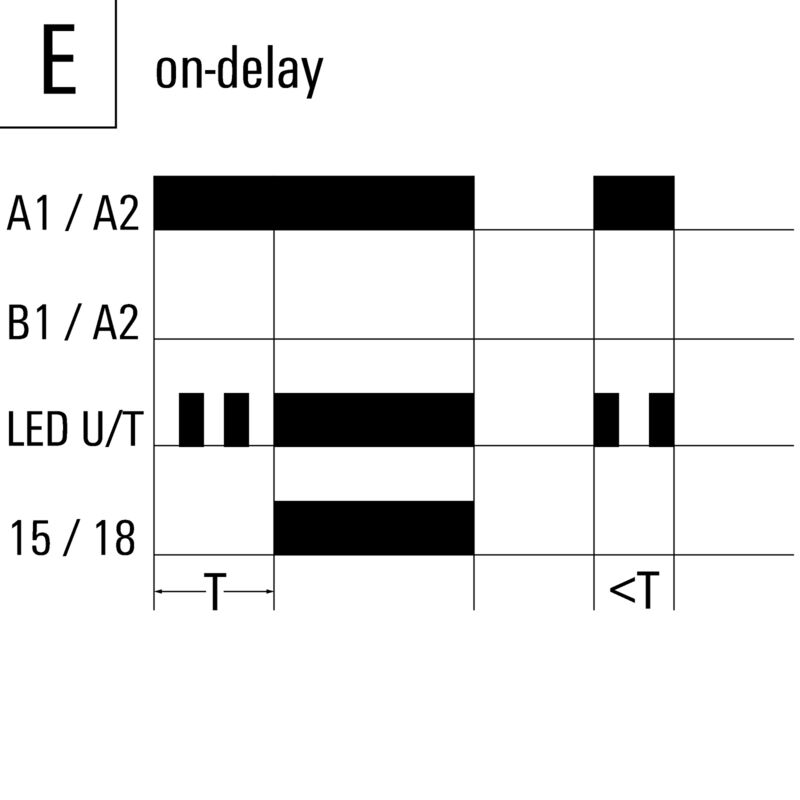

Time functions
TFIP 24-240VUC 1CO ON
Type codes
Miscellaneous

TFIP 24-240VUC 1CO ON

TFI-SERIES, Einschaltverzögertes Relais, Anzahl Kontakte: 1, Wechsler, AgNi, Nennsteuerspannung: 24...240 V UC -15 % / +10 %, Dauerstrom: 8 A, PUSH IN

Item No. 2898340000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 8 Related products 4
Zulassungen Allgemeine Bestelldaten Abmessungen und Gewichte Temperaturen Umweltanforderungen Steuerseite Lado de carga General data Coordinación de aislamiento 인증/표준의 추가 세부 사항 Anschlussdaten Clasificaciones

Zulassungen

Approvals
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E360862

Allgemeine Bestelldaten

Version
TFI-SERIES, Einschaltverzögertes Relais, Anzahl Kontakte: 1, Wechsler, AgNi, Nennsteuerspannung: 24...240 V UC -15 % / +10 %, Dauerstrom: 8 A, PUSH IN
Order No.
2898340000
Type
TFIP 24-240VUC 1CO ON
GTIN (EAN)
4064675903673
Qty.
1 items

Abmessungen und Gewichte

Depth
60 mm
Tiefe (inch)
2.362 inch
Height
87 mm
Altura (pulgadas)
3.425 inch
Width
17.5 mm
Width (inches)
0.689 inch
순중량
55 g

Temperaturen

Storage temperature
-25 °C...70 °C
Ambient temperature
-25 °C…55 °C
Humidity
15…85 % rel. páratartalom, páralecsapódás nélkül

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
No SVHC above 0.1 wt%

Steuerseite

Rated control voltage
24...240 V UC -15 % / +10 %
Power rating
4 VA
1,5 W
Status indicator
LED green (U/t): flashes when time runs, lights permanently with supply voltage applied
LED yellow (R): relay closed
Time ranges
0.05 s - 1 s
0.5 s - 10 s
3 s - 60 s
30 s - 10 min
3 min - 1 h
30 min - 10 h
5 h - 100 h
Setting tolerance
5 %
Max. reset time after voltage interruption
100 ms
Basic accuracy
±6% (of scale-end value, for time range 0.05 s - 1 s)
±1% (of scale-end value, for all other time ranges)
Min. pulse duration
100 ms
Repeat accuracy
<0.5 % or ±5 ms

Lado de carga

Rated switching voltage
250 V AC
Continuous current
8 A
Max. switching voltage, AC
250 V
Max. switching voltage, DC
30 V
Min. kapcsolási teljesítmény
10 mA @ 12 V
100 mA @ 5 V
AC switching capacity (resistive), max.
2000 VA
DC switching capacity (resistive), max.
240 W
Contact type
1 CO contact (AgNi)
Electrical service life, DC coil
2x105 switching cycles (1000 VA ohm load)
Mechanical service life
20 x 106 switching cycles

General data

Design
Installation housing; 1TE
Suitable for front mounting
No
Mounting rail
TS 35
Test button available
No
Mechanical switch position indicator
No
Szín
fekete
UL 94 flammability rating
V-0
UL94 flammability rating component
  • Alkatrész:
    Ház
  • UL94 éghetőségi osztály:
    V-0
Resistance to vibration EN 61812-1
10 Hz...60 Hz: 0.15 mm
60 Hz...150 Hz: 2 g

Coordinación de aislamiento

Rated voltage
300 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 3 mm
Dielectric strength for control side - load side
1.6 kV
Impulse withstand voltage
4 kV
Protection degree
IP20

인증/표준의 추가 세부 사항

Certificate no. (cULus)
E360862

Anschlussdaten

Wire connection method
PUSH IN
Stripping length, rated connection
8 mm
Clamping range, rated connection
2.5 mm²
Clamping range, min.
0.2 mm²
Clamping range, max.
2.5 mm²
Vezeték csatlakozási keresztmetszet AWG, min.
AWG 24
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 14
Wire cross-section, solid, min.
0.2 mm²
Sezione di collegamento cavo, rigido, max.
2.5 mm²
와이어 결선 단면, 가는 꼬임, 최소
0.2 mm²
와이어 결선 단면, 가는 꼬임, 최대
2.5 mm²
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/4 채용 가는 꼬임, 최소
0.25 mm²
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/4 채용 가는 꼬임, 최대
1.5 mm²
컨덕터 단면, 연선, AEH(DIN 46228-1), 최소
0.25 mm²
컨덕터 단면, 연선, AEH(DIN 46228-1), 최대
1.5 mm²
Blade size
0.6 x 3.5 mm

Clasificaciones

ETIM 8.0
EC001439
ETIM 9.0
EC001439
ETIM 10.0
EC001439
ECLASS 14.0
27-37-16-05
ECLASS 15.0
27-37-16-05
