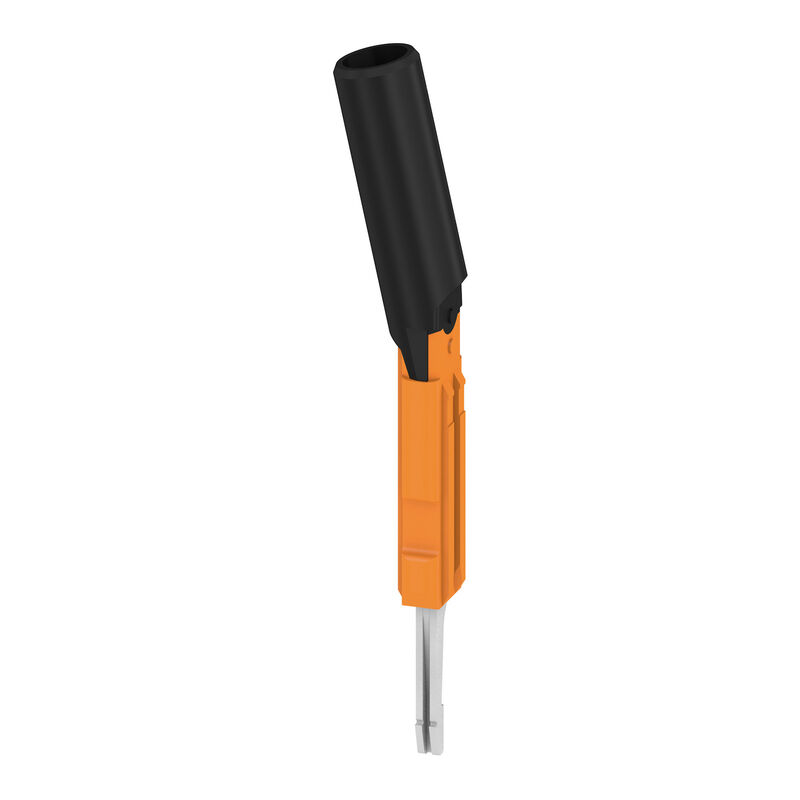

Socket (terminal), Plug-in depth: 11.5 mm, Depth: 51.3 mm

Ürün No. 2710520000
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 21 İlgili ürünler 50
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Additional technical data wymiary General Classifications

Approvals

ROHS
Conform

General ordering data

Version
Socket (terminal), Plug-in depth: 11.5 mm, Depth: 51.3 mm
Order No.
2710520000
Type
TS TTB 6 BK
GTIN (EAN)
4050118881080
Ilość
48 szt.

Dimensions and weights

Depth
51,3 mm
Depth (inches)
2,02 inch
Height
9,4 mm
Height (inches)
0,37 inch
Width
6,3 mm
Width (inches)
0,248 inch
Net weight
1,1 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-60 °C…85 °C
Temperatura d'esercizio continuo, min.
-60 °C
연속 작동 온도, 최대
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
fekete
Klasa palności wg UL 94
V-0

Additional technical data

Explosion-tested version
No
Type of fixing
Plugged
Type of mounting
Plug

wymiary

Глубина вставки
11,5 mm

General

Operating temperature range, max.
130 °C

Classifications

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
