UR20-2AO-UI-ISO-16-DIAG
UR20-2AO-UI-ISO-16-DIAG

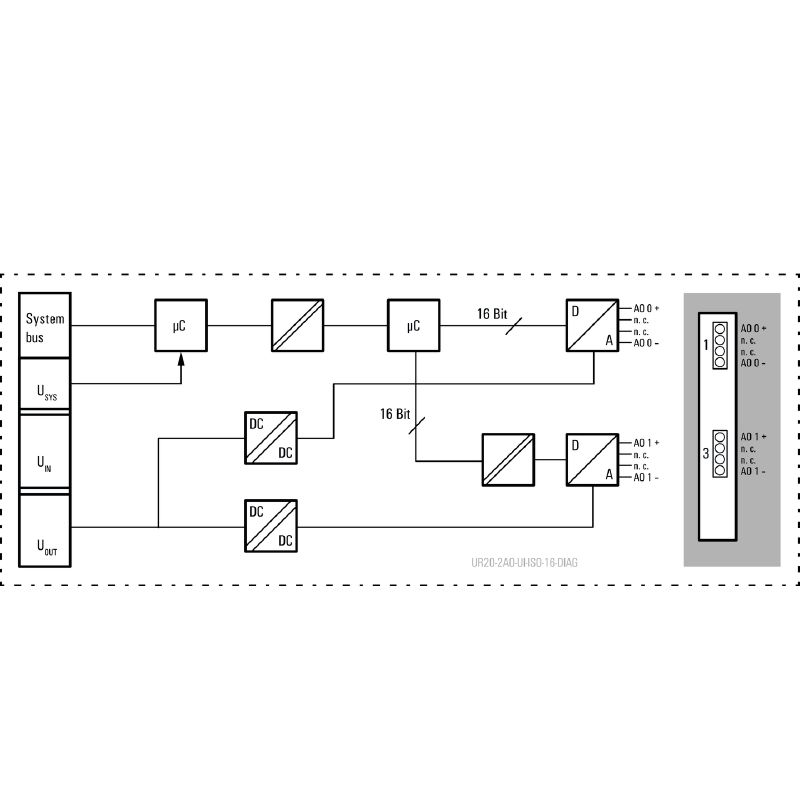

Block diagram
UR20-2AO-UI-ISO-16-DIAG

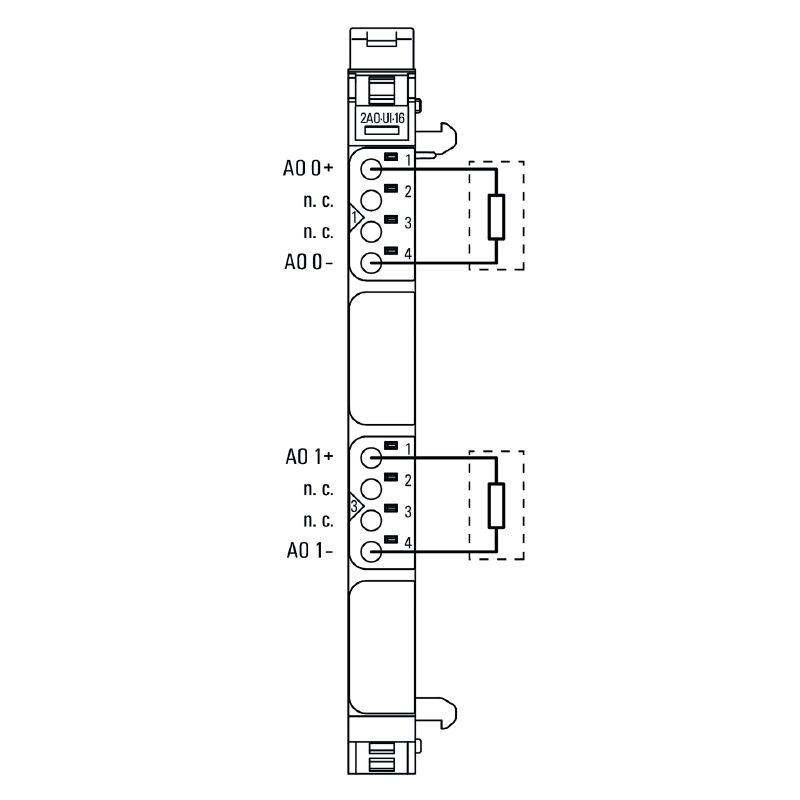

Connection diagram
UR20-2AO-UI-ISO-16-DIAG
Explanation of abbreviations

UR20-2AO-UI-ISO-16-DIAG

Remote I/O module, IP20, Analog signals, Output, 2-channel, Current/Voltage

Produkt ID 2566970000
Åbn i konfiguratoren
Download datablad Engineering-support Software-support Produktdownloads
Tilbehør 12 Reservedele 2 Enkeltdele 2 Anvendte produkter 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance analogue outputs Connection data Caractéristiques générales Power supply Системные данные Product images Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d2e83968-d07b-4c8a-82b2-25cf0c69fee7/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/dde5b188-d0b1-4486-8f22-54b343043814/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/343066b4-2123-4788-b278-3ff01ec50f19/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cULus)
E141197
Zertifikat-Nr. (cULusEX)
E223527

General ordering data

Ausfuehrung
Remote I/O module, IP20, Analog signals, Output, 2-channel, Current/Voltage
Best.-Nr.
2566970000
Art
UR20-2AO-UI-ISO-16-DIAG
GTIN (EAN)
4050118576795
Qty.
1 Styk

Dimensions and weights

Tiefe
76 mm
Depth (inches)
2,992 inch
Höhe
120 mm
Höhe (inch)
4,724 inch
Breite
11,5 mm
Width (inches)
0,453 inch
Net weight
85 g

Temperatures

Lagertemperatur
-40 °C ... +85 °C
Betriebstemperatur
-20 °C...60 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    7,799 kg CO2 eq.

analogue outputs

Accuracy
±0,1 % FSR máx., 0,05 % FSR típ.
Actuator connection
Conducteur double
Cross-talk between the channels in FSR
0,001 %
Individual channel diagnosis
Yes
Load impedance current
<600 Ω
load impedance voltage
≥ 1 kΩ
Max. chyba mezi T min. a T max. ve FSR
0,24 %
Module diagnosis
Yes
Monotonicity
Yes
Number analogue outputs
2
Náhradní hodnoty
Yes
Output variable
Voltage (0...5 V, 0...10 V, 1...5 V, 2...10 V, ±10 V, ±5 V)
Current (0...20 mA or 4...20 mA)
Repeat accuracy
<1 mV eff.
Resolution
16 Bit
Response time
1 ms / 2 channels
Short-circuit-proof
Yes
Temperature coefficient
30 ppm/K

Connection data

Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, min. (AWG)
AWG 26

Caractéristiques générales

Air humidity (operation)
10% - 95%, páralecsapódás nélkül, DIN EN 61131-2 szerint
Air humidity (storage)
Dal 10% al 95%, non condensante come da norma DIN EN 61131-2
Air humidity (transport)
10% ~ 95%, 비응축(DIN EN 61131-2 준수)
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
От 1013 гПа (высота 0 м) до 700 гПа (высота 3000 м) в соответствии с DIN EN 61131-2
Air pressure (transport)
От 1013 гПа (высота 0 м) до 700 гПа (высота 3000 м) в соответствии с DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Surge voltage category
II
Test voltage
500 V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Power supply

Current consumption from IOUT (the respective power segment)
110 mA
Current consumption from Isys, typ.
8 mA
Supply voltage
24 V DC +20 %/ -15 %
via the system bus

Системные данные

Connection type
PUSH IN
Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Analogue output module
Process data
4 Byte
Transmission speed of system bus, max.
48 MBit/s

Product images

Classifications

ETIM 8.0
EC001596
ETIM 9.0
EC001596
ETIM 10.0
EC001596
ECLASS 14.0
27-24-26-01
ECLASS 15.0
27-24-26-01
