Eigenschappen
| Version | Pressing tool, Tool for insulated cable connectors, 0.5mm², 6mm², Oval crimping, Parallel crimp |
| Order No. | 9202850000 |

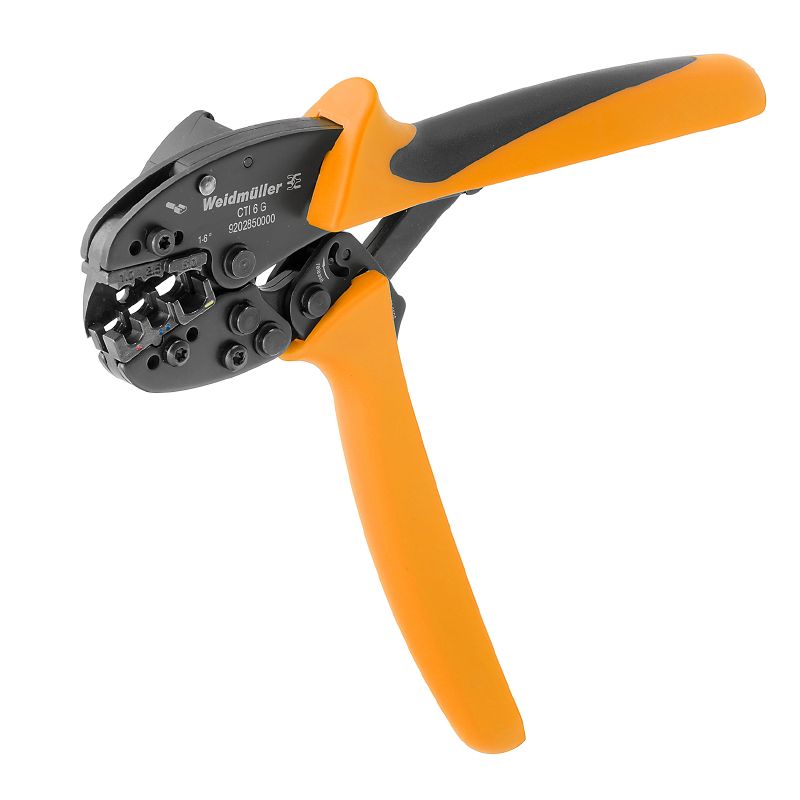

| Type | CTI 6 G |
| GTIN (EAN) | 4032248517855 |
| Qty. | 1 items |
| Width | 250 mm |
| Width (inches) | 9,842 inch |
| Net weight | 689,78 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | Crimping tool for insulated connectors, 0.5-6 mm² |
| Version | Mechanical, without interchangeable inserts |
| Conductor cross-section, max. AWG | AWG 10 |
| Conductor cross-section, min. AWG | AWG 21 |
| Crimping range, max. | 6 mm² |
| Crimping range, min. | 0,5 mm² |
| Type of contact | Insulated connector |
| Crimping station |
|
| Crimping type/profile |
Oval crimping
Parallel crimp |
| Product information | Not suitable for solid conductors. Insulation on the contact is pressed conically. |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101215) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
