Eigenschappen

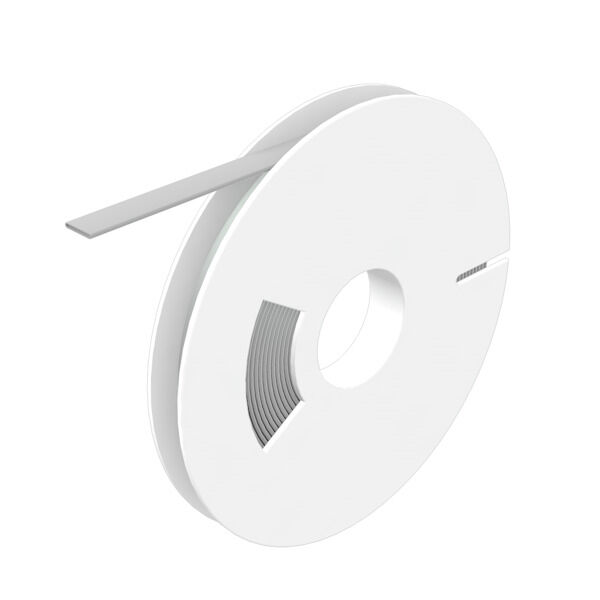

| Version | Conductor and cable markers, 2.1 - 6.4 mm, white |
| Order No. | 1489650000 |
| Type | HSS 2.1-6.4 EL W13M |
| GTIN (EAN) | 4050118299342 |
| Qty. | 1 items |
| Depth | 0,77 mm |
| Depth (inches) | 0,03 inch |
| Width | 10,7 mm |
| Width (inches) | 0,421 inch |
| Length | 13.000 mm |
| Length (inches) | 511,81 inch |
| Net weight | 145 g |
| Operating temperature range | -55...135 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | Yes |
| Length | 13.000 mm |
| Material | Polyolefine |
| Operating temperature range | -55...135 °C |
| Operating temperature range, max. | 135 °C |
| Operating temperature range, min. | -55 °C |
| Printed characters | without |
| Recommended industries |
Plant manufacture
Energy Device manufacturer Machinery |
| Type of printing | neutral |
| Width | 10,7 mm |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Conductor O.D. | 2.1 - 6.4 mm |
| Conductor O.D., max. | 6,4 mm |
| Conductor O.D., min. | 2,1 mm |
| Cross-section for connected wire | 1.5 - 6 mm² |
| Halogen | Yes |
| Rate of shrinkage | 3:1 |
| Recommended shrinking temperature | 90 °C |
| Text field height | 10,5 mm |
| Text field width | 0 mm |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1489650000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E366310 |
