Eigenschappen

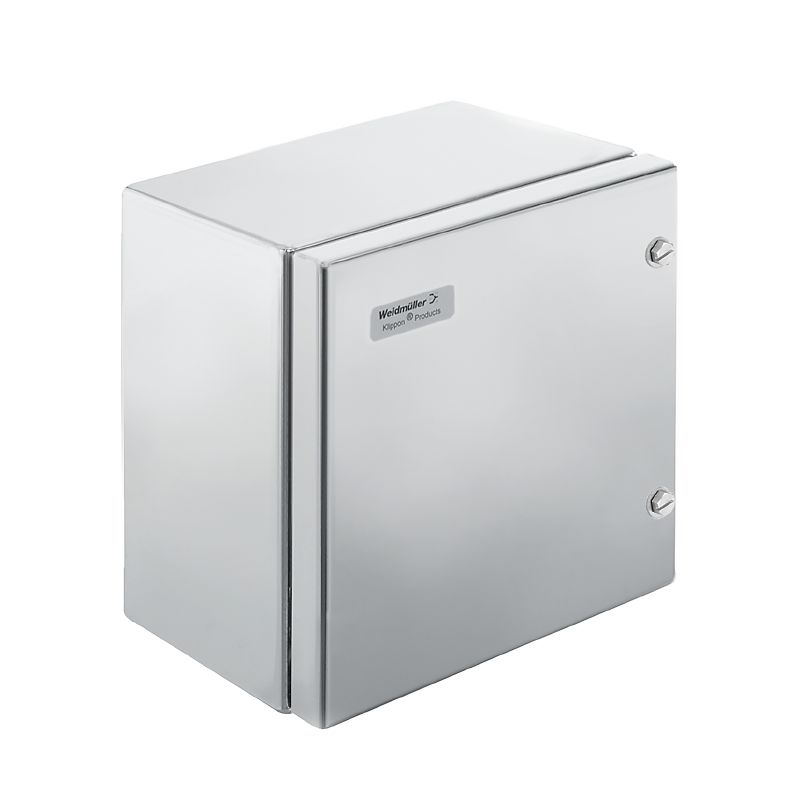

| Version | Klippon EBi HS (Essential Box industrial - Hinged Screws), Enclosures, Height: 200 mm, Width: 200 mm, Depth: 150 mm, Gland plates: Bottom, Material: Stainless steel 1.4301 (304), untreated, silver |
| Order No. | 8000090348 |
| Type | KEBIHS202015S2N1 AL |
| GTIN (EAN) | 4064675855620 |
| Qty. | 1 items |
| Depth | 150 mm |
| Depth (inches) | 5,905 inch |
| Height | 200 mm |
| Height (inches) | 7,874 inch |
| Width | 200 mm |
| Width (inches) | 7,874 inch |
| Net weight | 3.196,289 g |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| M12 | 28 |
| M16 | 15 |
| M20 | 8 |
| M25 | 6 |
| M32 | 6 |
| M40 | 2 |
| M12 | 28 |
| M16 | 15 |
| M20 | 8 |
| M25 | 6 |
| M32 | 6 |
| M40 | 2 |
| M12 | 18 |
| M16 | 10 |
| M20 | 8 |
| M25 | 3 |
| M32 | 2 |
| M40 | 2 |
| Declaration of Conformatiy No. (DoC LVD) | DE PS2650 220428 001ISS00 |
| Enclosure attachment | Installation through the housing rear wall |
| Flange plate | Yes |
| Gland plates | Bottom |
| Impact resistance | 10 J version standard |
| Lid attachment | M5 hexagonal screw with slot and 10mm distance across flats + hinge |
| Material | Stainless steel 1.4301 (304) |
| Material thickness of cover | 1,5 mm |
| Material thickness of enclosure | 1,5 mm |
| Material thickness of flange | 3 mm |
| Note: protection class | IP protection is only given after wall mounting using the enclosed sealing washers. |
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Protection degree | IP66 |
| Seal material | Chloroprene |
| Silicone | No |
| Surface finish | untreated |
| WDU 10 / ZDU 10 | 1x4 |
| WDU 16 / ZDU 16 | 1x3 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x10 |
| WDU 35 / ZDU 35 | 1x2 |
| WDU 4 / ZDU 4 | 1x8 |
| WDU 6 / ZDU 6 | 1x6 |
| WDU 10 / ZDU 10 | 1x13 |
| WDU 16 / ZDU 16 | 1x10 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x26 |
| WDU 35 / ZDU 35 | 1x7 |
| WDU 4 / ZDU 4 | 1x21 |
| WDU 6 / ZDU 6 | 1x16 |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity - Klippon EBi Empty Enclosures - DoC KEBI DE PS2650 220428 001ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_256769) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_255356) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000090348) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| Approvals |  |
| ROHS | Conform |
Toebehoren
-
Product ID:8000074117VPE:1 items
Klippon EB (Essential Box), Mounting plate, Height: 140 mm, Width: 140 mm, Depth: 1.5 mm, Material: Sheet steel, galvanized, silver
-
Product ID:1274150000VPE:1 items
Klippon EB (Essential Box), Mounting screw, Height: 13.3 mm, Width: 8.5 mm, Depth: 8.5 mm, Material: Steel, galvanized, galvanic zinc plated and passivated, silver
-
Product ID:8000074314VPE:1 items
Klippon EB (Essential Box), Mounting plate, Height: 140 mm, Width: 140 mm, Depth: 1.5 mm, Material: Stainless steel 1.4301 (304), untreated, silver
-
Product ID:3896100000VPE:2 items
Klippon EB (Essential Box), Spacer, Height: 11.2 mm, Width: 10 mm, Depth: 15 mm, Material: Steel, silver
-
Product ID:3896200000VPE:2 items
Klippon EB (Essential Box), Spacer, Height: 11.2 mm, Width: 10 mm, Depth: 20 mm, Material: Steel, silver
-
Product ID:3896300000VPE:2 items
Klippon EB (Essential Box), Spacer, Height: 11.2 mm, Width: 10 mm, Depth: 30 mm, Material: Steel, silver
-
Product ID:2749640000VPE:1 items
Mounting tool, Blade width (B): 6.5 mm, Blade length: 150 mm, Blade thickness (A): 1.2 mm
-
Product ID:2704960000VPE:500 items
Klippon TB (Terminal Box), Set of fixings, Height: 11.3 mm, Width: 13.6 mm, Depth: 13.6 mm, Material: Stainless steel, rust-proof, untreated, silver
-
Product ID:8000075818VPE:1 items
Klippon EB (Essential Box), Enclosures, Riveted, Height: 25 mm, Width: 141 mm, Depth: 16.5 mm, Material: Stainless steel 1.4404 (316L), Brushed, silver
-
Product ID:8000075816VPE:1 items
Klippon EB (Essential Box), Enclosures, Riveted, Height: 50 mm, Width: 171 mm, Depth: 16.5 mm, Material: Stainless steel 1.4404 (316L), Brushed, silver
-
Product ID:2660200318VPE:1 items
Klippon EB (Essential Box), Mounting foot, Height: 38 mm, Width: 55 mm, Depth: 10.5 mm, Material: Steel, untreated, silver
