Eigenschappen

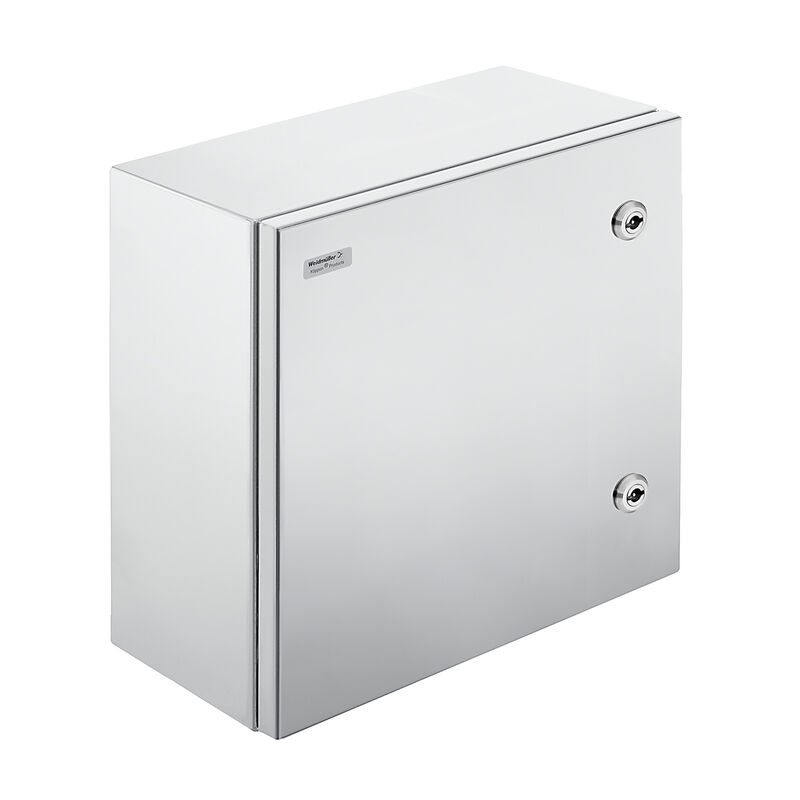

| Version | Klippon EBi QL (Essential Box industrial - Quarter Lock), Enclosures, Height: 400 mm, Width: 400 mm, Depth: 200 mm, Material: Stainless steel 1.4301 (304), untreated, silver |
| Order No. | 8000090360 |
| Type | KEBIQL404020S2N0 AL |
| GTIN (EAN) | 4064675855736 |
| Qty. | 1 items |
| Depth | 200 mm |
| Depth (inches) | 7,874 inch |
| Height | 400 mm |
| Height (inches) | 15,748 inch |
| Width | 400 mm |
| Width (inches) | 15,748 inch |
| Net weight | 8.378,422 g |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| M12 | 96 |
| M16 | 65 |
| M20 | 40 |
| M25 | 24 |
| M32 | 21 |
| M40 | 10 |
| M50 | 4 |
| M63 | 3 |
| M12 | 96 |
| M16 | 65 |
| M20 | 40 |
| M25 | 24 |
| M32 | 21 |
| M40 | 10 |
| M50 | 4 |
| M63 | 3 |
| M12 | 80 |
| M16 | 48 |
| M20 | 30 |
| M25 | 24 |
| M32 | 12 |
| M40 | 10 |
| M50 | 4 |
| M63 | 3 |
| Declaration of Conformatiy No. (DoC LVD) | DE PS2650 220428 001ISS00 |
| Enclosure attachment | Installation through the housing rear wall |
| Flange plate | No |
| Impact resistance | 10 J version standard |
| Lid attachment | Quarter-turn fastener with double-bit insert |
| Material | Stainless steel 1.4301 (304) |
| Material thickness of cover | 1,5 mm |
| Material thickness of enclosure | 1,5 mm |
| Note: protection class | IP protection is only given after wall mounting using the enclosed sealing washers. |
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| Protection degree | IP66 |
| Seal material | Chloroprene |
| Silicone | No |
| Surface finish | untreated |
| WDU 10 / ZDU 10 | 2x30 |
| WDU 16 / ZDU 16 | 2x24 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 3x59 |
| WDU 35 / ZDU 35 | 1x18 |
| WDU 4 / ZDU 4 | 3x49 |
| WDU 6 / ZDU 6 | 2x37 |
| WDU 10 / ZDU 10 | 2x30 |
| WDU 16 / ZDU 16 | 2x24 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 3x59 |
| WDU 35 / ZDU 35 | 1x18 |
| WDU 4 / ZDU 4 | 3x49 |
| WDU 6 / ZDU 6 | 2x37 |
| Approval/Certificate/Document of Conformity | [EU Declaration of Conformity - Klippon EBi Empty Enclosures - DoC KEBI DE PS2650 220428 001ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_256769) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_255366) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000090360) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| Approvals |  |
| ROHS | Conform |
