Eigenschappen

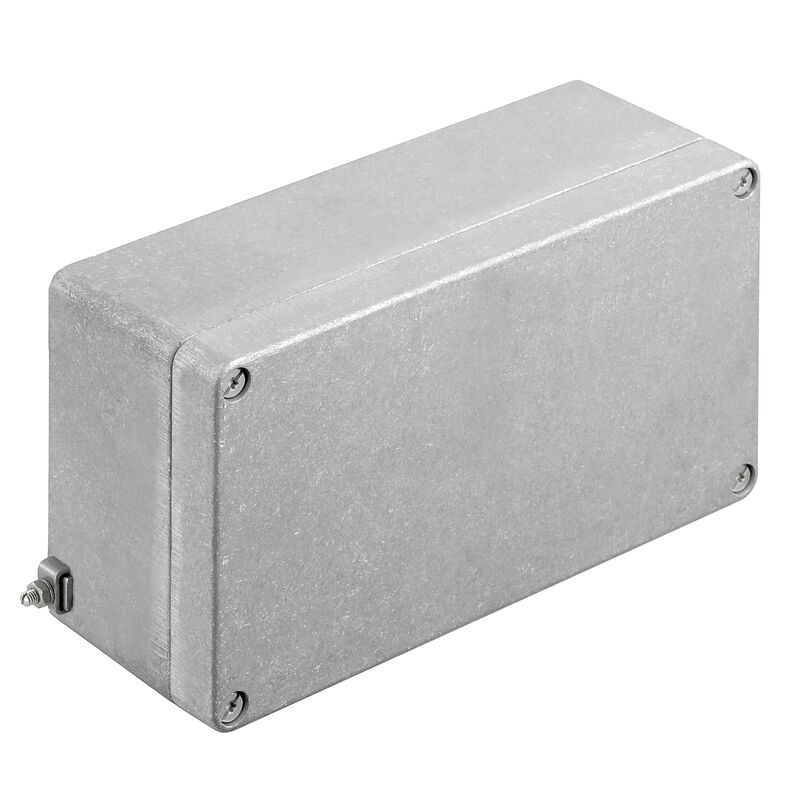

| Version | Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 120 mm, Width: 220 mm, Depth: 81 mm, Material: Aluminium AlSi12, untreated, silver |
| Order No. | 9526940000 |
| Type | KLIPPON K51 EX |
| GTIN (EAN) | 4008190979089 |
| Qty. | 1 items |
| Depth | 81 mm |
| Depth (inches) | 3,189 inch |
| Height | 120 mm |
| Height (inches) | 4,724 inch |
| Width | 220 mm |
| Width (inches) | 8,661 inch |

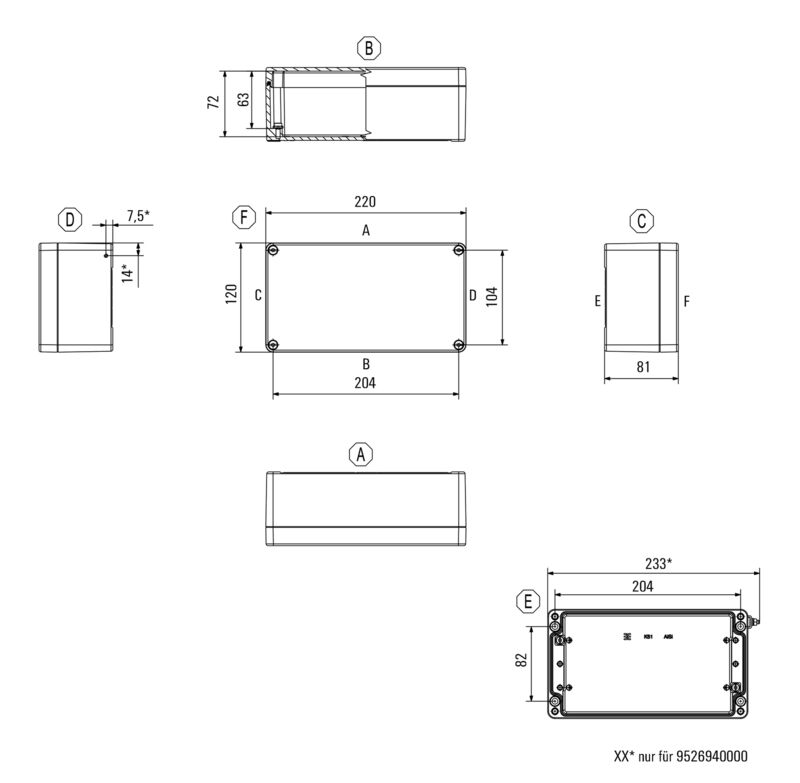

| Mounting dimension - height | 82 mm |
| Mounting dimension - width | 204 mm |
| Net weight | 1.428 g |
| Operating temperature | -60 °C...135 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6bI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 9e4cab4e-239c-4e14-b9df-a0fee300d28a |
| M12 | 6 |
| M16 | 3 |
| M20 | 2 |
| M25 | 1 |
| M32 | 1 |
| M12 | 6 |
| M16 | 3 |
| M20 | 2 |
| M25 | 1 |
| M32 | 1 |
| M12 | 23 |
| M16 | 14 |
| M20 | 8 |
| M25 | 5 |
| M32 | 3 |
| M40 | 3 |
| Approval conditions |
DNV
GL RMRS ATEX IECEX UL AEx Class Div. CCC INMETRO |
| Attestation of Conformatiy No. (AoC) | DE PS2410 160308 001ISS03 |
| Certificate No. (ATEX) | IBEXU12ATEX1144U |
| Certificate No. (DNV) | TAE00002SM |
| Certificate No. (IECEX) | IECEXIBE13.0001U |
| Certificate no. empty enclosure (ATEX) | IBExU12ATEX1144 U |
| Certificate no. empty enclosure (IECEx) | IECEx IBE 13.0001U |
| Certificate no. empty enclosure (INMETRO) | LMP 23.0526U |
| Certificate no. Terminal Box (ATEX) | IBExU12ATEX1145 X |
| Certificate no. Terminal Box (IECEx) | IECEx IBE 13.0002X |
| Certificate no. Terminal Box (INMETRO) | LMP 23.0527X |
| Declaration of Conformatiy No. (DoC LVD) | DE PS2410 160412 001ISS03 |
| Access opening: height | 111 mm |
| Access opening: width | 211 mm |
| Areas of use |
Explosive risk zone
Process industry Transportation Packaging industry Marine engineering Machine construction Harbour facilities |
| Enclosure attachment | Holes 6 mm |
| Flange plate | No |
| Impact resistance | 7 J ATEX version |
| Integral fixing | Threaded holes M5 |
| Lid | Yes |
| Lid attachment | M6 torx stainless steel screws with slot |
| Material | Aluminium AlSi12 |
| Material thickness of cover | 4 mm |
| Material thickness of enclosure | 4,5 mm |
| Number of lid screws | 4 |
| Operating temperature, max. | 135 °C |
| Operating temperature, min. | -60 °C |
| Protection degree |
IP66
IP67 |
| Seal material | Silicone |
| Standards |
IEC 60079-0
IEC 60079-7 IEC 60079-31 EN 45545-2:2013 |
| Surface finish | untreated |
| Torque for lid screws | 2,5 Nm |
| WDU 10 / ZDU 10 | 1x16 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x31 |
| WDU 4 / ZDU 4 | 1x26 |
| WDU 6 / ZDU 6 | 1x19 |
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | * |
| WDU 4 / ZDU 4 | * |
| Approval/Certificate/Document of Conformity |
[CCC 2020322303000040 Klippon K Assembly Enclosure](https://mdcop.weidmueller.com/mediadelivery/asset/900_177320)
[UKCA TÜV 22 UKEX 7094 U](https://mdcop.weidmueller.com/mediadelivery/asset/900_263772) [INMETRO CERTIFICADO LMP 23.0526U - INVÓLUCROS VAZIOS Empty Enclosure KLIPPON K](https://mdcop.weidmueller.com/mediadelivery/asset/900_302046) [EU Declaration of Conformity - Klippon K Empty Enclosures - DoC DE PS2410 160412 001ISS03](https://mdcop.weidmueller.com/mediadelivery/asset/900_40371) [EU Declaration of Conformity - Klippon K Terminal Box - DoC DE PS270X 160308 002ISS03](https://mdcop.weidmueller.com/mediadelivery/asset/900_250959) [UKCA Declaration of Conformity - Klippon K Empty Enclosures - UKCA DE PS2410 220623 001ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319946) [DoM Klippon K salt water resistance](https://mdcop.weidmueller.com/mediadelivery/asset/900_164817) [DoM Klippon K EN 45545-2 2013 Railway](https://mdcop.weidmueller.com/mediadelivery/asset/900_164818) [UKCA TÜV 22 UKEX 7095 X](https://mdcop.weidmueller.com/mediadelivery/asset/900_263773) [Attestation of Conformity - Klippon K Empty Enclosures - AoC DE PS2410 160308 001ISS03](https://mdcop.weidmueller.com/mediadelivery/asset/900_40360) [UKCA Attestation of Conformity - Klippon K Empty Enclosures - UKCA DE PS2410 220623 000ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319943) [IBEXU12ATEX1145X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157739) [IECEXIBE13.0001U](https://mdcop.weidmueller.com/mediadelivery/asset/900_157740) [IECEXIBE13.0002X](https://mdcop.weidmueller.com/mediadelivery/asset/900_157741) [TAE00002SM](https://mdcop.weidmueller.com/mediadelivery/asset/900_157742) [IBEXU12ATEX1144U](https://mdcop.weidmueller.com/mediadelivery/asset/900_157744) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55548) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9526940000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9526940000) |
| Product Change Notification |
[Technical change to Klippon K® enclosure series](https://mdcop.weidmueller.com/mediadelivery/asset/900_296438)
[Technische Änderung für Klippon® K Gehäuse](https://mdcop.weidmueller.com/mediadelivery/asset/900_296439) [20240315-PCN-Klippon K Enclosure Instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_315588) |
| Tender specification |
[Klippon K51 Ex_9526940000_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_56473)
[Klippon K51 Ex_9526940000_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_56583) |
| User Documentation | [Assembly guidelines - empty enclosures](https://mdcop.weidmueller.com/mediadelivery/asset/900_40381) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB OVERV. PROCESS WD DE](http://download.weidmueller.com/asset/download/file/40063)
[MB KLIPPON ENCL.TECN EN](http://download.weidmueller.com/asset/download/file/39472) [MB PROCESS EN](http://download.weidmueller.com/asset/download/file/38262) [FL RAILWAY 2014 EN](http://download.weidmueller.com/asset/download/file/38215) [FL RAILWAY 2014 EN](http://download.weidmueller.com/asset/download/file/38215) |
| ETIM 6.0 | EC002503 |
| ETIM 7.0 | EC002503 |
| ETIM 8.0 | EC002503 |
| ETIM 9.0 | EC002503 |
| ECLASS 9.0 | 27-18-05-02 |
| ECLASS 9.1 | 27-18-05-02 |
| ECLASS 10.0 | 27-18-05-02 |
| ECLASS 11.0 | 27-18-05-02 |
| ECLASS 12.0 | 27-18-05-02 |
| ECLASS 13.0 | 27-18-05-02 |
| ECLASS 14.0 | 27-18-05-02 |
| Approvals |     |
| ROHS | Conform |
