Eigenschappen
| Version | Field Power® sealing insert, Seal, IP54, with corresponding enclosure, EPDM |
| Order No. | 1114530000 |

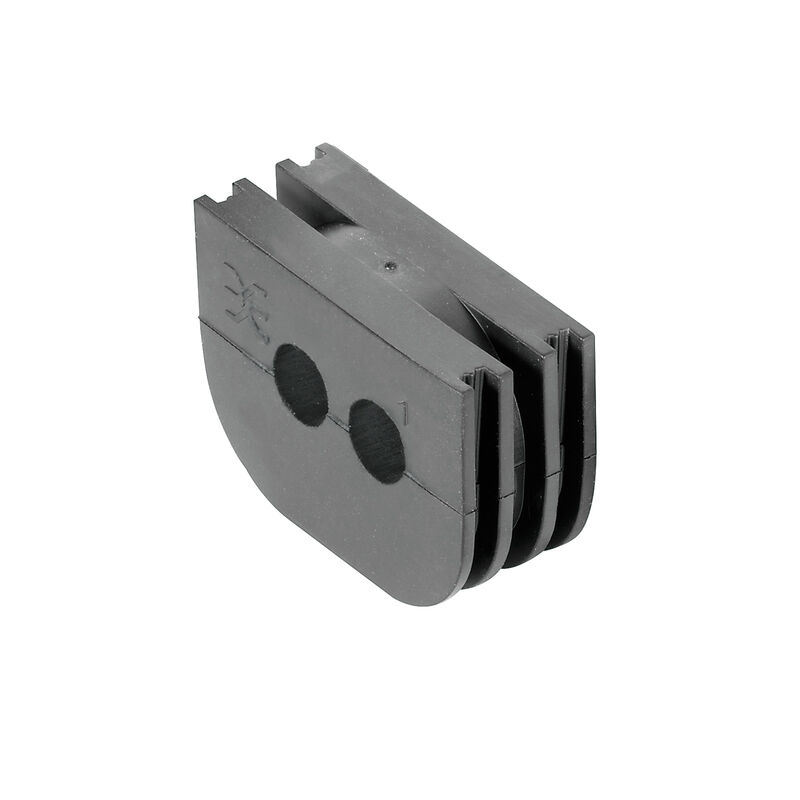

| Type | RKDG 2XD8.5 WG PT6 |
| GTIN (EAN) | 4032248892624 |
| Qty. | 10 items |
| Depth | 18 mm |
| Depth (inches) | 0,709 inch |
| Height | 33,8 mm |
| Height (inches) | 1,331 inch |
| Width | 46,7 mm |
| Width (inches) | 1,839 inch |
| Net weight | 2,6 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | EPDM |
| Silicone | No |
| Colour | black |
| Design | Seal |
| Protection degree |
IP54
with corresponding enclosure |
| UL 94 flammability rating | HB |
| Mounting position, installation notice | in FieldPower® sealing slot |
| Line type | round |
| Outer cable diameter, min. | 8,5 mm |
| Outer cable diameter, max. | 10,5 mm |
| Approval/Certificate/Document of Conformity | [Manufacturer's Declaration FieldPower® Enclosure parts](https://mdcop.weidmueller.com/mediadelivery/asset/900_263559) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60425) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1114530000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002624 |
| ETIM 7.0 | EC002624 |
| ETIM 8.0 | EC002624 |
| ETIM 9.0 | EC002624 |
| ECLASS 9.1 | 27-18-27-90 |
| ECLASS 10.0 | 27-18-28-15 |
| ECLASS 11.0 | 27-18-28-15 |
| ECLASS 12.0 | 27-18-28-15 |
| ECLASS 13.0 | 27-18-28-15 |
| ECLASS 14.0 | 27-18-28-15 |
| ROHS | Conform |
