SAIL-M12WM12W-5-5.0V
SAIL-M12WM12W-5-5.0V
Dimensioned drawing
Male, angled
SAIL-M12WM12W-5-5.0V
Dimensioned drawing
Angled socket
SAIL-M12WM12W-5-5.0V
Pole scheme
M12 = A-coded
SAIL-M12WM12W-5-5.0V
Pole scheme
M12 = A-coded
SAIL-M12WM12W-5-5.0V
Wiring diagram

SAIL-M12WM12W-5-5.0V

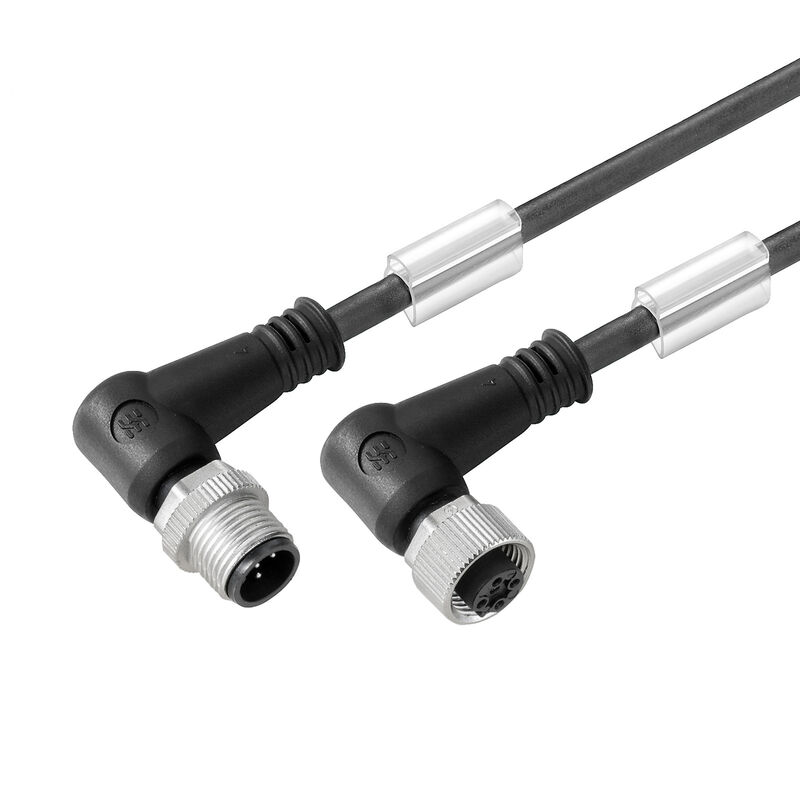

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 5 m, pin, 90° - socket 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Tuotteen tunnus 1925400500
Lataa tietosivu Nedladdningar av produkter Engineering Support
Lisävarusteet 6 Samankaltaiset tuotteet 4
Approvals General ordering data 치수 및 중량 Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Obrázky produktů Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[Web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 5, 5 m, pin, 90° - socket 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1925400500
Type
SAIL-M12WM12W-5-5.0V
GTIN (EAN)
4032248570034
Množství
1 ks

치수 및 중량

순중량
234,08 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Colour coding
brown
white
blue
black
grey
Configurable cable length
No
Długość kabla
5 m
Halogen
Yes
Hybrid cable
No
Insulation
PVC
Irradiation crosslinked
No
Ledararea
0,34 mm²
Number of poles
5
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Outside diameter
5.7 mm ± 0.1 mm
Resistant to welding beads
No
Sheath material
PVC
Shielded
No
Temperature range, moving
-5...80 °C
Temperature range, stationary
-30...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No
Возможно использование с троссом для протяжки
No
Цвет оболочки
black

General technical data

AF size
12 mm
Coding
A-coded
Connection thread
M12 / M12
Contact material
CuZn35PB2
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, 90° - socket 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

다음 규격에 따른 충격 및 진동 보호:
Section B
커넥터 표준
IEC 61076-2-101

Plug, left

Plug left
connector, M12, A-coded, Number of poles: 5, male contact, angled 0°, unshielded

Plug, right

Plug right
connector, M12, A-coded, Number of poles: 5, female contact, angled 0°, unshielded

Obrázky produktů

Bildüberschrift-08
La herramienta perfecta: Screwty ® con función de par de apriete
Légende 08
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
