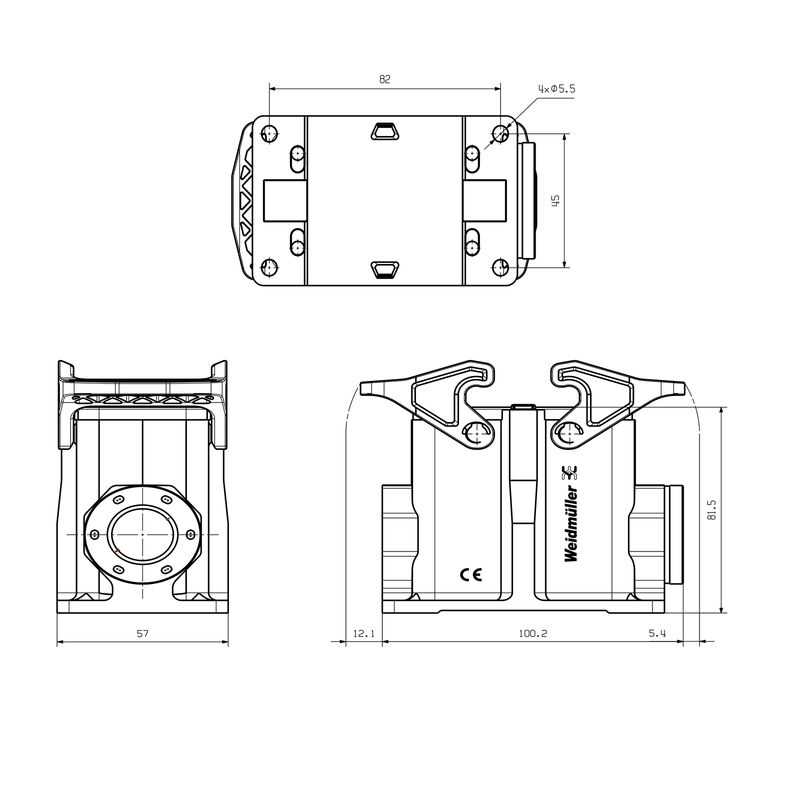

Drawing

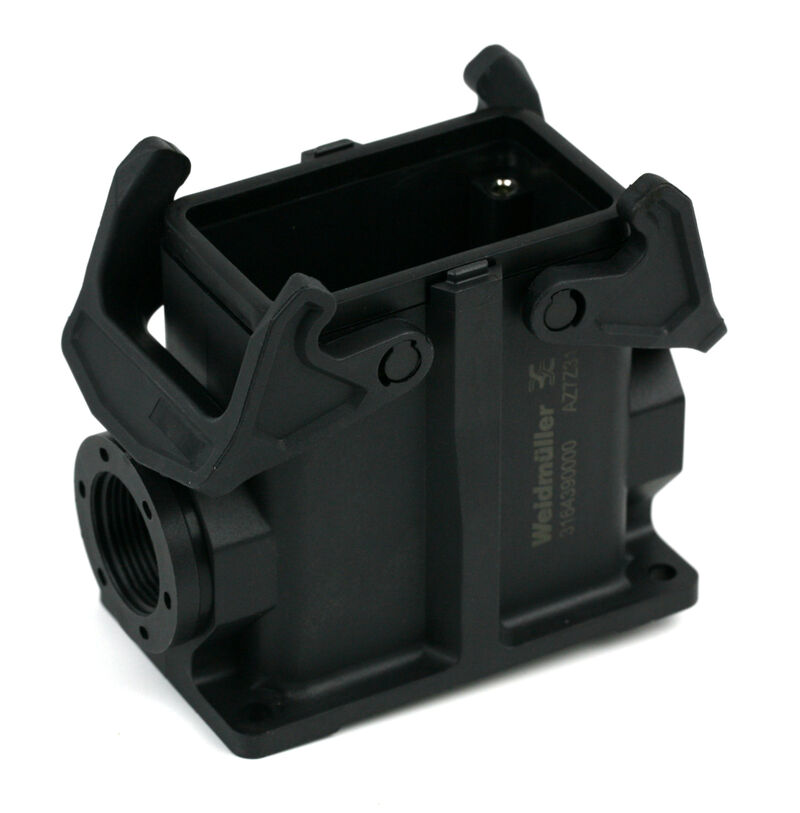

HDC 10B SBU 1M25 BP

HDC enclosures, Installation size: 4, Protection degree: IP65, in plugged condition, Base housing, Side-locking clamp on lower side, Standard, Size of cable entries: 1*M25, M 25, M 32

Produkt ID 3164390000
Download datablad Engineering-support
Tilbehør 7 Er tilbehør til 4 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 4, Protection degree: IP65, in plugged condition, Base housing, Side-locking clamp on lower side, Standard, Size of cable entries: 1*M25, M 25, M 32
Order No.
3164390000
Type
HDC 10B SBU 1M25 BP
GTIN (EAN)
4099987800648
Qty.
1 Styk

Dimensions and weights

Depth
100,02 mm
Depth (inches)
3,938 inch
Height
81,5 mm
Height (inches)
3,209 inch
Width
57 mm
Width (inches)
2,244 inch
Length
100,02 mm
Length (inches)
3,938 inch
Net weight
235 g

Temperatures

Ambient temperature
-40 °C…125 °C
Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Entrata cavo
w. thread
총 길이 하우징
100,02 mm

General data

Protection degree
IP65
in plugged condition
UL 94 flammability rating
V-0
Поверхность
untreated

Version

BG
4
Clamp version
Side-locking clamp
Colour (RAL)
RAL 9005
Cover
without cover
Design
Standard
Design of housing
Base housing
Design of locking system
Side-locking clamp on lower side
Installation size
4
Junta
NBR
Kabelový vstup
w. thread
Number of cable entry on top
0
Number of cable entry sideways
1
Size of cable entries
1*M25
M 25
M 32
Suitable for ModuPlug®
Yes
Top part/bottom part/lid
lower part
Tuerca (externa)
M 25
Tuercas (internas)
M 25
Typ
Base housing
Type of connection
Heavy-duty connector

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
